IEC Standard 210kn Glass Insulator

A 210kN glass insulator is a toughened glass suspension insulator rated for 210kN mechanical load, manufactured according to IEC standards for high-voltage transmission lines.

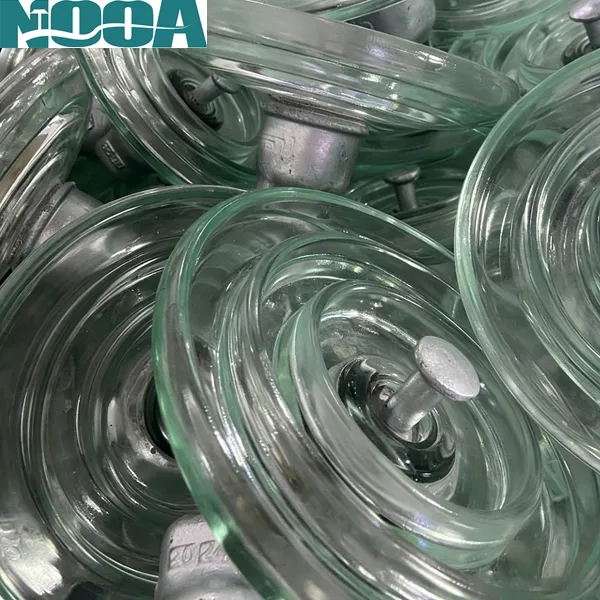

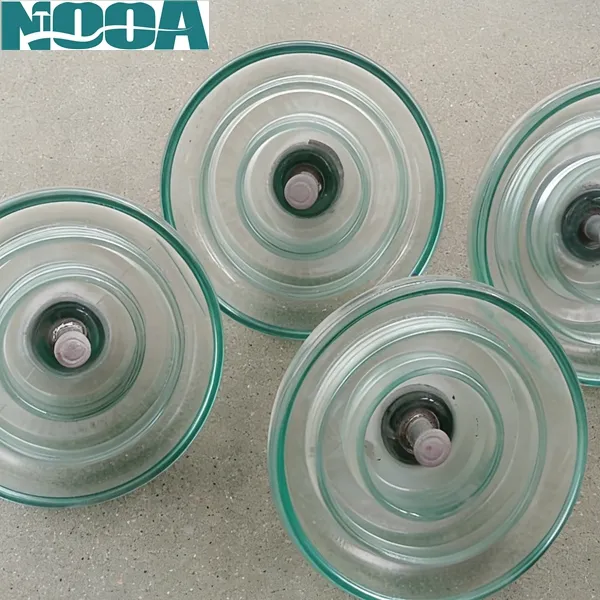

An IEC 210kN glass insulator refers to a toughened (tempered) glass disc insulator designed to withstand a specified mechanical failing load (SFL) of 210kN. These insulators are widely used in HV and EHV transmission lines, especially in applications where high tensile strength and durability are required.

Typically, they follow standards such as:

• IEC 60383 (for insulator units)

• IEC 61109 (for composite alternatives comparison)

• IEC 60815 (pollution performance reference)

The structure generally includes:

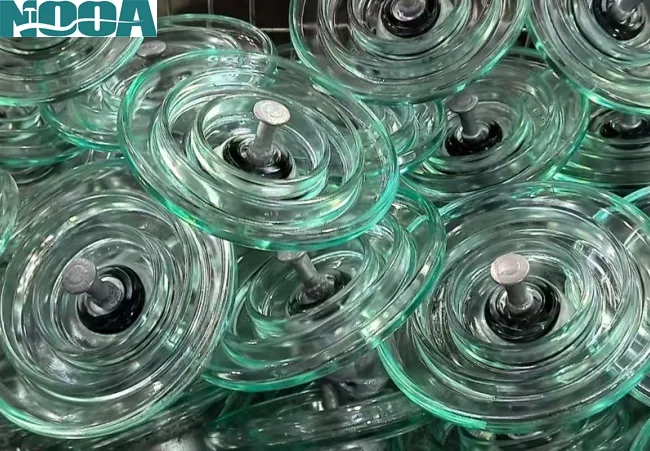

• Toughened glass shell

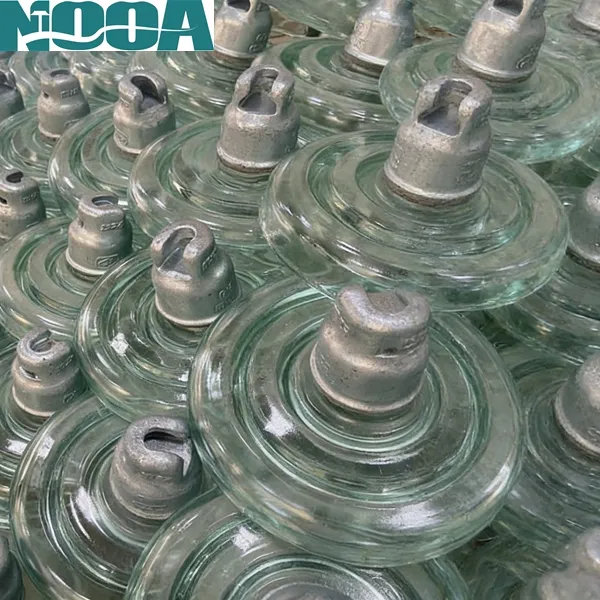

• Metal cap and pin (ball & socket coupling)

• Cement bonding

Core parameters include mechanical strength, creepage distance, coupling type, and electrical performance.

• Rated Mechanical Load: 210kN

• Diameter: ~280–300 mm

• Spacing: ~170–195 mm

• Creepage Distance: 450–550 mm (depending on anti-pollution design)

• Coupling Type: Ball & Socket (IEC standard)

• Material: Toughened glass

• Application Voltage Range: 220kV to 500kV transmission lines

For procurement engineers, creepage distance and mechanical rating are the two most critical selection parameters.

High mechanical strength, self-cleaning surface, easy inspection, and long service life.

Compared with porcelain and polymer alternatives, 210kN glass insulators offer:

1. High Mechanical Strength

Ideal for:

• Long-span transmission lines

• Heavy wind and ice load areas

2. Self-Shattering Feature (Safety Advantage)

When damaged, the glass disc shatters visibly, allowing:

• Easy fault detection

• Reduced inspection costs

3. Superior Surface Performance

• Smooth glass surface resists contamination

• Natural washing by rain reduces maintenance

4. Long-Term Stability

• No aging issues like polymer

• Stable performance over decades

Used in high-voltage, long-span, and harsh environmental transmission systems.

210kN glass insulators are commonly used in:

• 220kV / 330kV / 500kV transmission lines

• Mountain and long-span crossings

• Heavy ice or high wind regions

• Polluted or coastal environments (with extended creepage design)

For EPC contractors, these disc insulators are preferred where mechanical reliability is a priority over lightweight alternatives.

Focus on mechanical load, creepage distance, environmental conditions, and glass insulators supplier quality.

When selecting a 210kN glass insulator, decision-makers should evaluate:

1. Mechanical Requirements

• Confirm load calculations for line tension

• Ensure 210kN rating meets project safety margin

2. Environmental Conditions

• Pollution level → choose higher creepage

• Coastal/desert → anti-pollution profile

3. Standard Compliance

• IEC certification

• Factory test reports (routine + type tests)

• ISO

4. Supplier Capability

• Manufacturing experience

• Quality control system

• Export project references

Glass insulators production includes glass toughening, assembly, and strict mechanical/electrical testing.

A reliable toughened glass insulator manufacturer like Nooa Electric ensures:

Key Processes:

• Glass melting and molding

• Thermal toughening

• Cap & pin assembly

• Cement curing

Quality Tests:

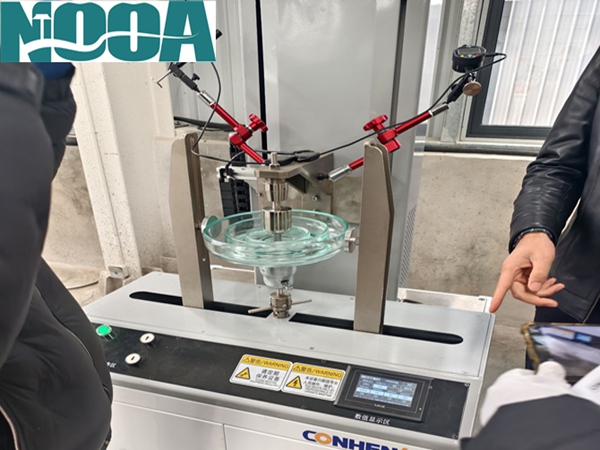

• Mechanical tensile test

• Thermal shock test

• Power frequency withstand test

• Visual inspection (self-shattering verification)

For glass insulators buyers, always request:

• Type test reports

• Routine test records

• Batch traceability

1. What does 210kN mean in glass insulators?

It refers to the mechanical failing load, meaning the insulator can withstand up to 210kN tension before failure.

2. What voltage level uses 210kN insulators?

Typically used in 220kV to 500kV transmission lines, depending on system design.

3. Are glass insulators better than polymer insulators?

Yes, Glass insulators offer:

• Better long-term stability

• Easier inspection

• Higher reliability in harsh environments

4.  What standards should a nooa 210kN insulator meet?

• IEC 60383

• IEC 60815 (for pollution conditions)
