400 kV Single Suspension Fitting with Drop Clamp is an advanced component used in high-voltage power transmission systems, specifically designed to handle 400 kV transmission lines. This fitting serves the dual purpose of suspending conductors and ensuring their secure attachment to the supporting tower or pole. It is often used for long-distance transmission lines where high-voltage electricity is carried over substantial distances.
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ

Key Features:

Voltage Rating: Rated for 400 kV, designed to handle the electrical stress of high-voltage transmission.
Single Suspension Design: This fitting supports the conductor from a single point, which helps to maintain a balanced and stable configuration on the transmission tower.
Drop Clamp: The drop clamp is a crucial part of the suspension system, providing the mechanical connection that allows for proper alignment and secure attachment of the conductor. The clamp ensures the conductor is firmly held in place.
Material Construction: Typically made from durable materials such as galvanized steel or aluminum alloy, providing high corrosion resistance and strength, even in harsh weather conditions.
Mechanical Strength: Engineered to withstand high mechanical loads caused by wind, ice, conductor tension, and temperature variations.
Insulating Properties: May include integrated insulators or an insulative coating to prevent electrical faults and ensure the safety of the system.
Easy Installation: Designed to simplify installation while ensuring long-term stability and reliability, minimizing the need for ongoing maintenance.

Applications:

High Voltage Transmission Lines: This fitting is used in 400 kV transmission lines, which are typically part of major grid infrastructure for long-distance and high-capacity power transmission.
Overhead Power Lines: It is a critical component in overhead transmission lines, where it provides support for the conductors and maintains safe distances between them and the transmission towers.
Utility Networks: Widely used in national or regional power grids to maintain stable and safe electricity flow over vast distances.

Benefits:

Improved Conductor Stability: The drop clamp ensures that the conductor stays securely in place under high tension, even during adverse weather.
Enhanced Safety: The fitting minimizes the risk of electrical faults or short circuits by keeping the conductor properly aligned and isolated from other structures.
Longevity: The robust materials and design enhance the lifespan of the suspension system, reducing the need for frequent replacements.

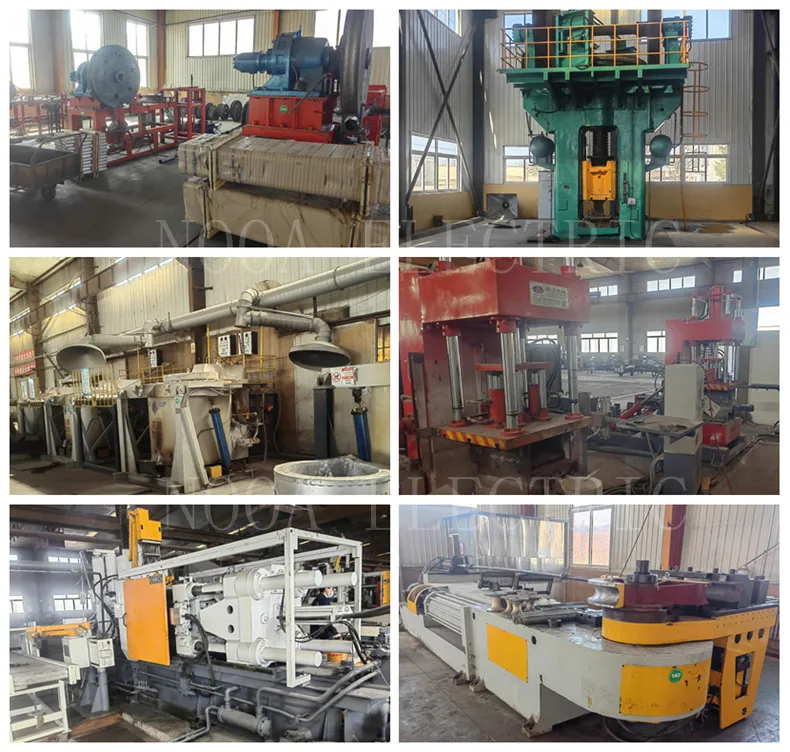

132 kv Single Tension Hardware Fitting for Substation Equipments

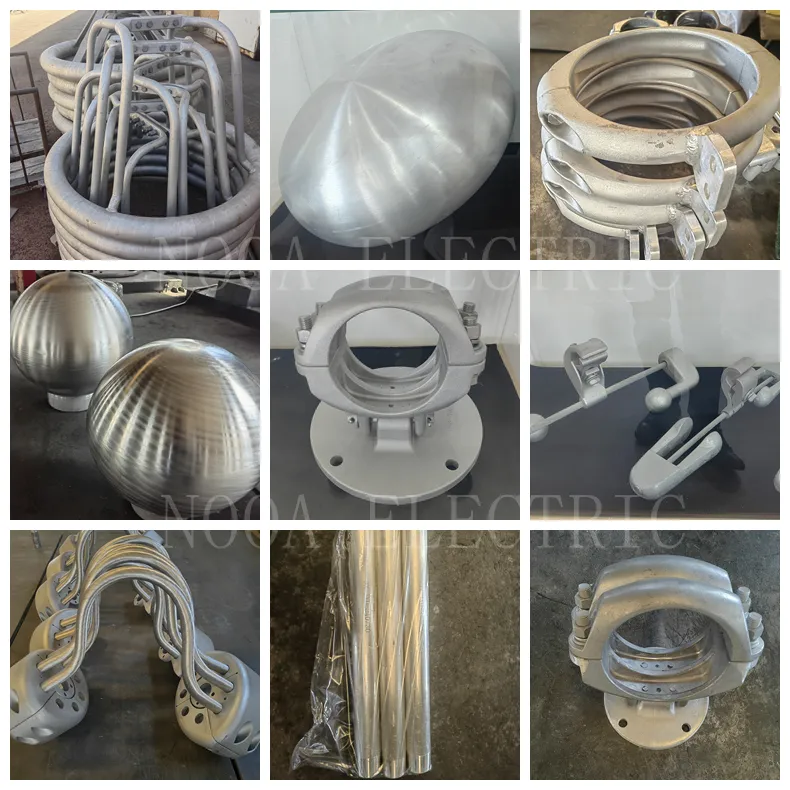

insulator hardware fittings types

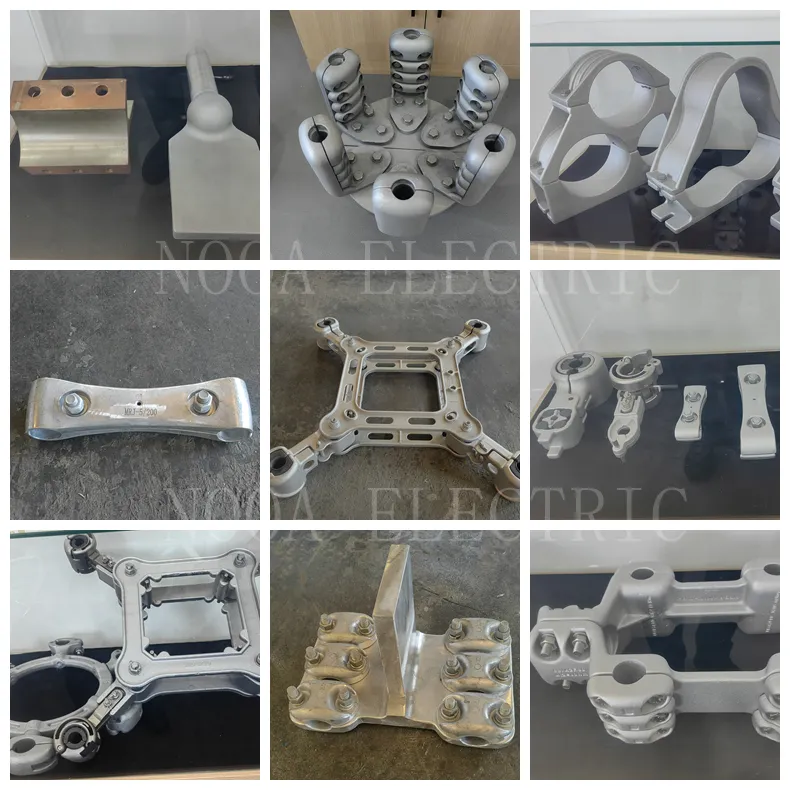

insulator hardware fittings specifiction

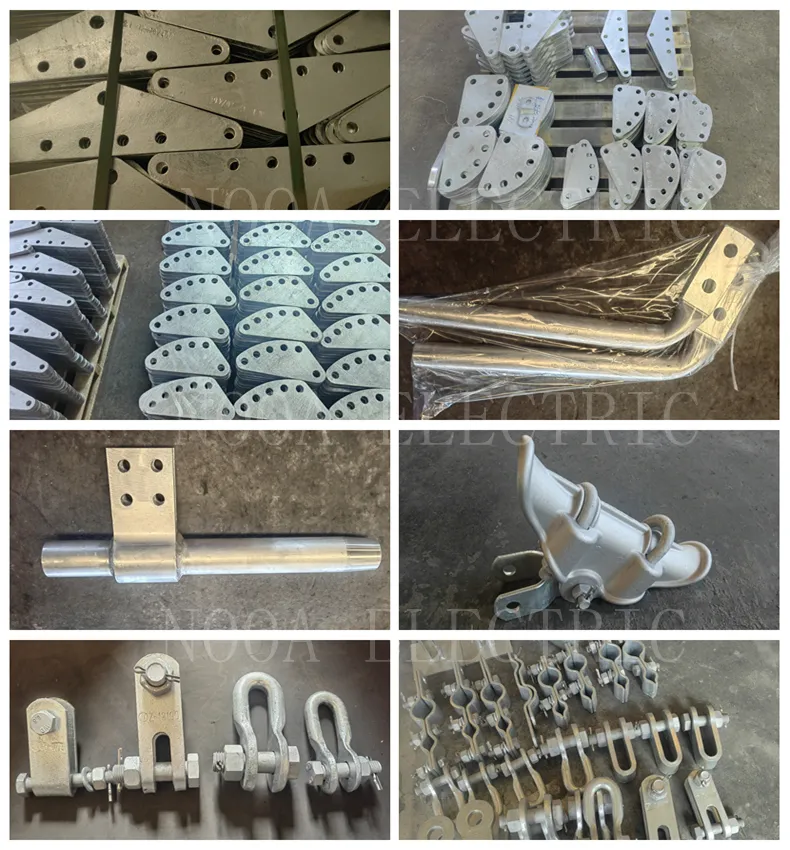

insulator hardware fittings

Company profile

Who We Are?

Nooa Electric Co., Ltd. - Chinese professional electrical insulators manufacturer with 21+ experience, covering an area of 70,000 square meters, and construction area is 50,000 square meters. There are more than 200 employees, including 25 technicians. The production capacity 3500000 pieces per year, and now setting up the new kiln and lines up to 10500000 pieces per year. We have been specialized in research and development of latest high-strength functional glass and power transmission insulators, which is the qualified supplier for State Grid Corporation of China and Southern State Grid Corporation of China, and is a participating unit of product standard formulation of the national electrical insulator standard committee.


What We Have?

Certificates & Reports: INTERTK, SGS, BV Certificates,Type Test Certificate.

Main Electric Insulators : Standard-type glass insulator (u40(ctv175)/u70(ctv254, ps70e)/u120/u160/u210/u300) , antipollution-type glass insulators (u120bp/u160bsp/u210bp), aerodynamic type glass electrical insulators (ug70bsa/u100bsa/u120bla), multi-umbrella type electric insulators, ground-wires type glass power line insulators (u70cn/u100cn/u120c), post insulator for line, pin glass insulator. Products are mainly used for transmission line insulation, suspension, support, tension conductors. They are divided into 5 major series: The standard type glass insulator 40-550kn, filth-resistant type glass insulators 70-420kn, aerodynamic type glass electrical insulators 120-300kn, multi-umbrella type electric insulators 120-300kn, and ground circuit type high voltage insulators, able to be used for line voltage from 10kv～1000kv.


Core Technology:

Automation Equipment: Siemens fully automatic feeding, stamping, temperature equalization, tempering, hot and cold shock control system.
Independent Product Model: U160BP/146/380/450, U160BP/155/380/450, U210BP/170/420/550 and U300BP/195/420/550.
Advanced Klin: Germany's new generation kiln control system, equipped with brand-new sensors and actuators, and equipped with a high-precision automatic batching system.
Qualification: Passed the quality, environment and occupational health system certification and obtained a number of invention patents.


Goal:

To be the world's largest glass insulators manufacturer.

Electric Insulators Certificates

Are u the electric insulators factory or trading company?
China Leading Electric Insulators Factory founded in 2002
What're your main power insulators?
Powerline Electric Insulators (glass insulators, porcelain insulators, composite insulators ), the fittings and hardwares of all kinds for high-voltage applications and related products.
Can I get some glass insulators samples?
Yes, powerline glass insulator sample order is available for quality check and market test.
What's your payment terms?
We usually accept all kinds of payment terms, T/T, L/C, Western Union.
How can you control your glass power line insulator quality?
For each glass insulator production processing, we have a complete QC system for the chemical composition, physical and electrical properties. After production, all glass power line insulators will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
Does your company accept customization?
We accept OEM service.
What's your warranty terms?
We offer 24 months warranty terms.
Do you have glass electrical insulators in stock?
Depends on your request, we have standard models (CTV254 & CTV175, U40B U70B U120B U160BL U240B U300B ) in stock. Some special product and big order will be newly produced according to your order.
