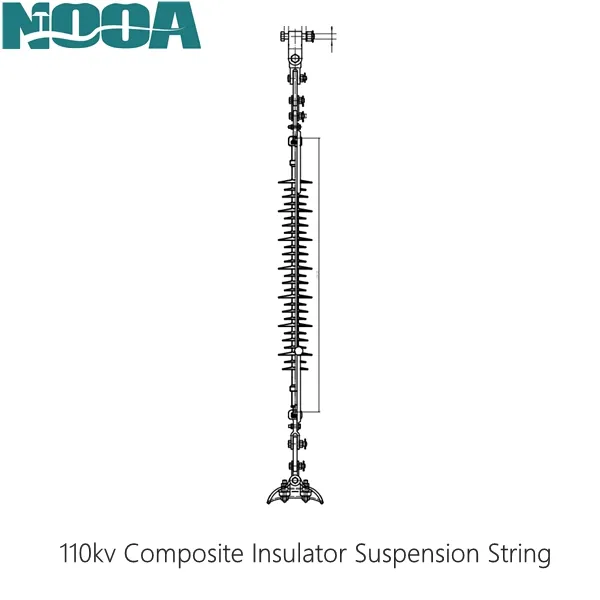

110kv Composite Insulator Suspension String Fitting

110kv Composite Insulator Suspension String Fitting

110kV composite insulator suspension string fittings are essential components in overhead transmission lines, providing mechanical support, electrical insulation, and structural stability for conductors. Designed to withstand high tensile forces, pollution environments, and dynamic loads, these fittings ensure long-term reliability in modern power grids. 110kV composite insulator suspension string includes a polymer (silicone rubber) insulator core with metal end fittings such as ball-eye, clevis, yoke plates, and suspension clamps. Compared to traditional porcelain or glass insulators, composite types offer lightweight structure, pollution resistance, and better anti-bending performance. Nooa Electric engineers these fittings to meet IEC and national utility requirements.
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ
Composite suspension strings use polymer insulators combined with specialized fittings to support conductors and maintain insulation on 110kV transmission lines.

Main Components of 110kV Composite Suspension String Fittings

The assembly includes polymer insulator rods, silicone sheds, metal end fittings, yoke plates, and line hardware designed to handle mechanical and electrical stress.


A typical 110kV composite suspension string consists of:

•  FRP/ECR fiberglass core rod – provides mechanical strength

•  Silicone rubber housing & sheds – enhances hydrophobicity and insulation

•  End fittings (ball-eye, clevis, socket, tongue, end cap)

•  Suspension clamp – supports and secures conductors

•  Yoke plates / clevis fittings – adjust hardware geometry

•  Corona/grading rings (when required)

•  Hot-dip galvanized steel hardware – corrosion-resistant and durable


Nooa Electric uses precision crimping and zinc-coating processes to ensure stable mechanical and electrical performance throughout the service life.

110kv Composite Insulator Suspension String Fitting

Performance Characteristics & Advantages

Composite suspension strings provide high mechanical strength, excellent pollution resistance, lightweight installation, and strong anti-fatigue properties.

1. High Mechanical Load Capacity
Typical mechanical ratings range from 70kN, 100kN, 120kN, to 160kN, depending on line design.
Composite rods provide higher tensile capacity with lower weight.

2. Pollution and Weather Resistance
Silicone rubber sheds maintain hydrophobicity, reducing flashover risks in coastal or industrial pollution environments.

3. Lightweight & Easy Installation
Composite insulators weigh only 30–40% of glass/porcelain types, making installation easier on long spans and mountain terrain.

4. Excellent Anti-Vibration & Bending Strength
The flexible FRP rod structure resists fatigue and minimizes conductor vibration impacts.

5. Long Service Life and UV Stability
Nooa Electric applies UV-resistant formulations and quality control to ensure durability in high-temperature and high-UV regions.

FAQ: 110kV Composite Insulator Suspension String Fitting

1. What is the typical length of a 110kV composite suspension insulator?
Usually 900–1800 mm, depending on creepage distance and pollution level.

2. Do 110kV composite strings require corona rings?
Often yes—especially for high-altitude or high-EMF regions to reduce corona discharge.

3. Are composite insulators better than glass for 110kV?
They are lighter, more pollution-resistant, and provide better anti-bending performance. Glass is favored in some areas for visibility and puncture resistance.

4. Can Nooa Electric supply complete hardware sets?
Yes. Nooa Electric provides fully assembled suspension strings or individual fittings.

5. What mechanical strength is typical for 110kV composite strings?
Common ratings: 70kN, 100kN, 120kN, 160kN, depending on conductor size and design.
