110kv Composite Insulator Double-Conductor Tension String Hardware

110kv Composite Insulator Double-Conductor Tension String Hardware

110kV composite insulator double-conductor tension string hardware is specifically designed to support and anchor bundled or twin conductors on high-voltage transmission lines. These hardware assemblies combine polymer tension insulators with precision-engineered metal fittings to withstand high tensile loads, pollution conditions, and dynamic mechanical forces. They are used at strain towers, angle towers, long spans, twin-conductor sections, and high-load locations on 110kV transmission lines. Nooa Electric designs and manufactures these assemblies to meet IEC and utility-specific requirements for mechanical strength and insulation performance.
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ
110kV composite insulator double-conductor tension strings are used on transmission lines where twin-bundle conductors are required to increase current-carrying capacity and reduce corona. The system includes polymer tension insulators arranged in one or two parallel strings, combined with double-conductor tension clamps, yoke plates, and ball-and-socket metal fittings.

Applications of 110kV Double-Conductor Tension String Hardware

Used at strain towers, angle towers, long spans, twin-conductor sections, and high-load locations on 110kV transmission lines.

These systems are commonly used in:

110kV twin-bundle transmission lines

Strain/anchor towers for double conductors

Angle towers with high mechanical load requirements

Long-span crossings (rivers, valleys, mountains)

High-wind or ice-load regions
Coastal and polluted environments

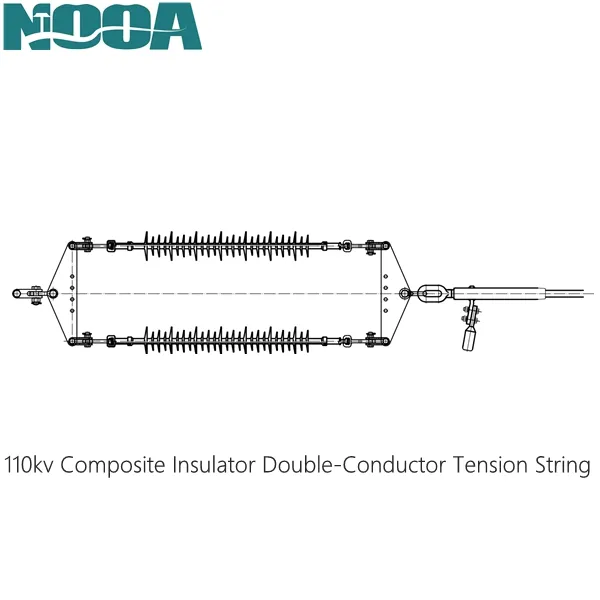

110kv Composite Insulator Double-Conductor Tension String Hardware

Why Choose Nooa Electric?

International standards, strict quality control, and tailored engineering solutions ensure safe and reliable double-conductor tension assemblies.

Nooa Electric provides:

Full IEC-compliant composite insulators

Mechanically tested FRP rods (tensile, bending, torsion)

Silicone rubber with long-term hydrophobicity maintenance

High-strength alloy steel hardware, hot-dip galvanized

Custom-made double-conductor clamps and yoke plates

Load, vibration, aging, pollution, and impulse testing

With global exports to Europe, Africa, Asia, the Middle East, and South America, the brand supports utilities in building reliable 110kV transmission infrastructure.

FAQ: 110kV Composite Insulator Double-Conductor Tension String Hardware

1. Does a double-conductor tension string require special clamps?

Yes. Double-conductor tension clamps are designed to grip two conductors simultaneously and distribute tension evenly.


2. Do composite tension strings require corona or grading rings?

Often yes—especially in areas with high EMF or contamination.


3. Are composite insulators suitable for cold or hot climates?

Yes. Silicone rubber maintains performance in −40°C to +55°C environments.


4. Can Nooa Electric design customized twin-conductor fittings?
Absolutely. Nooa Electric provides custom clamps, yoke plates, and string configurations based on line design drawings.
Company profile

Who We Are?

Nooa Electric Co., Ltd. - Chinese professional electrical insulators manufacturer with 21+ experience, covering an area of 70,000 square meters, and construction area is 50,000 square meters. There are more than 200 employees, including 25 technicians. The production capacity 3500000 pieces per year, and now setting up the new kiln and lines up to 10500000 pieces per year. We have been specialized in research and development of latest high-strength functional glass and power transmission insulators, which is the qualified supplier for State Grid Corporation of China and Southern State Grid Corporation of China, and is a participating unit of product standard formulation of the national electrical insulator standard committee.


What We Have?

Certificates & Reports: INTERTK, SGS, BV Certificates,Type Test Certificate.

Main Electric Insulators : Standard-type glass insulator (u40(ctv175)/u70(ctv254, ps70e)/u120/u160/u210/u300) , antipollution-type glass insulators (u120bp/u160bsp/u210bp), aerodynamic type glass electrical insulators (ug70bsa/u100bsa/u120bla), multi-umbrella type electric insulators, ground-wires type glass power line insulators (u70cn/u100cn/u120c), post insulator for line, pin glass insulator. Products are mainly used for transmission line insulation, suspension, support, tension conductors. They are divided into 5 major series: The standard type glass insulator 40-550kn, filth-resistant type glass insulators 70-420kn, aerodynamic type glass electrical insulators 120-300kn, multi-umbrella type electric insulators 120-300kn, and ground circuit type high voltage insulators, able to be used for line voltage from 10kv～1000kv.


Core Technology:

Automation Equipment: Siemens fully automatic feeding, stamping, temperature equalization, tempering, hot and cold shock control system.
Independent Product Model: U160BP/146/380/450, U160BP/155/380/450, U210BP/170/420/550 and U300BP/195/420/550.
Advanced Klin: Germany's new generation kiln control system, equipped with brand-new sensors and actuators, and equipped with a high-precision automatic batching system.
Qualification: Passed the quality, environment and occupational health system certification and obtained a number of invention patents.


Goal:

To be the world's largest glass insulators manufacturer.

Electric Insulators Certificates

Are u the electric insulators factory or trading company?
China Leading Electric Insulators Factory founded in 2002
What're your main power insulators?
Powerline Electric Insulators (glass insulators, porcelain insulators, composite insulators ), the fittings and hardwares of all kinds for high-voltage applications and related products.
Can I get some glass insulators samples?
Yes, powerline glass insulator sample order is available for quality check and market test.
What's your payment terms?
We usually accept all kinds of payment terms, T/T, L/C, Western Union.
How can you control your glass power line insulator quality?
For each glass insulator production processing, we have a complete QC system for the chemical composition, physical and electrical properties. After production, all glass power line insulators will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
Does your company accept customization?
We accept OEM service.
What's your warranty terms?
We offer 24 months warranty terms.
Do you have glass electrical insulators in stock?
Depends on your request, we have standard models (CTV254 & CTV175, U40B U70B U120B U160BL U240B U300B ) in stock. Some special product and big order will be newly produced according to your order.
