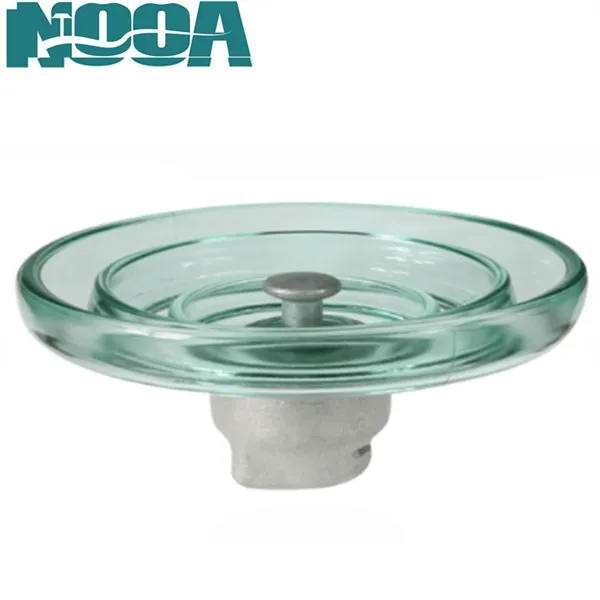

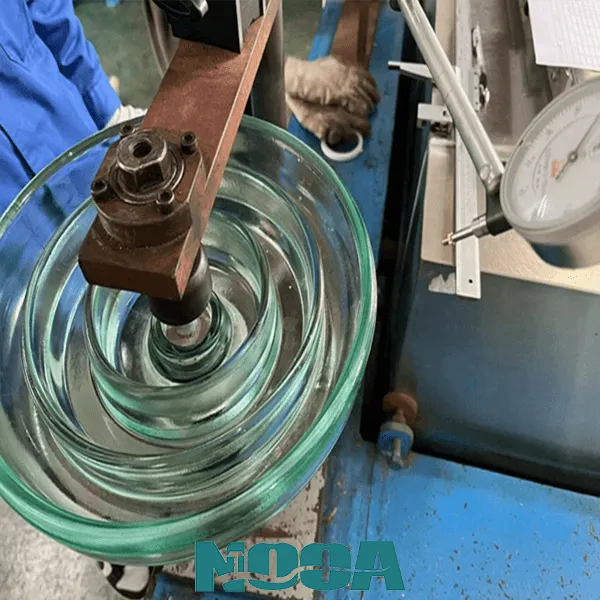

U70BP-146-280-450 is a 70kN toughened glass disc suspension insulator designed for medium-voltage transmission and distribution lines. It is widely used for both suspension and tension string configurations. The insulator provides high mechanical strength, excellent electrical insulation, and outstanding resistance to environmental stress. Diameter: 280mm Height: 146mm Creepage distance: 450mm
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ

Powerline insulators, also known as electrical insulators or simply insulators, are essential components in electrical power transmission and distribution systems. These insulators play a critical role in preventing electrical current from escaping the transmission lines and being grounded. They are used to support overhead power lines and keep them isolated from the structures they are mounted on, such as utility poles or transmission towers.


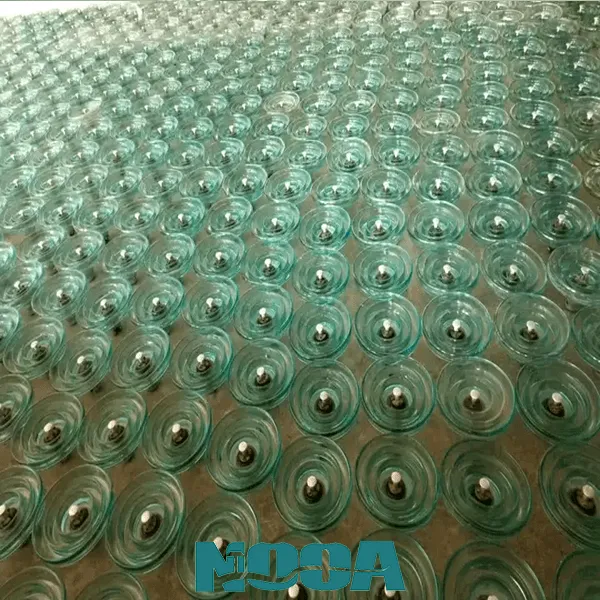

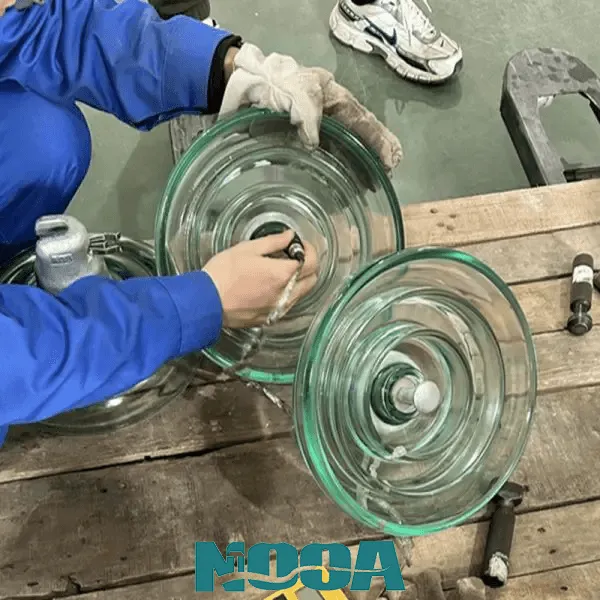

U70BP-146-280-450 Toughened Glass Disc Suspension Insulator is a high-quality 70kN insulator designed for 33–66kV power transmission lines. It provides excellent electrical insulation, superior mechanical strength, and reliable performance under harsh environmental conditions. Ideal for suspension or tension applications, this glass insulator ensures long-term safety and efficiency for power systems.

Basic type Figure No. Minimum mechanical failing load(kN) Nominal diameter D(mm) Nominal spacing P(mm) Nominal creepage distance (mm) Standard coupling Wet power frequency withstand voltage (kV) Dry lightning impulse withstand voltage (kV) Power frequency puncture voltage (kV) Radio interference voltage (μ V) 10kV 1MHz Corona visual test P/C kV Power frequency electric arc voltage Impulse puncture voltage (P.U) Net weight (kg)
UG70B146/450H (U70BLP) 4-6 70 280 146 450 16 50 125 130 50 18/22 0.12s/20kA 2.8 5.8
UG70B146/550H (U70BLP1) 4-6 70 320 146 550 16 55 140 130 50 18/22 0.12s/20kA 2.8 9.2
UG100B146/450H (U100BLP) 4-6 100 280 146 450 16 50 125 130 50 18/22 0.12s/20kA 2.8 5.8
UG100B146/550H (U100BLP1) 4-6 100 320 146 550 16 55 140 130 50 18/22 0.12s/20kA 2.8 9.2
UG120B146/450H (U120BLP) 4-6 120 280 146 450 16 50 125 130 50 18/22 0.12s/20kA 2.8 5.8
UG120B146/550H (U120BLP1) 4-6 120 320 146 550 16 55 140 130 50 18/22 0.12s/20kA 2.8 9.2
UG160B155/450H（U160BMP） 4-6 160 280 155 450 20 50 125 130 50 18/22 0.12s/20kA 2.8 7.1
UG160B170/450H（U160MP1） 4-6 160 280 170 450 20 50 125 130 50 18/22 0.12s/20kA 2.8 7.2
UG160B170/550H（U160BLP） 4-6 160 320 170 550 20 55 140 130 50 18/22 0.12s/20kA 2.8 9.6
UG160B155/550H（U160BLP1） 4-6 160 320 155 550 20 55 140 130 50 18/22 0.12s/20kA 2.8 9.5
UG210B170/550H（U210BP） 4-6 210 320 170 550 20 55 140 130 50 18/22 0.12s/20kA 2.8 10.2
UG240B170/550H（U240BP） 4-6 240 320 170 550 20/24 55 140 130 50 18/22 0.12s/20kA 2.8 10.2
UG300B195/635H (U300BP) 4-6 300 380 195 635 24 60 155 130 50 18/22 0.12s/20kA 2.8 14.5
UG300B195/690H (U300BP1) 4-6 300 390 195 690 24 60 155 130 50 18/22 0.12s/20kA 2.8 15
UG300B195/550H (U300BP2) 4-6 300 340 195 550 24 55 140 130 50 18/22 0.12s/20kA 2.8 12.5
UG420B205/602H (U420BP) 4-6 420 300 205 620 28 55 140 140 50 18/22 0.12s/20kA 2.8 15.8

Note:

1. The product model is in accordance with GB/T 7253-2005 and JB/T 9683-2012 (IEC60305:1995, MOD). The 420kN strength grade product contains 400kN strength grade, and the 550kN strength grade product contains 530kN strength grade.

2. The connection structure is in accordance with GB/T 4056-2008 (IEC60120: 1984, MOD) and BS 3288 Part.

3. According to the customer's request, the locking pin can be W-pin or R-pin. Unless otherwise specified, U70~U120 adopts W pin, and other uses R pin.
