U160BSP Glass Electrical Insulator combines high mechanical strength, excellent insulation, and contamination resistance, making it an excellent choice for high-stress and high-pollution applications. Its durability, safety features, and low maintenance requirements provide a reliable solution for demanding high-voltage transmission needs.
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ

glass electrical insulators are devices used to support and isolate electrical conductors (wires or cables) from their surrounding environment. they are typically used in electrical power distribution systems, transmission lines, and other applications where the conductors need to be suspended and kept separate from structures like poles, towers, or other support systems. Click to buy best electric glass insulators form Nooa Electric.

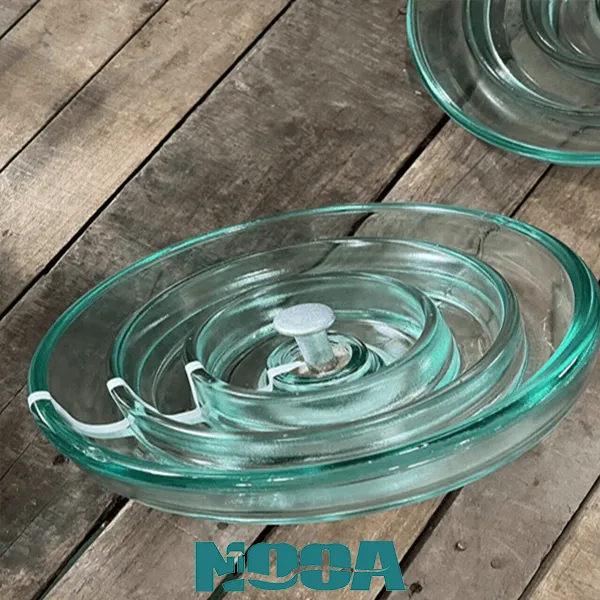

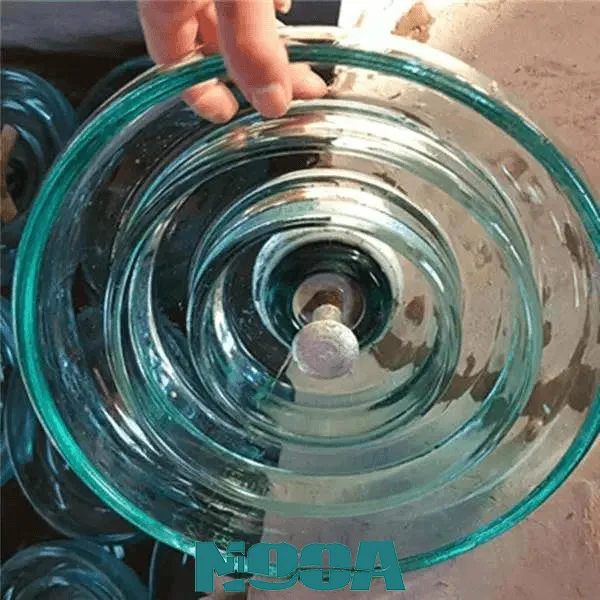

U160BSP Glass Electrical Insulator is a specialized high-voltage insulator engineered to deliver superior mechanical support and insulation in demanding transmission environments. Known for its enhanced durability and contamination resistance, this model is suitable for transmission lines in areas with high pollution, harsh weather, or coastal exposure. Its toughened glass construction provides reliable insulation, safe failure modes, and ease of maintenance, making it an ideal choice for high-stress applications. Purchase High quality electric glass insulators from Best electric glass insulator manufacturer now:info@nooaelectric.com


Benefits of U160BSP Glass Electrical Insulators:

Cost-Effective, Long-Term Solution: High durability and minimal maintenance requirements reduce long-term costs.
Enhanced Safety Features: The shatter-resistant design provides added protection for maintenance personnel and equipment.
Dependability Across Conditions: The U160BSP performs consistently in polluted and extreme environments, providing stable insulation and mechanical support for high-voltage needs.


155/320/550 U160BSP

basic type figure no. minimum mechanical failing load(kn) nominal diameter d(mm) nominal spacing p(mm) nominal creepage distance (mm) standard coupling wet power frequency withstand voltage (kv) dry lightning impulse withstand voltage (kv) power frequency puncture voltage (kv) radio interference voltage (μ v) 10kv 1mhz corona visual test p/c kv power frequency electric arc voltage impulse puncture voltage (p.u) net weight (kg)

u40b

1-3 40 178 110 190 11 25 50 90 50 18/22 0.12s/20ka 2.8 2.1
u70bs 1-3 70 255 127 320 16 40 100 130 50 18/22 0.12s/20ka 2.8 3.5
u70bl 1-3 70 255 146 320 16 40 100 130 50 18/22 0.12s/20ka 2.8 3.6
u100bs 1-3 100 255 146 320 16 40 100 130 50 18/22 0.12s/20ka 2.8 4
u120b 1-3 120 255 146 400 16 40 100 130 50 18/22 0.12s/20ka 2.8 4
u160bsp 1-3 160 320 155 550 20 45 110 130 50 18/22 0.12s/20ka 2.8 6.5
u160bm 1-3 160 280 155 400 20 45 110 130 50 18/22 0.12s/20ka 2.8 6.6
u160bl 1-3 160 280 170 400 20 45 110 130 50 18/22 0.12s/20ka 2.8 6.7
u210b 1-3 210 280 170 400 20 45 110 130 50 18/22 0.12s/20ka 2.8 7.2
u240b 1-3 240 280 170 400 20/24 45 110 130 50 18/22 0.12s/20ka 2.8 7.2
u300b 1-3 300 320 195 485 24 50 130 130 50 18/22 0.12s/20ka 2.8 10.6
u420b 1-3 420 360 205 550 28 80 140 140 50 18/22 0.12s/20ka 2.8 16
u550b 1-3 550 380 240 600 32 55 140 140 50 18/22 0.12s/20ka 2.8 21.5

note:
1. the product model is in accordance with gb/t 7253-2005 and jb/t 9683-2012 (iec60305:1995, mod). the 420kn strength grade product contains 400kn strength grade, and the 550kn strength grade product contains 530kn strength grade.

2. the connection structure is in accordance with gb/t 4056-2008 (iec60120: 1984, mod) and bs 3288 part

3. according to the customer's request, the locking pin can be w-pin or r-pin. unless otherwise specified, u70~u120 adopts w pin, and other uses r pin.

4. black marks are hot sellers-your best Glass insulators choice for overhead power lines

155/320/550 U160BSP electric glass insulators

electric glass insulators


Company profile

Who We Are?

Nooa Electric Co., Ltd. - Chinese professional electrical insulators manufacturer with 21+ experience, covering an area of 70,000 square meters, and construction area is 50,000 square meters. There are more than 200 employees, including 25 technicians. The production capacity 3500000 pieces per year, and now setting up the new kiln and lines up to 10500000 pieces per year. We have been specialized in research and development of latest high-strength functional glass and power transmission insulators, which is the qualified supplier for State Grid Corporation of China and Southern State Grid Corporation of China, and is a participating unit of product standard formulation of the national electrical insulator standard committee.


What We Have?

Certificates & Reports: INTERTK, SGS, BV Certificates,Type Test Certificate.

Main Electric Insulators : Standard-type glass insulator (u40(ctv175)/u70(ctv254, ps70e)/u120/u160/u210/u300) , antipollution-type glass insulators (u120bp/u160bsp/u210bp), aerodynamic type glass electrical insulators (ug70bsa/u100bsa/u120bla), multi-umbrella type electric insulators, ground-wires type glass power line insulators (u70cn/u100cn/u120c), post insulator for line, pin glass insulator. Products are mainly used for transmission line insulation, suspension, support, tension conductors. They are divided into 5 major series: The standard type glass insulator 40-550kn, filth-resistant type glass insulators 70-420kn, aerodynamic type glass electrical insulators 120-300kn, multi-umbrella type electric insulators 120-300kn, and ground circuit type high voltage insulators, able to be used for line voltage from 10kv～1000kv.


Core Technology:

Automation Equipment: Siemens fully automatic feeding, stamping, temperature equalization, tempering, hot and cold shock control system.
Independent Product Model: U160BP/146/380/450, U160BP/155/380/450, U210BP/170/420/550 and U300BP/195/420/550.
Advanced Klin: Germany's new generation kiln control system, equipped with brand-new sensors and actuators, and equipped with a high-precision automatic batching system.
Qualification: Passed the quality, environment and occupational health system certification and obtained a number of invention patents.


Goal:

To be the world's largest glass insulators manufacturer.

Electric Insulators Certificates

Are u the electric insulators factory or trading company?
China Leading Electric Insulators Factory founded in 2002
What're your main power insulators?
Powerline Electric Insulators (glass insulators, porcelain insulators, composite insulators ), the fittings and hardwares of all kinds for high-voltage applications and related products.
Can I get some glass insulators samples?
Yes, powerline glass insulator sample order is available for quality check and market test.
What's your payment terms?
We usually accept all kinds of payment terms, T/T, L/C, Western Union.
How can you control your glass power line insulator quality?
For each glass insulator production processing, we have a complete QC system for the chemical composition, physical and electrical properties. After production, all glass power line insulators will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
Does your company accept customization?
We accept OEM service.
What's your warranty terms?
We offer 24 months warranty terms.
Do you have glass electrical insulators in stock?
Depends on your request, we have standard models (CTV254 & CTV175, U40B U70B U120B U160BL U240B U300B ) in stock. Some special product and big order will be newly produced according to your order.
