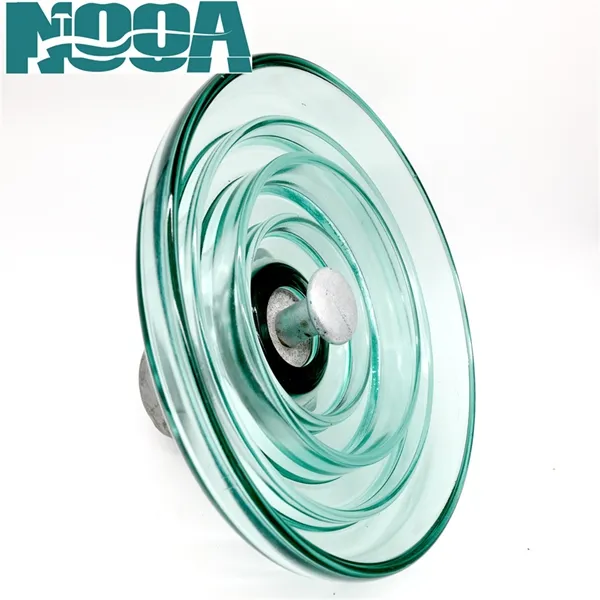

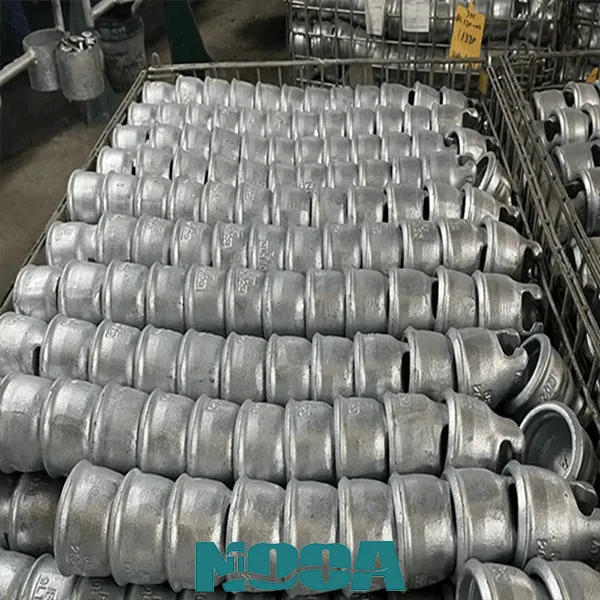

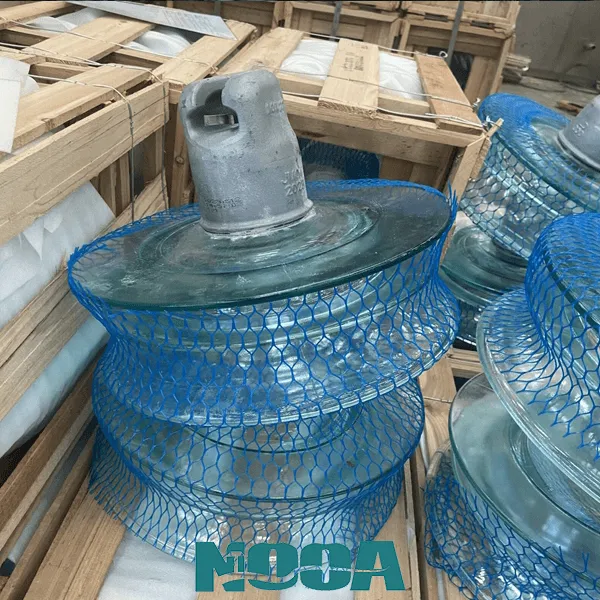

diameter: 280mm height: 146mm creepage distance: 450mm u70b146-450h anti-pollution insulators are designed with unique shapes and shed profiles to minimize the adhesion of pollutants. shedding refers to the ability of the insulator to shed water and contaminants, preventing them from forming conductive paths along the surface.
  • Product Details
  • Company
  • Product FAQ
anti-pollution insulators are designed with unique shapes and shed profiles to minimize the adhesion of pollutants. shedding refers to the ability of the insulator to shed water and contaminants, preventing them from forming conductive paths along the surface.


basic type figure no. minimum mechanical failing load(kn) nominal diameter d(mm) nominal spacing p(mm) nominal creepage distance (mm) standard coupling wet power frequency withstand voltage (kv) dry lightning impulse withstand voltage (kv) power frequency puncture voltage (kv) radio interference voltage (μ v) 10kv 1mhz corona visual test p/c kv power frequency electric arc voltage impulse puncture voltage (p.u) net weight (kg)
ug70b146/450h (u70blp) 4-6 70 280 146 450 16 50 125 130 50 18/22 0.12s/20ka 2.8 5.8
ug70b146/550h (u70blp1) 4-6 70 320 146 550 16 55 140 130 50 18/22 0.12s/20ka 2.8 9.2
ug100b146/450h (u100blp) 4-6 100 280 146 450 16 50 125 130 50 18/22 0.12s/20ka 2.8 5.8
ug100b146/550h (u100blp1) 4-6 100 320 146 550 16 55 140 130 50 18/22 0.12s/20ka 2.8 9.2
ug120b146/450h (u120blp) 4-6 120 280 146 450 16 50 125 130 50 18/22 0.12s/20ka 2.8 5.8
ug120b146/550h (u120blp1) 4-6 120 320 146 550 16 55 140 130 50 18/22 0.12s/20ka 2.8 9.2
ug160b155/450h(u160bmp) 4-6 160 280 155 450 20 50 125 130 50 18/22 0.12s/20ka 2.8 7.1
ug160b170/450h(u160mp1) 4-6 160 280 170 450 20 50 125 130 50 18/22 0.12s/20ka 2.8 7.2
ug160b170/550h(u160blp) 4-6 160 320 170 550 20 55 140 130 50 18/22 0.12s/20ka 2.8 9.6
ug160b155/550h(u160blp1) 4-6 160 320 155 550 20 55 140 130 50 18/22 0.12s/20ka 2.8 9.5
ug210b170/550h(u210bp) 4-6 210 320 170 550 20 55 140 130 50 18/22 0.12s/20ka 2.8 10.2
ug240b170/550h(u240bp) 4-6 240 320 170 550 20/24 55 140 130 50 18/22 0.12s/20ka 2.8 10.2
ug300b195/635h (u300bp) 4-6 300 380 195 635 24 60 155 130 50 18/22 0.12s/20ka 2.8 14.5
ug300b195/690h (u300bp1) 4-6 300 390 195 690 24 60 155 130 50 18/22 0.12s/20ka 2.8 15
ug300b195/550h (u300bp2) 4-6 300 340 195 550 24 55 140 130 50 18/22 0.12s/20ka 2.8 12.5
ug420b205/602h (u420bp) 4-6 420 300 205 620 28 55 140 140 50 18/22 0.12s/20ka 2.8 15.8

note:

1. the product model is in accordance with gb/t 7253-2005 and jb/t 9683-2012 (iec60305:1995, mod). the 420kn strength grade product contains 400kn strength grade, and the 550kn strength grade product contains 530kn strength grade.

2. the connection structure is in accordance with gb/t 4056-2008 (iec60120: 1984, mod) and bs 3288 part.

3. according to the customer's request, the locking pin can be w-pin or r-pin. unless otherwise specified, u70~u120 adopts w pin, and other uses r pin.
