diameter: 255mm height: 146mm creepage distance: 320mm u70b disc-type glass insulator is a type of electrical insulator used to support and isolate electrical conductors (such as overhead power lines) from their supporting structures, which are often made of metal. these insulators are commonly used in high-voltage and medium-voltage power distribution systems.come to choose nooa industrial glass insulators for your electrical systems now.
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ

a disc-type  tempered glass insulator is a type of electrical insulator used to support and isolate electrical conductors (such as overhead power lines) from their supporting structures, which are often made of metal. these insulators are commonly used in high-voltage and medium-voltage power distribution systems

the disc-type glass insulator is characterized by its shape, which resembles a stack of cylindrical discs or disks. these discs are often made of glass or ceramic materials that have high dielectric strength, meaning they can resist the flow of electrical current. the insulator's design helps prevent the flow of electricity from the conductor to the supporting structure and provides an effective insulation barrier even in challenging weather conditions.


each disc in the insulator is typically cemented together with other discs to form a sturdy and reliable structure. the glass disc insulator is mounted on a metal or concrete structure, allowing the electrical conductor to pass through its center without coming into direct contact with the supporting material.

the primary function of the disc-type glass insulator is to ensure that electricity flows through the conductor without being leaked to the supporting structure or the ground. this is particularly important to prevent electrical arcing, which can damage equipment, cause power outages, and pose safety risks.


basic type figure no. minimum mechanical failing load(kn) nominal diameter d(mm) nominal spacing p(mm) nominal creepage distance (mm) standard coupling wet power frequency withstand voltage (kv) dry lightning impulse withstand voltage (kv) power frequency puncture voltage (kv) radio interference voltage (μ v) 10kv 1mhz corona visual test p/c kv power frequency electric arc voltage impulse puncture voltage (p.u) net weight (kg)
u40b 1-3 40 178 110 190 11 25 50 90 50 18/22 0.12s/20ka 2.8 2.1
u70bs 1-3 70 255 127 320 16 40 100 130 50 18/22 0.12s/20ka 2.8 3.5
u70bl 1-3 70 255 146 320 16 40 100 130 50 18/22 0.12s/20ka 2.8 3.6
u100bs 1-3 100 255 146 320 16 40 100 130 50 18/22 0.12s/20ka 2.8 4
u120b 1-3 120 255 146 400 16 40 100 130 50 18/22 0.12s/20ka 2.8 4
u160bs 1-3 160 280 146 400 20 45 110 130 50 18/22 0.12s/20ka 2.8 6.5
u160bm 1-3 160 280 155 400 20 45 110 130 50 18/22 0.12s/20ka 2.8 6.6
u160bl 1-3 160 280 170 400 20 45 110 130 50 18/22 0.12s/20ka 2.8 6.7
u210b 1-3 210 280 170 400 20 45 110 130 50 18/22 0.12s/20ka 2.8 7.2
u240b 1-3 240 280 170 400 20/24 45 110 130 50 18/22 0.12s/20ka 2.8 7.2
u300b 1-3 300 320 195 485 24 50 130 130 50 18/22 0.12s/20ka 2.8 10.6
u420b 1-3 420 360 205 550 28 80 140 140 50 18/22 0.12s/20ka 2.8 16
u550b 1-3 550 380 240 600 32 55 140 140 50 18/22 0.12s/20ka 2.8 21.5

note:

1. the product model is in accordance with gb/t 7253-2005 and jb/t 9683-2012 (iec60305:1995, mod). the 420kn strength grade product contains 400kn strength grade, and the 550kn strength grade product contains 530kn strength grade.

2. the connection structure is in accordance with gb/t 4056-2008 (iec60120: 1984, mod) and bs 3288 part

3. according to the customer's request, the locking pin can be w-pin or r-pin. unless otherwise specified, u70~u120 adopts w pin, and other uses r pin.


Toughened Glass Insulators' Certificates & Reports
Tempered Glass Insulator Certificates


High Voltage Insulator Factory

Tempered Glass Insulator Factory

Electric Glass Insulator

Tempered Glass Insulator Stock

electric glass insulators

Electric Glass Insulator Application

Tempered Glass Insulator Packing



Toughened Glass Insulator Exhibitions & Clients

Electrical Disc Type Glass InsulatorElectrical Disc Type Glass Insulator

What Our Clients Say

Electrical Disc Type Glass Insulator

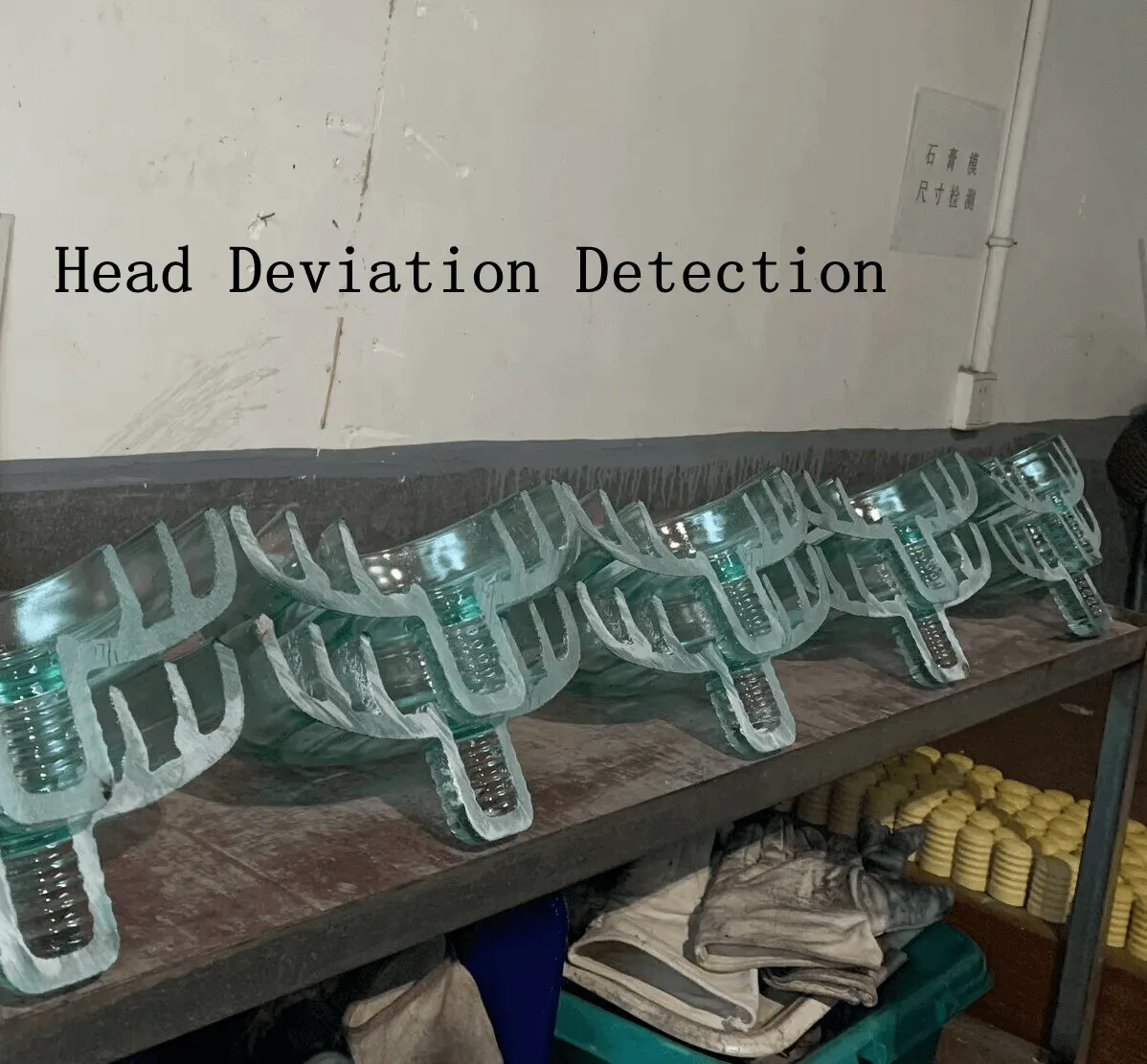

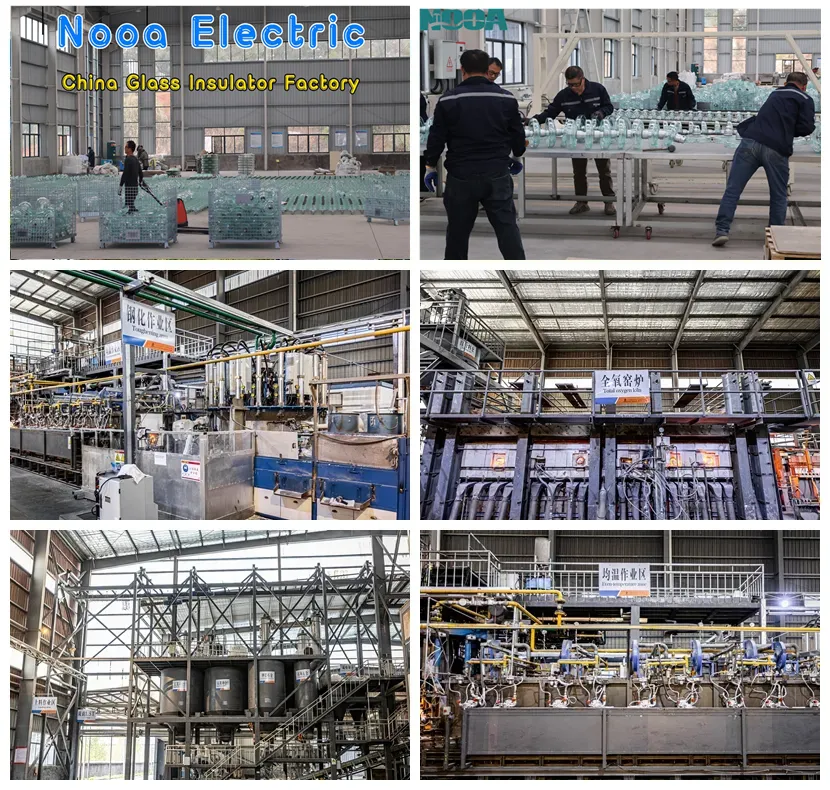

Company profile

Who We Are?

Nooa Electric Co., Ltd. - Chinese professional electrical insulators manufacturer with 21+ experience, covering an area of 70,000 square meters, and construction area is 50,000 square meters. There are more than 200 employees, including 25 technicians. The production capacity 3500000 pieces per year, and now setting up the new kiln and lines up to 10500000 pieces per year. We have been specialized in research and development of latest high-strength functional glass and power transmission insulators, which is the qualified supplier for State Grid Corporation of China and Southern State Grid Corporation of China, and is a participating unit of product standard formulation of the national electrical insulator standard committee.



What We Have?

Certificates & Reports: INTERTK, SGS, BV Certificates,Type Test Certificate.

Main Electric Insulators : Standard-type glass insulator (u40(ctv175)/u70(ctv254, ps70e)/u120/u160/u210/u300) , antipollution-type glass insulators (u120bp/u160bsp/u210bp), aerodynamic type glass electrical insulators (ug70bsa/u100bsa/u120bla), multi-umbrella type electric insulators, ground-wires type glass power line insulators (u70cn/u100cn/u120c), post insulator for line, pin glass insulator. Products are mainly used for transmission line insulation, suspension, support, tension conductors. They are divided into 5 major series: The standard type glass insulator 40-550kn, filth-resistant type glass insulators 70-420kn, aerodynamic type glass electrical insulators 120-300kn, multi-umbrella type electric insulators 120-300kn, and ground circuit type high voltage insulators, able to be used for line voltage from 10kv～1000kv.



Core Technology:

Automation Equipment: Siemens fully automatic feeding, stamping, temperature equalization, tempering, hot and cold shock control system.
Independent Product Model: U160BP/146/380/450, U160BP/155/380/450, U210BP/170/420/550 and U300BP/195/420/550.
Advanced Klin: Germany's new generation kiln control system, equipped with brand-new sensors and actuators, and equipped with a high-precision automatic batching system.
Qualification: Passed the quality, environment and occupational health system certification and obtained a number of invention patents.



Goal:

To be the world's largest glass insulators manufacturer.


Our Certificate

Are u the factory or trading company?
Factory founded in 2002
What're your main products?
insulators, the hardware of all kinds for high-voltage applications and related products.
Can I get some samples?
Yes, sample order is available for quality check and market test.
What's your payment terms?
We usually accept all kinds of payment terms, T/T, L/C, Western Union.
How can you control your quality?
For each production processing, we have a complete QC system for the chemical composition, physical and electrical properties. After production, all the goods will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
Does your company accept customization?
We accept OEM service.
What's your warranty terms?
We offer 24 months warranty terms.
Do you have the products in stock?
Depends on your request, we have standard models in stock. Some special product and big order will be newly produced according to your order.
