CTV254 axe 14 Glass Insulators for Ukraine

CTV254 axe 14 Glass Insulators for Ukraine

CTV254 Glass Insulator is a toughened glass disc used primarily in high-voltage transmission and distribution systems. Known for its superior mechanical strength, dielectric reliability, and excellent self-cleaning performance, the CTV254 model is widely used in medium- and high-voltage suspension and tension strings. Nooa‘s consistent production and strict QC procedures guarantee that each CTV254 glass insulator meets global customer expectations.
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ

CTV 254 AХE 14 Ukraine Type Glass Insulator

CTV254 is a classic toughened glass suspension insulator, often used in strings for 33kV–132kV lines depending on string length and mechanical load. Its disc design ensures efficient load-distribution, while the toughened glass material provides high impact resistance and rapid failure identification through the “zero-value” breakage characteristic.


Manufacturers like Nooa Electric produce CTV254 insulators for global transmission projects, offering consistent quality and compliance with IEC, ANSI, and utility-specific standards.

CTV 254 axe 14 Ukraine Type Glass Insulators

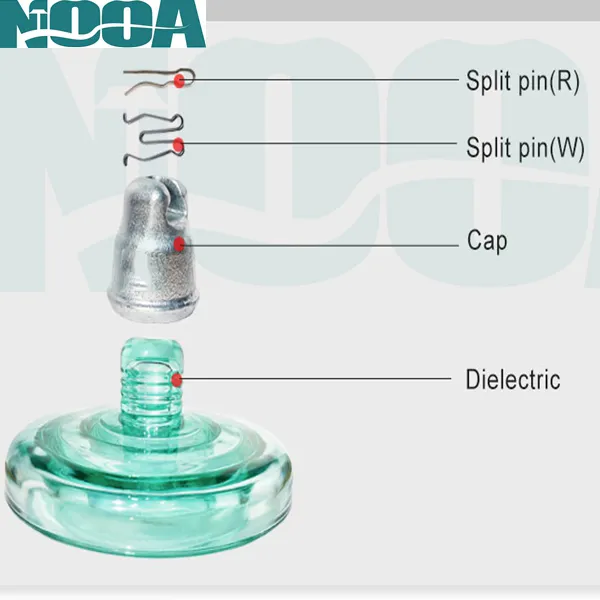

Design Structure and Material Properties

The CTV254 insulator typically features:
Toughened borosilicate glass with high mechanical tensile strength
Hot-dip galvanized steel fittings (ball & socket or tongue & clevis type)
Standard disc diameter of approximately 254 mm in line with IEC profile sizes
Clear or green-tinted toughened glass for enhanced visibility and aging resistance
The toughened glass material gives the insulator a smooth, non-porous surface that repels dust, salt, and industrial pollutants naturally—ideal for desert, coastal, and industrial zones.

Technical Specifications

Model: CTV 254 AХE 14
Type: Suspension/Toughened Glass Insulator
Material: Toughened Glass
Nominal Diameter: 254 mm
Nominal Creepage Distance: Typically around 320 mm (varies based on design standards)
Electromechanical Failing Load: 120 kN or as per specifications
Voltage Rating: Suitable for transmission voltages up to 110 kV or higher depending on configuration
Connection Type: Standard ball and socket coupling (Type 14) for easy assembly in insulator strings

CTV254 axe 14 Glass Insulators

Applications of CTV254 Glass Insulators

Ideal for suspension and tension strings in 33kV–132kV systems.

Typical applications include:
Suspension strings for overhead distribution and transmission lines
Tension (strain) strings in angle or dead-end structures
Substation bus and equipment connections
Replacement of aged ceramic or composite insulators
Use in polluted-area power grids due to excellent self-cleaning properties

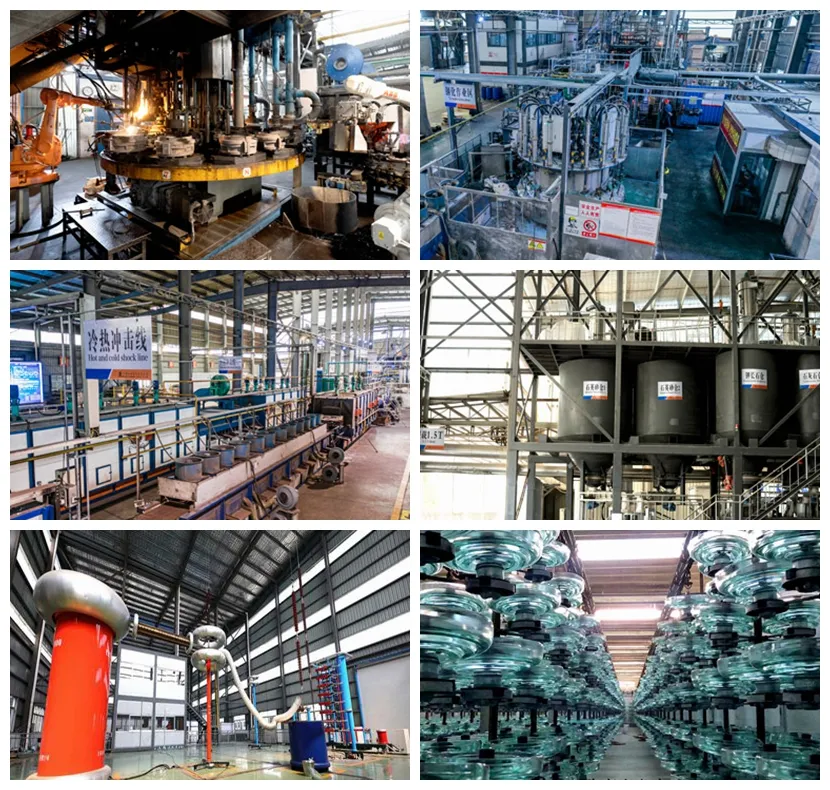

CTV254 Glass Insulator Factory

CTV 254 axe 14 Ukraine Type Glass Insulators Packing

CTV 254 axe 14 Ukraine Type Glass Insulators Stock

CTV 254 axe 14 Ukraine electric glass insulators

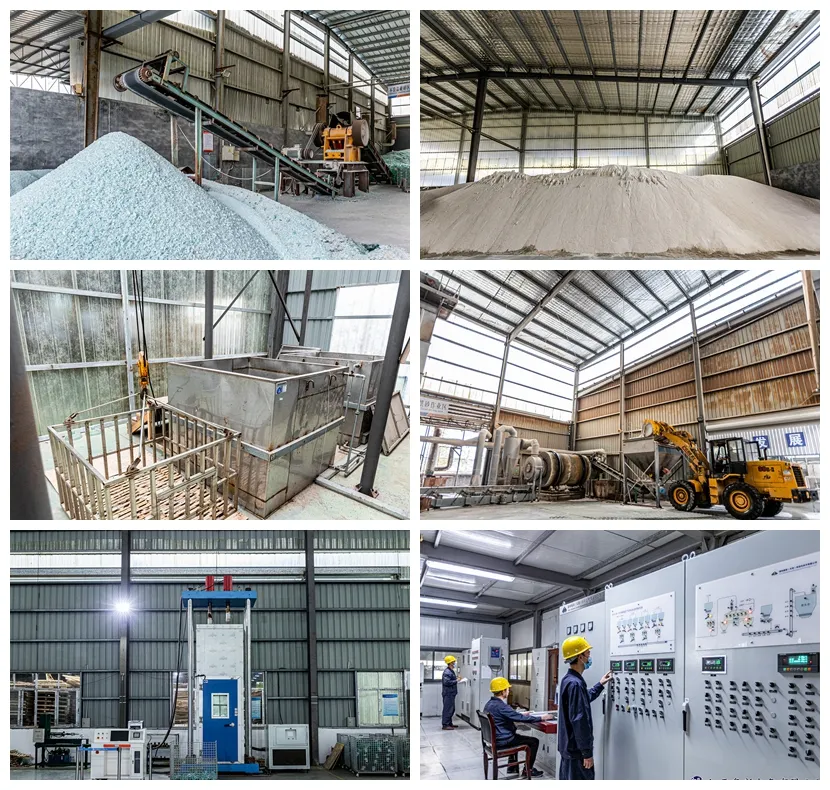

Glass Insulator Equipments

CTV254 Toughened Glass Insulator Exhibitions & Clients

Glass Electrical Insulators Glass Electrical Insulators

What Our Clients Say

Glass Electrical Insulators

FAQ: CTV254 Glass Insulator

1. What voltage level is the CTV254 suitable for?
Depending on string length and design, the CTV254 is commonly used for 33kV, 66kV, 110kV, and 132kV lines.

2. How does toughened glass compare to porcelain insulators?
Toughened glass offers higher visibility of damage, better pollution performance, and more consistent quality than porcelain.

3. What is “zero-value detection”?
When the glass disc breaks, it shatters into small pieces but still hangs in place. The broken disc is easy to spot, allowing quick replacement without electrical failure.

4. Does Nooa Electric provide complete insulator strings?
Yes. Nooa Electric supplies complete glass insulator strings, including tension hardware, suspension fittings, and conductor clamps.

5. Can CTV254 be used in coastal or industrial pollution zones?
Yes, its smooth glass surface provides excellent anti-pollution flashover performance, making it ideal for harsh environments.

Why Buy CTV254 Electric Glass Insulators from NOOA Electric?

1. Over 23-year R&d and Production Experience in Glass Insulators with 70000 sqm Factory, more than 200 employees, including 25 technicians.

2. Provide Full Range of Electrical Glass Insulators: 40-550kN With Free Drawings & Approved Type Test Report.

3. Negotiable Payment Term & Bulk Stock With Fast Delivery（Ship in 1 Month, Full Test Reports & Bid Certificates.

4. Familiar with your country's powerline design & customs policy. OEM design & strict testing ensured.

5. Experienced powerline insulator factory exporting to Europe, Africa, Asia, Middle East & South America. (Click for Documents)

Company profile

Who We Are?

Nooa Electric Co., Ltd. - Chinese professional electrical insulators manufacturer with 21+ experience, covering an area of 70,000 square meters, and construction area is 50,000 square meters. There are more than 200 employees, including 25 technicians. The production capacity 3500000 pieces per year, and now setting up the new kiln and lines up to 10500000 pieces per year. We have been specialized in research and development of latest high-strength functional glass and power transmission insulators, which is the qualified supplier for State Grid Corporation of China and Southern State Grid Corporation of China, and is a participating unit of product standard formulation of the national electrical insulator standard committee.


What We Have?

Certificates & Reports: INTERTK, SGS, BV Certificates,Type Test Certificate.

Main Electric Insulators : Standard-type glass insulator (u40(ctv175)/u70(ctv254, ps70e)/u120/u160/u210/u300) , antipollution-type glass insulators (u120bp/u160bsp/u210bp), aerodynamic type glass electrical insulators (ug70bsa/u100bsa/u120bla), multi-umbrella type electric insulators, ground-wires type glass power line insulators (u70cn/u100cn/u120c), post insulator for line, pin glass insulator. Products are mainly used for transmission line insulation, suspension, support, tension conductors. They are divided into 5 major series: The standard type glass insulator 40-550kn, filth-resistant type glass insulators 70-420kn, aerodynamic type glass electrical insulators 120-300kn, multi-umbrella type electric insulators 120-300kn, and ground circuit type high voltage insulators, able to be used for line voltage from 10kv～1000kv.


Core Technology:

Automation Equipment: Siemens fully automatic feeding, stamping, temperature equalization, tempering, hot and cold shock control system.
Independent Product Model: U160BP/146/380/450, U160BP/155/380/450, U210BP/170/420/550 and U300BP/195/420/550.
Advanced Klin: Germany's new generation kiln control system, equipped with brand-new sensors and actuators, and equipped with a high-precision automatic batching system.
Qualification: Passed the quality, environment and occupational health system certification and obtained a number of invention patents.


Goal:

To be the world's largest glass insulators manufacturer.

Electric Insulators Certificates

Are u the electric insulators factory or trading company?
China Leading Electric Insulators Factory founded in 2002
What're your main power insulators?
Powerline Electric Insulators (glass insulators, porcelain insulators, composite insulators ), the fittings and hardwares of all kinds for high-voltage applications and related products.
Can I get some glass insulators samples?
Yes, powerline glass insulator sample order is available for quality check and market test.
What's your payment terms?
We usually accept all kinds of payment terms, T/T, L/C, Western Union.
How can you control your glass power line insulator quality?
For each glass insulator production processing, we have a complete QC system for the chemical composition, physical and electrical properties. After production, all glass power line insulators will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
Does your company accept customization?
We accept OEM service.
What's your warranty terms?
We offer 24 months warranty terms.
Do you have glass electrical insulators in stock?
Depends on your request, we have standard models (CTV254 & CTV175, U40B U70B U120B U160BL U240B U300B ) in stock. Some special product and big order will be newly produced according to your order.
