U160BLP 170 320 550 HV Glass Suspension Insulator is robust, designed to withstand significant mechanical stress and electrical loads, making it suitable for high-voltage transmission systems
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ

U160BLP 170 320 550 HV Glass Suspension Insulators Key Features:

High Mechanical Strength: Suitable for high load-bearing applications.
High Electrical Insulation: Offers good insulation against electrical discharges.
Creepage Distance: Designed to prevent surface tracking and flashovers under wet conditions.
Ball and Socket Coupling: Allows for flexible connections in suspension strings.

U160BLP Glass Electric Insulators with Stock

basic type minimum mechanical failing load(kn) nominal diameter d(mm) nominal spacing p(mm) nominal creepage distance (mm) standard coupling wet power frequency withstand voltage (kv) dry lightning impulse withstand voltage (kv) power frequency puncture voltage (kv) radio interference voltage (μ v) 10kv 1mhz corona visual test p/c kv power frequency electric arc voltage impulse puncture voltage (p.u) net weight (kg)

u70blp

70 280 146 450 16 50 125 130 50 18/22 0.12s/20ka 2.8 5.8
u100blp 100 280 146 450 16 50 125 130 50 18/22 0.12s/20ka 2.8 5.8
u120bp 120 280 146 450 16 50 125 130 50 18/22 0.12s/20ka 2.8 5.8
u160bmp
 60 280 155 450 20 50 125 130 50 18/22 0.12s/20ka 2.8 7.1
u160blp
 160 320 170 550 20 55 140 130 50 18/22 0.12s/20ka 2.8 9.6
u210bp
 210 320 170 550 20 55 140 130 50 18/22 0.12s/20ka 2.8 10.2
u240bp
 240 320 170 550 20/24 55 140 130 50 18/22 0.12s/20ka 2.8 10.2
u300bp 300 380 195 635 24 60 155 130 50 18/22 0.12s/20ka 2.8 14.5
u420bp
 420 300 205 620 28 55 140 140 50 18/22 0.12s/20ka

2.8

15.8

Toughened Glass Insulators' Certificates & Reports

U160BLP 170 320 550 Suspension Insulator

U160BLP 170 320 550 High Voltage Insulator Factory

U160BLP 170 320 550 Suspension Insulator Factory

U160BLP 170 320 550 Glass Insulators Packing

U160BLP 170 320 550 Glass Insulators

U160BLP 170 320 550 electric glass insulators

U160BLP 170 320 550 Glass Insulators Application

U160BLP Glass Insulators Packing

U160BLP 170 320 550

Toughened Glass Insulator Exhibitions & Clients

U160BLP 170 320 550 Glass Insulators ExhibitionU160BLP 170 320 550 Glass Insulators

What Our Clients Say

U160BLP 170 320 550 comment

Why Buy U160BLP Electric Glass Insulators from NOOA Electric-China Electrical Insulator Manufacturer

1. Chinese Professional Electrical Insulators Manufacturer With A Complete Range Of Glass Insulators, Porcelain Insulators And Composite Insulators

2. Over 22-year R&d and Production Experience in Glass Insulators with 70000 sqm Factory, more than 200 employees, including 25 technicians

3. Provide Full Range of Electrical Glass Insulators: 40-550kN, 70-300kN, 70-240kN With Free Drawings & Approved Type Test Report.

4. INTERTEK, SGS, BV, etc. Any Third Party Inspection Before Delivery Is Available

5. Negotiable Payment Term & Bulk Stock With Fast Delivery（Ship in 1 Month）

6. Test Center For Glass Insulator. Inquire Now: info@nooaelectric.com

Company profile

Who We Are?

Nooa Electric Co., Ltd. - Chinese professional electrical insulators manufacturer with 21+ experience, covering an area of 70,000 square meters, and construction area is 50,000 square meters. There are more than 200 employees, including 25 technicians. The production capacity 3500000 pieces per year, and now setting up the new kiln and lines up to 10500000 pieces per year. We have been specialized in research and development of latest high-strength functional glass and power transmission insulators, which is the qualified supplier for State Grid Corporation of China and Southern State Grid Corporation of China, and is a participating unit of product standard formulation of the national electrical insulator standard committee.


What We Have?

Certificates & Reports: INTERTK, SGS, BV Certificates,Type Test Certificate.

Main Electric Insulators : Standard-type glass insulator (u40(ctv175)/u70(ctv254, ps70e)/u120/u160/u210/u300) , antipollution-type glass insulators (u120bp/u160bsp/u210bp), aerodynamic type glass electrical insulators (ug70bsa/u100bsa/u120bla), multi-umbrella type electric insulators, ground-wires type glass power line insulators (u70cn/u100cn/u120c), post insulator for line, pin glass insulator. Products are mainly used for transmission line insulation, suspension, support, tension conductors. They are divided into 5 major series: The standard type glass insulator 40-550kn, filth-resistant type glass insulators 70-420kn, aerodynamic type glass electrical insulators 120-300kn, multi-umbrella type electric insulators 120-300kn, and ground circuit type high voltage insulators, able to be used for line voltage from 10kv～1000kv.


Core Technology:

Automation Equipment: Siemens fully automatic feeding, stamping, temperature equalization, tempering, hot and cold shock control system.
Independent Product Model: U160BP/146/380/450, U160BP/155/380/450, U210BP/170/420/550 and U300BP/195/420/550.
Advanced Klin: Germany's new generation kiln control system, equipped with brand-new sensors and actuators, and equipped with a high-precision automatic batching system.
Qualification: Passed the quality, environment and occupational health system certification and obtained a number of invention patents.


Goal:

To be the world's largest glass insulators manufacturer.

Electric Insulators Certificates

Are u the electric insulators factory or trading company?
China Leading Electric Insulators Factory founded in 2002
What're your main power insulators?
Powerline Electric Insulators (glass insulators, porcelain insulators, composite insulators ), the fittings and hardwares of all kinds for high-voltage applications and related products.
Can I get some glass insulators samples?
Yes, powerline glass insulator sample order is available for quality check and market test.
What's your payment terms?
We usually accept all kinds of payment terms, T/T, L/C, Western Union.

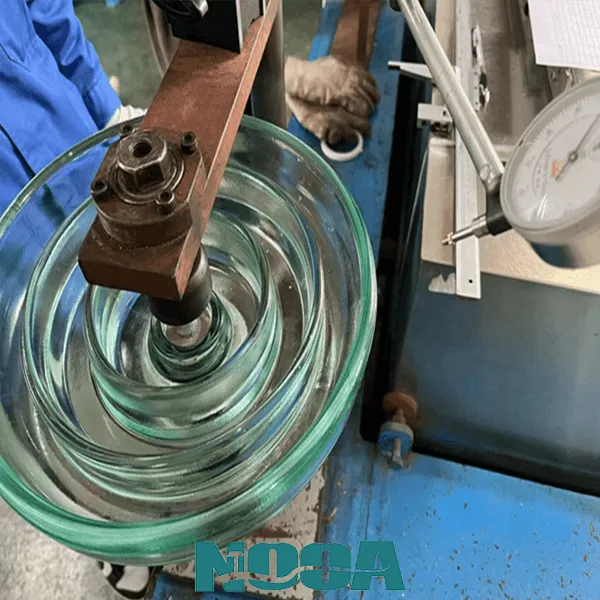

How can you control your glass power line insulator quality?
For each glass insulator production processing, we have a complete QC system for the chemical composition, physical and electrical properties. After production, all glass power line insulators will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
Does your company accept customization?
We accept OEM service.
What's your warranty terms?
We offer 24 months warranty terms.
Do you have glass electrical insulators in stock?
Depends on your request, we have standard models (CTV254 & CTV175, U40B U70B U120B U160BL U240B U300B ) in stock. Some special product and big order will be newly produced according to your order.
