PSV120B Glass Disc Suspension Insulator 146 mm Height
PSV120B Glass Disc Suspension Insulator 146 mm Height
PSV120B Glass Disc Suspension Insulator 146 mm Height
PSV120B Glass Disc Suspension Insulator 146 mm Height
PSV120B Glass Disc Suspension Insulator 146 mm Height

PSV120B Glass Disc Suspension Insulator 146 mm Height

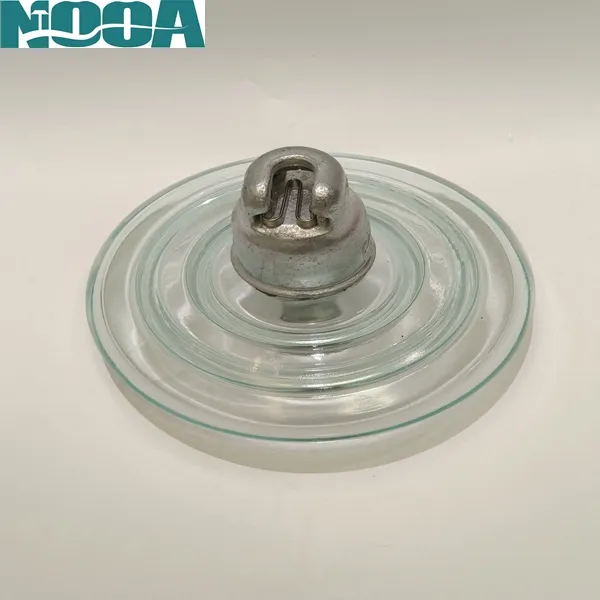

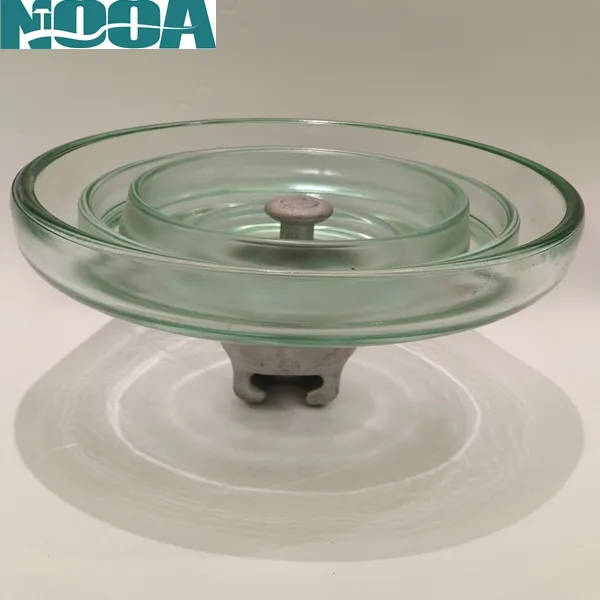

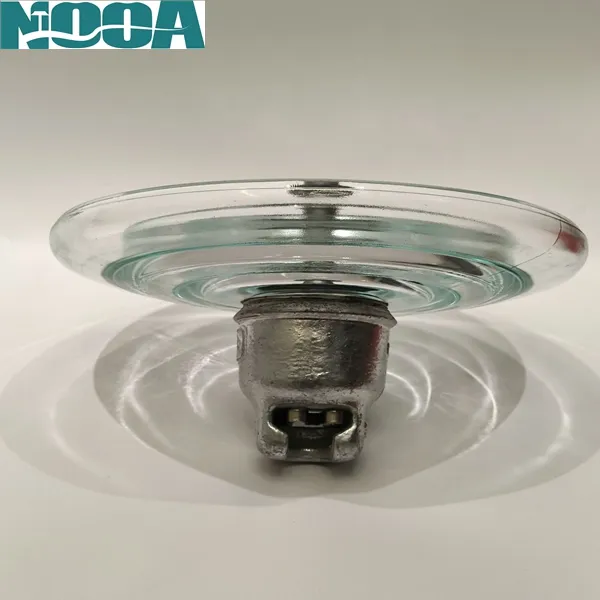

PSV120B is a glass disc suspension insulator with a nominal mechanical strength around 120 kN, a glass shedding diameter of about 255–280 mm depending on the exact variant, and a mounting height near 146 mm. It is specified under Russian IEC-compatible classes as PSV120B with associated creepage distances and electrical withstand ratings typical for 120 kN class suspension insulators. Mechanical strength: 120 kN minimum failing load (and about 96 kN residual strength in some IEC-based specs) for PSV120B variants. This places it in the 120 kN U20B/U120B family of disc suspension insulators.
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ

33kV glass electrical insulators

basic type figure no. minimum mechanical failing load(kn) nominal diameter d(mm) nominal spacing p(mm) nominal creepage distance (mm) standard coupling wet power frequency withstand voltage (kv) dry lightning impulse withstand voltage (kv) power frequency puncture voltage (kv) radio interference voltage (μ v) 10kv 1mhz corona visual test p/c kv power frequency electric arc voltage impulse puncture voltage (p.u) net weight (kg)

u40b

1-3 40 178 110 190 11 25 50 90 50 18/22 0.12s/20ka 2.8 2.1
u70bs 1-3 70 255 127 320 16 40 100 130 50 18/22 0.12s/20ka 2.8 3.5
u70bl 1-3 70 255 146 320 16 40 100 130 50 18/22 0.12s/20ka 2.8 3.6
u100bs 1-3 100 255 146 320 16 40 100 130 50 18/22 0.12s/20ka 2.8 4
u120bp-PSV120B 1-3 120 255 146 400 16 40 100 130 50 18/22 0.12s/20ka 2.8 4
u160bs 1-3 160 280 146 400 20 45 110 130 50 18/22 0.12s/20ka 2.8 6.5
u160b 1-3 160 280 155 400 20 45 110 130 50 18/22 0.12s/20ka 2.8 6.6
u160bl 1-3 160 280 170 400 20 45 110 130 50 18/22 0.12s/20ka 2.8 6.7
u210b 1-3 210 280 170 400 20 45 110 130 50 18/22 0.12s/20ka 2.8 7.2
u240b 1-3 240 280 170 400 20/24 45 110 130 50 18/22 0.12s/20ka 2.8 7.2
u300b 1-3 300 320 195 485 24 50 130 130 50 18/22 0.12s/20ka 2.8 10.6
u420b 1-3 420 360 205 550 28 80 140 140 50 18/22 0.12s/20ka 2.8 16
u550b 1-3 550 380 240 600 32 55 140 140 50 18/22 0.12s/20ka 2.8 21.5

CTV254

(PS70E)

1-3
 70
 255
 127
 320
 16
 40
 100
 130
 130
 18/22
 0.12s/20ka
 2.8
 3.5
CTV175
 1-3
 40
 178 110 190 11 25 50 90 50 18/22 0.12s/s20ka 2.8 2.1

note:
1. the product model is in accordance with gb/t 7253-2005 and jb/t 9683-2012 (iec60305:1995, mod). the 420kn strength grade product contains 400kn strength grade, and the 550kn strength grade product contains 530kn strength grade.

2. the connection structure is in accordance with gb/t 4056-2008 (iec60120: 1984, mod) and bs 3288 part

3. according to the customer's request, the locking pin can be w-pin or r-pin. unless otherwise specified, u70~u120 adopts w pin, and other uses r pin.

4. black marks are hot sellers-your best Glass insulators choice for overhead power lines

PSV120B Glass Suspension Insulator (also sometimes styled “PSV 120 B” / “PSV-120B”) with ~146 mm height,

PSV120B units:

Height (H) confirmation: Ensure the “146 mm” version is specified. Some catalogs show “127/146” versions – clarify with manufacturer which version the spacing/height refers to.
Coupling compatibility: Ball & socket coupling diameter must match e.g., 16 mm for this class. Ensures string assembly works.
Mechanical load class: Confirm 120 kN failing load and 96 kN residual strength. For transmission lines subject to high wind/ice loads, ensure margin.
Creepage distance: For pollution-heavy areas, ensure creepage (445 mm for 146mm height) matches environmental conditions. If heavy pollution/coastal, you may want fog-profile versions.
Glass quality & tempering: Production process (toughened glass, proper annealing, inspections) must satisfy relevant GOST/IEC standards (for example GOST “PSV” series or IEC 60305).
Metal fittings & coating: Cap, pin, locking device materials and galvanising must meet long-term corrosion requirements. Many suppliers offer zinc sleeves or stainless parts.
Testing & certification: Type test reports (mechanical, electrical, impulse), QA/QC (routine tests) must be provided.
Packaging & logistics: Glass suspension insulators are fragile — ensure proper cushioning/protection for export shipping.
Standards alignment: Ensure the product aligns with local market standards (in client country) — e.g., IEC, GOST, or national equivalents.
Version selection for environment: For very heavy pollution or coastal salt spray, consider “fog-profile” variants offering longer creepage or special coatings. See guidance in glass insulator manufacturer catalogs.
