PSD 70E Double Shed Toughed Glass Insulator 146 280 450 is made from chemically tempered glass, the PSD-70E offers exceptional mechanical strength (70kN mechanical load rating) and resistance to thermal shock, corrosion, and UV degradation. Two strategically placed sheds increase creepage distance, reducing the risk of electrical arcing and flashovers in polluted, humid, or coastal environments.
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ

Key Features of PSD 70E Double Shed Toughed Glass Insulator 146 280 450

Toughened Glass Construction:
Made from chemically tempered glass, the PSD-70E offers exceptional mechanical strength (70kN mechanical load rating) and resistance to thermal shock, corrosion, and UV degradation.
Shatters into harmless granular pieces upon failure, enhancing safety and simplifying inspections.


Double Shed Design:
Two strategically placed sheds increase creepage distance, reducing the risk of electrical arcing and flashovers in polluted, humid, or coastal environments.
Optimized for performance in extreme weather, including heavy rain, ice, or salt-laden atmospheres.


Technical Specifications
Model: PSD-70E
Mechanical Load Capacity: 70 kN (15,700 lbs)
Creepage Distance: ≥320 mm (varies by design)
Standards Compliance: IEC 60383, ANSI C29.2, and other international certifications.
Weight: ~8–10 kg (lightweight compared to ceramic equivalents).
Advantages Over Ceramic and Composite Insulators
Visibility: Transparent glass allows easy visual inspection for cracks or damage.

Applications
The PSD-70E is ideal for:
High-Voltage Transmission Lines (up to 765 kV)
Railway Electrification Systems
Substations and Switchyards
Polluted or Coastal Areas where salt fog or industrial contaminants are present.

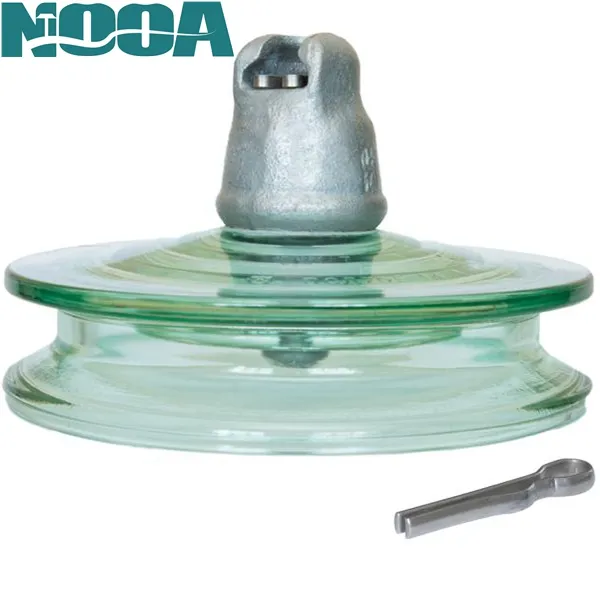

PSD-70E Glass Insulator

PSD-70E Glass Insulators

PSD-70E Glass Insulator factory


PSD-70E power Glass Insulator

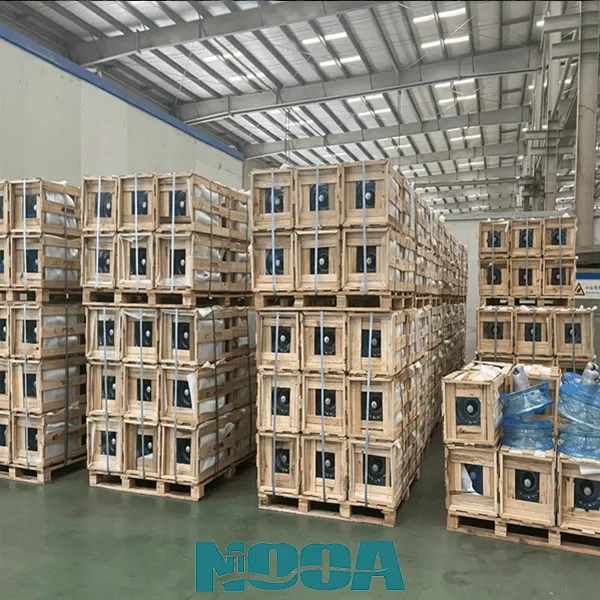

PSD-70E Glass Insulator packing

Toughened Glass Insulator Exhibitions & Clients

33kV Glass Insulators ExhibitionGlass Electrical Insulators

What Our Clients Say

Glass Electrical Insulators
Company profile

Who We Are?

Nooa Electric Co., Ltd. - Chinese professional electrical insulators manufacturer with 21+ experience, covering an area of 70,000 square meters, and construction area is 50,000 square meters. There are more than 200 employees, including 25 technicians. The production capacity 3500000 pieces per year, and now setting up the new kiln and lines up to 10500000 pieces per year. We have been specialized in research and development of latest high-strength functional glass and power transmission insulators, which is the qualified supplier for State Grid Corporation of China and Southern State Grid Corporation of China, and is a participating unit of product standard formulation of the national electrical insulator standard committee.


What We Have?

Certificates & Reports: INTERTK, SGS, BV Certificates,Type Test Certificate.

Main Electric Insulators : Standard-type glass insulator (u40(ctv175)/u70(ctv254, ps70e)/u120/u160/u210/u300) , antipollution-type glass insulators (u120bp/u160bsp/u210bp), aerodynamic type glass electrical insulators (ug70bsa/u100bsa/u120bla), multi-umbrella type electric insulators, ground-wires type glass power line insulators (u70cn/u100cn/u120c), post insulator for line, pin glass insulator. Products are mainly used for transmission line insulation, suspension, support, tension conductors. They are divided into 5 major series: The standard type glass insulator 40-550kn, filth-resistant type glass insulators 70-420kn, aerodynamic type glass electrical insulators 120-300kn, multi-umbrella type electric insulators 120-300kn, and ground circuit type high voltage insulators, able to be used for line voltage from 10kv～1000kv.


Core Technology:

Automation Equipment: Siemens fully automatic feeding, stamping, temperature equalization, tempering, hot and cold shock control system.
Independent Product Model: U160BP/146/380/450, U160BP/155/380/450, U210BP/170/420/550 and U300BP/195/420/550.
Advanced Klin: Germany's new generation kiln control system, equipped with brand-new sensors and actuators, and equipped with a high-precision automatic batching system.
Qualification: Passed the quality, environment and occupational health system certification and obtained a number of invention patents.


Goal:

To be the world's largest glass insulators manufacturer.

Electric Insulators Certificates

Are u the electric insulators factory or trading company?
China Leading Electric Insulators Factory founded in 2002
What're your main power insulators?
Powerline Electric Insulators (glass insulators, porcelain insulators, composite insulators ), the fittings and hardwares of all kinds for high-voltage applications and related products.
Can I get some glass insulators samples?
Yes, powerline glass insulator sample order is available for quality check and market test.
What's your payment terms?
We usually accept all kinds of payment terms, T/T, L/C, Western Union.
How can you control your glass power line insulator quality?
For each glass insulator production processing, we have a complete QC system for the chemical composition, physical and electrical properties. After production, all glass power line insulators will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
Does your company accept customization?
We accept OEM service.
What's your warranty terms?
We offer 24 months warranty terms.
Do you have glass electrical insulators in stock?
Depends on your request, we have standard models (CTV254 & CTV175, U40B U70B U120B U160BL U240B U300B ) in stock. Some special product and big order will be newly produced according to your order.
