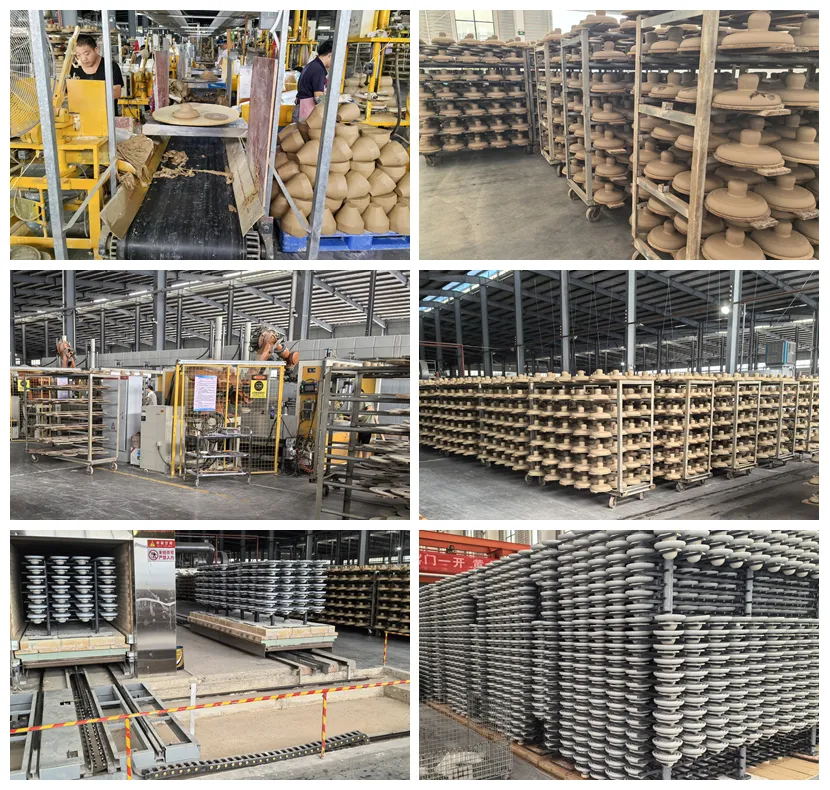

Porcelain Disc Insulators

Porcelain Disc Insulators are critical components in overhead power distribution networks, designed to mechanically support conductors while electrically insulating them from grounded structures (e.g., poles, towers). Disc suspension porcelain insulators are critical components in high-voltage electrical systems, designed to isolate and support overhead transmission lines while preventing unwanted current flow. These insulators are arranged in strings, allowing them to handle extreme electrical and mechanical stresses in diverse environmental conditions.

Structure and Design

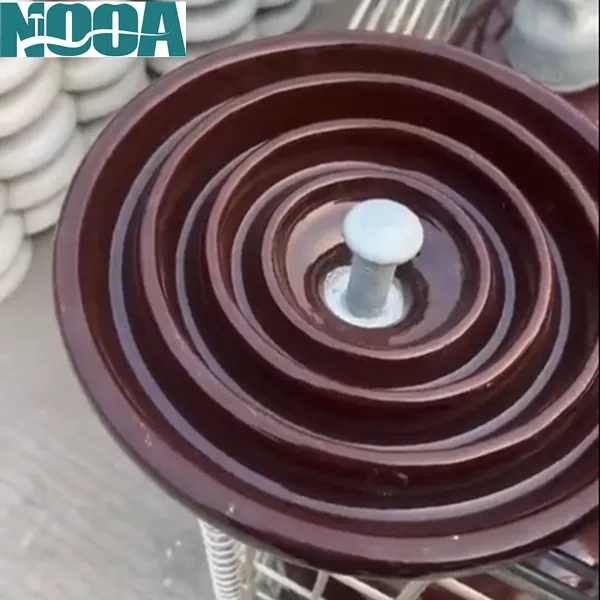

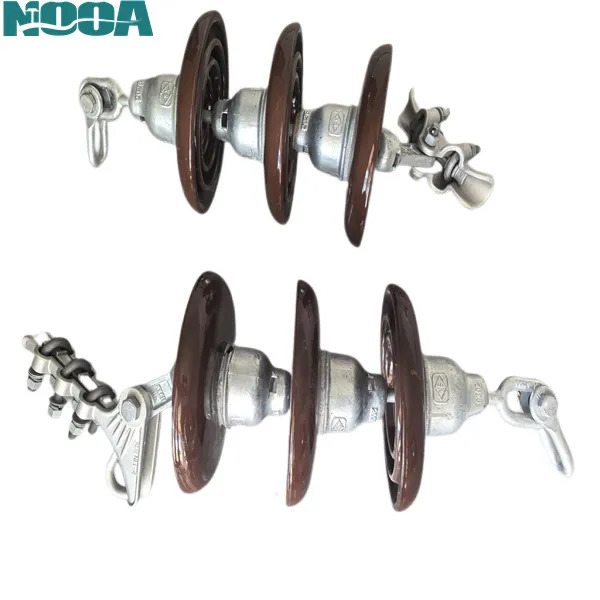

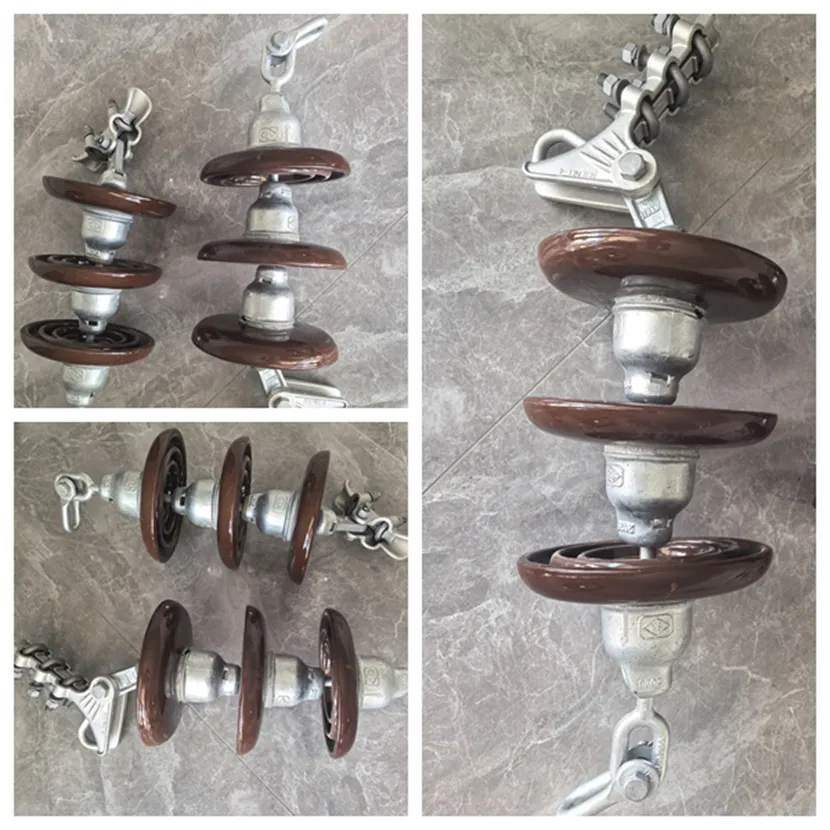

Each insulator comprises a porcelain disc with a metal cap (upper fitting) and a pin (lower fitting). Multiple discs connect via these fittings to form a flexible string. The disc's underside features ridges ("sheds") to increase the surface creepage distance—the path along the insulator’s surface between the conductor and tower. This design prevents flashovers by diverting water and contaminants. The number of discs in a string correlates with system voltage; for example, a 400kV line may use 20–25 discs, accounting for safety margins and environmental factors.

Features & Benefits

High Mechanical Strength – Withstands conductor weight and external forces like wind and ice.

Excellent Electrical Insulation – Prevents flashover and leakage currents.

Weather & Pollution Resistance – Suitable for harsh environments, including coastal and industrial areas.

Modular Design – Can be used in single or multiple disc configurations to increase voltage rating.

Easy Installation – Standard ball-and-socket design for quick assembly in insulator strings.

Applications
Medium-voltage & High-voltage transmission and distribution lines

Substation insulators for overhead lines

Railway electrification systems

Rural and urban power networks

suspension porcelain insulators remain a cornerstone of overhead distribution systems due to their robustness and cost-effectiveness. While polymer insulators are gaining traction for lightweight and pollution-resistant properties, porcelain excels in high-mechanical-load and high-temperature environments. Proper selection (disc count, creepage distance) and maintenance ensure decades of reliable service.
