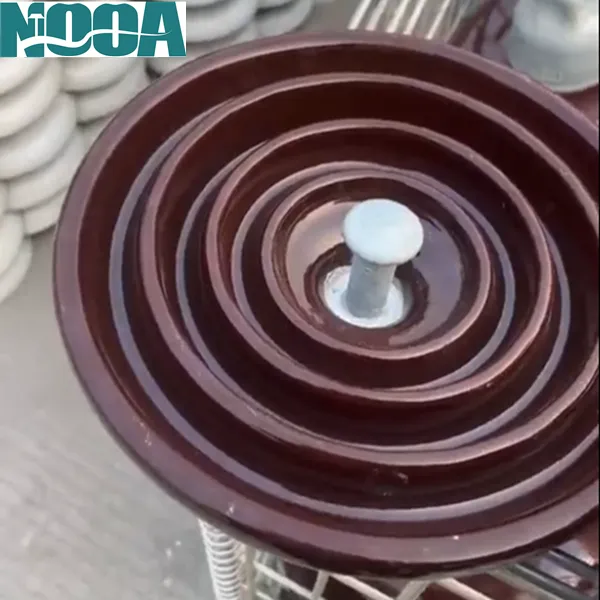

ANSI 52-3/52-5/52-8 Ball and Socket Type Porcelain Insulators

ANSI 52-3, 52-5, and 52-8 insulators are engineered for specific voltage and mechanical demands. The ball-and-socket design ensures flexibility and reliability in overhead line systems. Selection depends on voltage class, environmental conditions, and mechanical load requirements. For modern grids, they coexist with polymer alternatives but remain indispensable in high-stress applications. Disc Ball and Socket Type Porcelain Insulators remain a cornerstone of electrical infrastructure, balancing reliability, and cost. While composite materials gain traction, porcelain’s proven track record ensures its continued use in critical high-voltage applications.

ANSI Standards:
The designations 52-3, 52-5, and 52-8 correspond to specific classifications under the ANSI C29.2 standard, which outlines the mechanical and electrical characteristics of suspension insulators. The primary differences lie in their mechanical load ratings:
ANSI 52-3: Used in 11–33 kV distribution lines or low-tension transmission systems. Suitable for lighter mechanical loads, with a minimum mechanical failing load of approximately 15,000 lbs (67 kN).
ANSI 52-5: Suitable for 33–69 kV systems, often in areas with moderate pollution. Designed for moderate loads, with a minimum failing load of around 20,000 lbs (89 kN).
ANSI 52-8: Deployed in 69–138 kV transmission lines or harsh environments (coastal, industrial). Built for heavier loads, with a minimum failing load of about 30,000 lbs (133 kN).

Applications:
These insulators are commonly employed in suspension strings for overhead power lines. They support the conductor while insulating it from towers or poles, with the specific type (52-3, 52-5, or 52-8) chosen based on the mechanical load requirements, which depend on factors like conductor weight, span length, and environmental conditions (e.g., wind or ice).

Advantages
Durability: Porcelain insulators offer a long service life and can withstand harsh outdoor conditions, making them reliable for long-term use.
Flexibility: The ball and socket design facilitates easy assembly and allows the insulator string to adapt to movements caused by wind or other forces.
Standardization: Compliance with ANSI standards ensures consistent performance and compatibility across manufacturers and systems.
