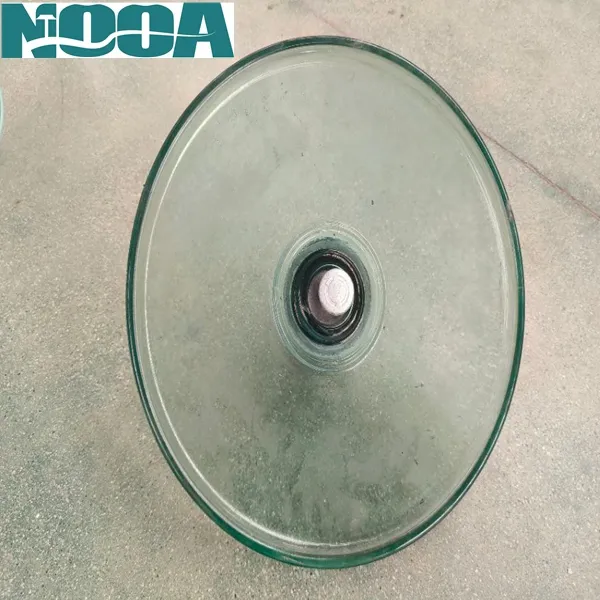

Open profile toughened glass insulators are specifically designed for environments with high wind and infrequent rain, such as desert regions. They feature a flat dielectric surface, minimizing the accumulation of solid pollution deposits like dust and sand, and allow for efficient self-cleaning by natural airflow and wind. Open Profile Toughened Glass Insulators are designed for overhead power lines, especially in urban environments and areas with limited space. Their open profile allows for easier cleaning and maintenance, contributing to reliable performance and lower maintenance costs. They offer excellent electrical and mechanical strength, making them suitable for critical industrial or coastal environments where traditional insulators might struggle. The smooth surface enhances self-cleaning properties and reduces the accumulation of pollutants.
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ
Open Profile Toughened Glass Insulators are designed for overhead power lines, especially in urban environments and areas with limited space. Their open profile allows for easier cleaning and maintenance, contributing to reliable performance and lower maintenance costs. They offer excellent electrical and mechanical strength, making them suitable for critical industrial or coastal environments where traditional insulators might struggle. The smooth surface enhances self-cleaning properties and reduces the accumulation of pollutants.


Open - profile glass insulators : Glass Insulators Solution For Desertic Environments
In desertic environments, there are often sandy soils and long - term drought conditions. The open profile design, without under - ribs, can avoid the accumulation of solid pollution deposits such as dust and sand on the lower surface of the insulator. This allows the wind to perform a self - cleaning process, reducing the impact of sand and dust on the insulating properties of the insulator.

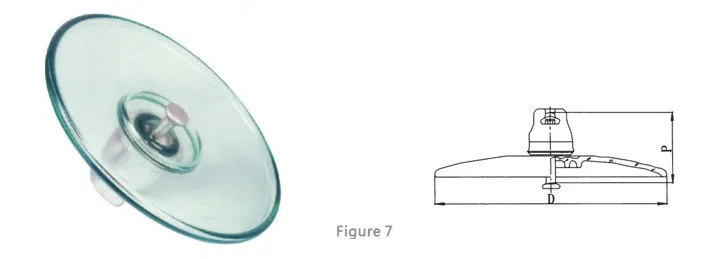

basic type figure no. minimum mechanical failing load(kn) nominal diameter d(mm) nominal spacing p(mm) nominal creepage distance (mm) standard coupling wet power frequency withstand voltage (kv) dry lightning impulse withstand voltage (kv) power frequency puncture voltage (kv) radio interference voltage (μ v) 10kv 1mhz corona visual test p/c kv power frequency electric arc voltage impulse puncture voltage (p.u) net weight (kg)
ug70b127/365a (u70bsa) 7 70 380 127 365 16 45 90 130 50 18/22 0.12s/20ka 2.8 5.2
ug70b146/365a (u70bla) 7 70 380 146 365 16 45 90 130 50 18/22 0.12s/20ka 2.8 5.3
ug100b127/365a (u100bsa) 7 100 380 127 365 16 45 90 130 50 18/22 0.12s/20ka 2.8 5.2
ug100b146/365a (u100bla) 7 100 380 146 365 16 45 90 130 50 18/22 0.12s/20ka 2.8 5.3
ug120b146/365a (u120bla) 7 120 380 146 365 16 45 90 130 50 18/22 0.12s/20ka 2.8 5.3
ug160b146/380a (u160bas) 7 160 420 146 365 20 50 95 130 50 18/22 0.12s/20ka 2.8 7.2
ug160b155/380a (u160bma) 7 160 420 155 380 20 50 95 130 50 18/22 0.12s/20ka 2.8 7.3
ug210b170/380a (u210ba) 7 210 420 170 380 20 50 95 130 50 18/22 0.12s/20ka 2.8 7.3
ug240b170/380a (u240ba) 7 240 420 170 380 20/24 50 95 130 50 18/22 0.12s/20ka 2.8 7.5
ug300b195/465a (u300ba) 7 300 420 195 465 28 50 95 130 50 18/22 0.12s/20ka 2.8 12

note:

1. the product model is in accordance with gb/t 7253-2005 and jb/t 9683-2012.
2. the connection structure is in accordance with gb/t 4056-2008 (iec60120: 1984, mod) and bs 3288 part
3. according to the customer's request, the locking pin can be w-pin or r-pin. unless otherwise specified, u70~u120 adopts w pin, and other uses r pin.
