CTV 254 AХE 14 is a Ukraine-type glass insulator designed for medium and high-voltage transmission lines. This insulator is engineered to provide excellent electrical insulation and mechanical strength, ensuring the stability and reliability of power distribution networks.
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ
CTV 254 AХE 14 glass insulator is a robust and highly reliable component for power transmission systems. With its high mechanical strength, excellent electrical insulation, and long service life, it is an ideal choice for utility companies and grid operators looking for dependable insulation solutions.
CTV 254 axe 14 Ukraine Type Glass Insulators

Key Features
High Mechanical Strength: Manufactured from toughened glass, this insulator offers superior mechanical resistance to withstand high loads and external stresses.
Self-Cleaning Properties: The smooth surface of the glass minimizes dirt accumulation, reducing maintenance requirements.
Exceptional Electrical Performance: The glass composition provides high dielectric strength and excellent resistance to electrical discharges.
Damage Resistance: In the event of breakage, the insulator shatters safely into small, non-hazardous pieces, preventing cascading failures in the line.
Environmental Durability: Resistant to extreme temperatures, moisture, and UV exposure, ensuring long-term performance in harsh outdoor conditions.
Standardized Design: Compliant with international and regional electrical standards for reliable interchangeability and application in diverse transmission systems.


Technical Specifications
Model: CTV 254 AХE 14
Type: Suspension/Toughened Glass Insulator
Material: Toughened Glass
Nominal Diameter: 254 mm
Nominal Creepage Distance: Typically around 320 mm (varies based on design standards)
Electromechanical Failing Load: 120 kN or as per specifications
Voltage Rating: Suitable for transmission voltages up to 110 kV or higher depending on configuration
Connection Type: Standard ball and socket coupling (Type 14) for easy assembly in insulator strings


Applications
Overhead high-voltage transmission and distribution lines
Electrical grid infrastructure requiring reliable insulation performance
Environments with high pollution and humidity levels due to self-cleaning properties

CTV 254 AХE 14 Ukraine Type Glass Insulator

basic type figure no. minimum mechanical failing load(kn) nominal diameter d(mm) nominal spacing p(mm) nominal creepage distance (mm) standard coupling wet power frequency withstand voltage (kv) dry lightning impulse withstand voltage (kv) power frequency puncture voltage (kv) corona visual test p/c kv power frequency electric arc voltage impulse puncture voltage (p.u) net weight (kg)
u70bs 1-3 70 255 127 320 16 40 100 130 18/22 0.12s/20ka 2.8 3.5
u70bl 1-3 70 255 146 320 16 40 100 130 18/22 0.12s/20ka 2.8 3.6

note:

1. the product model is in accordance with gb/t 7253-2005 and jb/t 9683-2012 (iec60305:1995, mod). the 420kn strength grade product contains 400kn strength grade, and the 550kn strength grade product contains 530kn strength grade.

2. the connection structure is in accordance with gb/t 4056-2008 (iec60120: 1984, mod) and bs 3288 part

3. according to the customer's request, the locking pin can be w-pin or r-pin. unless otherwise specified, u70~u120 adopts w pin, and other uses r pin.

CTV254 Glass Insulator Factory:

CTV 254 axe 14 Ukraine

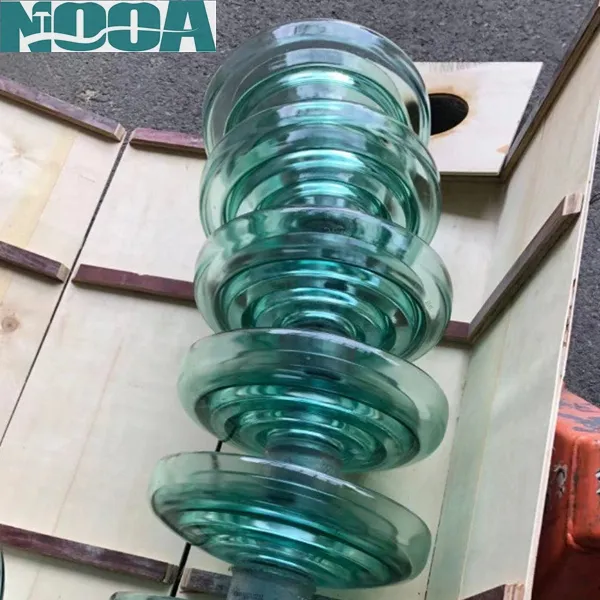

CTV 254 axe 14 Ukraine Type Glass Insulators Packing

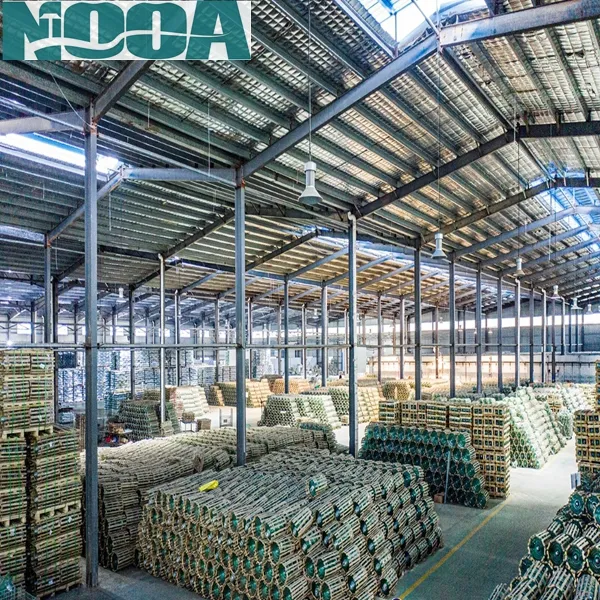

CTV 254 axe 14 Ukraine Type Glass Insulators Stock

CTV 254 axe 14 Ukraine electric glass insulators

CTV 254 axe 14 Ukraine Type Glass Insulators Application

CTV 254 axe 14 Ukraine Glass Insulators

Glass Insulator Project

Glass Insulator Equipments

Toughened Glass Insulator Exhibitions & Clients

Glass Electrical Insulators Glass Electrical Insulators

What Our Clients Say

Glass Electrical Insulators

Why Choose CTV254 Glass Insulator?

1. Reliability
With its exceptional insulating properties and mechanical strength, the CTV254 glass insulator ensures the reliable transmission of electrical power. It minimizes the risk of power outages and equipment failures, contributing to a stable power supply.

2. Cost-Effectiveness
The long service life and low maintenance requirements of the CTV254 glass insulator make it a cost-effective choice for power utilities and industrial users. It reduces operational costs and the frequency of insulator replacements, leading to significant long-term savings.

3. Environmental Sustainability
The use of high-quality glass materials in the CTV254 insulator ensures minimal environmental impact. Glass is a sustainable material that can be recycled, contributing to environmentally friendly power infrastructure solutions.

Why Buy CTV254 Electric Glass Insulators from NOOA Electric?

1. Over 22-year R&d and Production Experience in Glass Insulators with 70000 sqm Factory, more than 200 employees, including 25 technicians.

2. Provide Full Range of Electrical Glass Insulators: 40-550kN, 70-300kN, 70-240kN With Free Drawings & Approved Type Test Report.

3. Negotiable Payment Term & Bulk Stock With Fast Delivery（Ship in 1 Month）

4. Test Center For Glass Insulator. Inquire Now: info@nooaelectric.com, whatsapp: +86 15274981317.

Company profile

Who We Are?

Nooa Electric Co., Ltd. - Chinese professional electrical insulators manufacturer with 21+ experience, covering an area of 70,000 square meters, and construction area is 50,000 square meters. There are more than 200 employees, including 25 technicians. The production capacity 3500000 pieces per year, and now setting up the new kiln and lines up to 10500000 pieces per year. We have been specialized in research and development of latest high-strength functional glass and power transmission insulators, which is the qualified supplier for State Grid Corporation of China and Southern State Grid Corporation of China, and is a participating unit of product standard formulation of the national electrical insulator standard committee.


What We Have?

Certificates & Reports: INTERTK, SGS, BV Certificates,Type Test Certificate.

Main Electric Insulators : Standard-type glass insulator (u40(ctv175)/u70(ctv254, ps70e)/u120/u160/u210/u300) , antipollution-type glass insulators (u120bp/u160bsp/u210bp), aerodynamic type glass electrical insulators (ug70bsa/u100bsa/u120bla), multi-umbrella type electric insulators, ground-wires type glass power line insulators (u70cn/u100cn/u120c), post insulator for line, pin glass insulator. Products are mainly used for transmission line insulation, suspension, support, tension conductors. They are divided into 5 major series: The standard type glass insulator 40-550kn, filth-resistant type glass insulators 70-420kn, aerodynamic type glass electrical insulators 120-300kn, multi-umbrella type electric insulators 120-300kn, and ground circuit type high voltage insulators, able to be used for line voltage from 10kv～1000kv.


Core Technology:

Automation Equipment: Siemens fully automatic feeding, stamping, temperature equalization, tempering, hot and cold shock control system.
Independent Product Model: U160BP/146/380/450, U160BP/155/380/450, U210BP/170/420/550 and U300BP/195/420/550.
Advanced Klin: Germany's new generation kiln control system, equipped with brand-new sensors and actuators, and equipped with a high-precision automatic batching system.
Qualification: Passed the quality, environment and occupational health system certification and obtained a number of invention patents.


Goal:

To be the world's largest glass insulators manufacturer.

Electric Insulators Certificates

Are u the electric insulators factory or trading company?
China Leading Electric Insulators Factory founded in 2002
What're your main power insulators?
Powerline Electric Insulators (glass insulators, porcelain insulators, composite insulators ), the fittings and hardwares of all kinds for high-voltage applications and related products.
Can I get some glass insulators samples?
Yes, powerline glass insulator sample order is available for quality check and market test.
What's your payment terms?
We usually accept all kinds of payment terms, T/T, L/C, Western Union.
How can you control your glass power line insulator quality?
For each glass insulator production processing, we have a complete QC system for the chemical composition, physical and electrical properties. After production, all glass power line insulators will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
Does your company accept customization?
We accept OEM service.
What's your warranty terms?
We offer 24 months warranty terms.
Do you have glass electrical insulators in stock?
Depends on your request, we have standard models (CTV254 & CTV175, U40B U70B U120B U160BL U240B U300B ) in stock. Some special product and big order will be newly produced according to your order.
