U160B Series Glass Electric Insulator suitable for high-voltage applications in various environmental conditions, providing reliable insulation and support for electrical conductors. The U160B glass electric insulator is an essential component for maintaining the reliability and efficiency of high-voltage electrical systems.
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ

U160B Series Glass Power Line Insulators are used for insulation and fastening of wires and thunder-proof cables on power transmission lines and in switchgears.  It is a robust and efficient component designed for high-voltage power transmission and distribution systems. offering a balance of high mechanical strength, excellent electrical insulation, and durability. Their standardized design and widespread availability make them a popular choice for many power distribution applications across the globe.


Standard - profile glass insulators: Glass Insulators Solution For Regular Environments
In regular environments, there are no particularly harsh conditions, and standard - profile insulators can meet the basic requirements of electrical insulation and mechanical support. They have a moderate leakage distance and good self - cleaning ability, which can ensure the normal operation of power lines in general environments. At the same time, the standard - profile design is relatively simple, and the cost is relatively low, which is suitable for large - scale application in regular environments.

China U160B U160BM U160BS U160BL Glass Power Line Insulators
basic type figure no. minimum mechanical failing load(kn) nominal diameter d(mm) nominal spacing p(mm) nominal creepage distance (mm) standard coupling wet power frequency withstand voltage (kv) dry lightning impulse withstand voltage (kv) power frequency puncture voltage (kv) radio interference voltage (μ v) 10kv 1mhz corona visual test p/c kv power frequency electric arc voltage impulse puncture voltage (p.u) net weight (kg)
u160bs 1-3 160 280 146 400 20 45 110 130 50 18/22 0.12s/20ka 2.8 6.5
u160bm 1-3 160 280 155 400 20 45 110 130 50 18/22 0.12s/20ka 2.8 6.6
u160bl 1-3 160 280 170 400 20 45 110 130 50 18/22 0.12s/20ka 2.8 6.7

note:

1. the product model is in accordance with gb/t 7253-2005 and jb/t 9683-2012 (iec60305:1995, mod). the 420kn strength grade product contains 400kn strength grade, and the 550kn strength grade product contains 530kn strength grade.

2. the connection structure is in accordance with gb/t 4056-2008 (iec60120: 1984, mod) and bs 3288 part

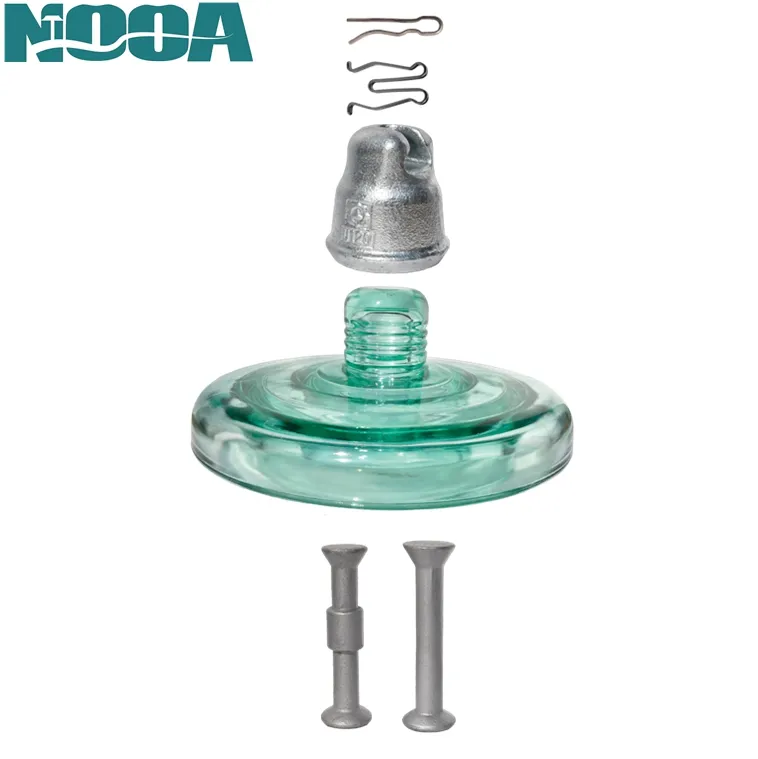

3. according to the customer's request, the locking pin can be w-pin or r-pin. unless otherwise specified, u70~u120 adopts w pin, and other uses r pin.

U160B Toughened Glass Insulators Factory

Key features of the U160B Glass Electric Insulator:

Mechanical Strength: It has a specified mechanical load of 160 kN, making it suitable for supporting heavy conductors.
Dry lightning impulse withstand voltage: 110 kV for a single unit
Wet power-frequency withstand voltage: 45 kV for a single unit
Puncture voltage in oil: 130 kV
Insulating diameter: 280 mm
Spacing: 146-170 mm (varies slightly between sources)
Creepage distance: 385 mm
Environmental Resistance: Designed to operate in temperatures ranging from -40°C to +50°C.
Standards Compliance: Manufactured in accordance with IEC 60305 and IEC 60120 standards.
Material: Made of toughened glass.
Zinc Coating: The metal parts have a zinc coating mass of not less than 600 g/m2, providing corrosion resistance.
Rated Frequency: 50-60 Hz.

Compliance and Standards

Nooa Electric's U160B glass insulator meets or exceeds the following international standards:
IEC 60383: Insulators for overhead lines with a nominal voltage above 1000 V.
ANSI C29: American National Standard for Insulators.
ISO 9001: Quality management systems certification.
ISO 14001: Environmental management systems certification.

INTERTEK,SGS,BV,etc

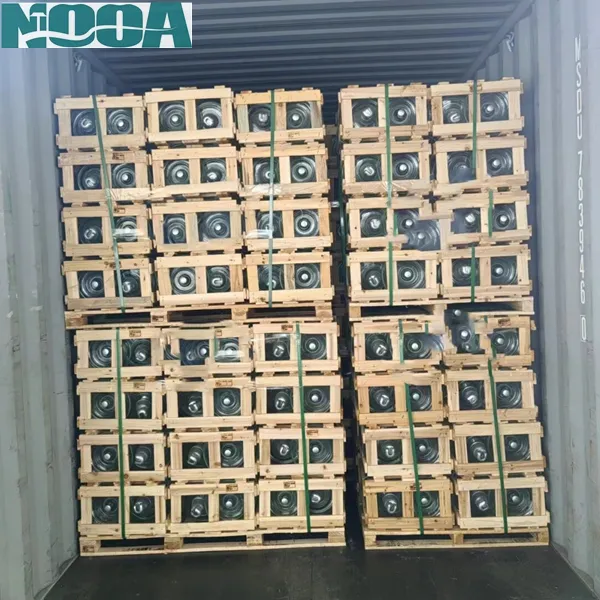

Glass Insulator Test & Packing:

China U160B U160BM U160BS U160BL Glass Power Line Insulators

CTV254 glass insulator Factory

Government Official Visit:

Powerline Glass Insulator Projects:

Glass Insulator Equipments:

U120B Electric Glass Insulators

Toughened Glass Insulator Exhibitions & Clients

Glass Electrical Insulators Glass Electrical Insulators

What Our Clients Say

Glass Electrical Insulators

U160B glass electric insulators for various applications:

1. High-Voltage Transmission Lines: Providing insulation and mechanical support to overhead power lines, ensuring efficient transmission of electricity over long distances.
2. Substations: Used in switchgear and other substation equipment to isolate and protect components from electrical faults.
3. Railways and Electrified Transport Systems: Ensuring the safe transmission of power in rail networks and other electrified transport systems.
4. Industrial Installations: Employed in industrial plants and facilities where high-voltage equipment is used, providing reliable insulation and protection.

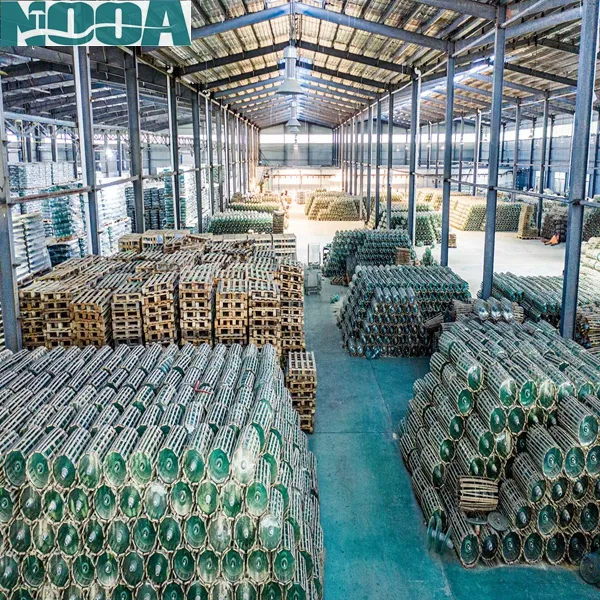

U160B Glass Insulators Stock and Availability:

Nooa Eelctric has been specialized in manufacturing high Voltage and ultra high voltage Disc Glass insulator since 2002, Qualified Approval supplier to China State Power Grid with 16 years with 2 glass natural gas kiln production lines. The production Capacity is 3500000 pieces per year, and now setting up the new kiln and lines up to 10500000 pieces per year.


Bulk Quantities: Available in large quantities to meet the demands of extensive electrical projects and maintenance schedules.

Ready Availability: Stocked items are ready for immediate dispatch, ensuring timely delivery and minimizing project delays.
Customization Options: Some suppliers offer customization in terms of dimensions, mechanical strength, and voltage ratings to cater to specific project requirements.

Why Buy U160B Series Glass Power Line Insulators from NOOA Electric?

1. Chinese Professional Electrical Insulators Manufacturer With A Complete Range Of Glass Insulators, Porcelain Insulators And Composite Insulators

2. Over 22-year R&d and Production Experience in Glass Insulators with 70000 sqm Factory, more than 200 employees, including 25 technicians

3. Provide Full Range of Electrical Glass Insulators: 40-550kN, 70-300kN, 70-240kN With Free Drawings & Approved Type Test Report.

4. INTERTEK, SGS, BV, etc. Any Third Party Inspection Before Delivery Is Available

5. Negotiable Payment Term & Bulk Stock With Fast Delivery（Ship in 1 Month）

6. Test Center For Glass Insulator. Inquire Now: info@nooaelectric.com, whatsapp: +86 19892857619.

Company profile

Who We Are?

Nooa Electric Co., Ltd. - Chinese professional electrical insulators manufacturer with 21+ experience, covering an area of 70,000 square meters, and construction area is 50,000 square meters. There are more than 200 employees, including 25 technicians. The production capacity 3500000 pieces per year, and now setting up the new kiln and lines up to 10500000 pieces per year. We have been specialized in research and development of latest high-strength functional glass and power transmission insulators, which is the qualified supplier for State Grid Corporation of China and Southern State Grid Corporation of China, and is a participating unit of product standard formulation of the national electrical insulator standard committee.


What We Have?

Certificates & Reports: INTERTK, SGS, BV Certificates,Type Test Certificate.

Main Electric Insulators : Standard-type glass insulator (u40(ctv175)/u70(ctv254, ps70e)/u120/u160/u210/u300) , antipollution-type glass insulators (u120bp/u160bsp/u210bp), aerodynamic type glass electrical insulators (ug70bsa/u100bsa/u120bla), multi-umbrella type electric insulators, ground-wires type glass power line insulators (u70cn/u100cn/u120c), post insulator for line, pin glass insulator. Products are mainly used for transmission line insulation, suspension, support, tension conductors. They are divided into 5 major series: The standard type glass insulator 40-550kn, filth-resistant type glass insulators 70-420kn, aerodynamic type glass electrical insulators 120-300kn, multi-umbrella type electric insulators 120-300kn, and ground circuit type high voltage insulators, able to be used for line voltage from 10kv～1000kv.


Core Technology:

Automation Equipment: Siemens fully automatic feeding, stamping, temperature equalization, tempering, hot and cold shock control system.
Independent Product Model: U160BP/146/380/450, U160BP/155/380/450, U210BP/170/420/550 and U300BP/195/420/550.
Advanced Klin: Germany's new generation kiln control system, equipped with brand-new sensors and actuators, and equipped with a high-precision automatic batching system.
Qualification: Passed the quality, environment and occupational health system certification and obtained a number of invention patents.


Goal:

To be the world's largest glass insulators manufacturer.

Electric Insulators Certificates

Are u the electric insulators factory or trading company?
China Leading Electric Insulators Factory founded in 2002
What're your main power insulators?
Powerline Electric Insulators (glass insulators, porcelain insulators, composite insulators ), the fittings and hardwares of all kinds for high-voltage applications and related products.
Can I get some glass insulators samples?
Yes, powerline glass insulator sample order is available for quality check and market test.
What's your payment terms?
We usually accept all kinds of payment terms, T/T, L/C, Western Union.
How can you control your glass power line insulator quality?
For each glass insulator production processing, we have a complete QC system for the chemical composition, physical and electrical properties. After production, all glass power line insulators will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
Does your company accept customization?
We accept OEM service.
What's your warranty terms?
We offer 24 months warranty terms.
Do you have glass electrical insulators in stock?
Depends on your request, we have standard models (CTV254 & CTV175, U40B U70B U120B U160BL U240B U300B ) in stock. Some special product and big order will be newly produced according to your order.
