U40B Disc Glass Electrical Insulators are designed to withstand high voltages without allowing electricity to pass through them. They are essential for preventing electrical faults in overhead transmission lines. U40B glass insulator have a mechanical strength of 40 kN, meaning it can withstand a tensile load of 40,000 newtons.
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ

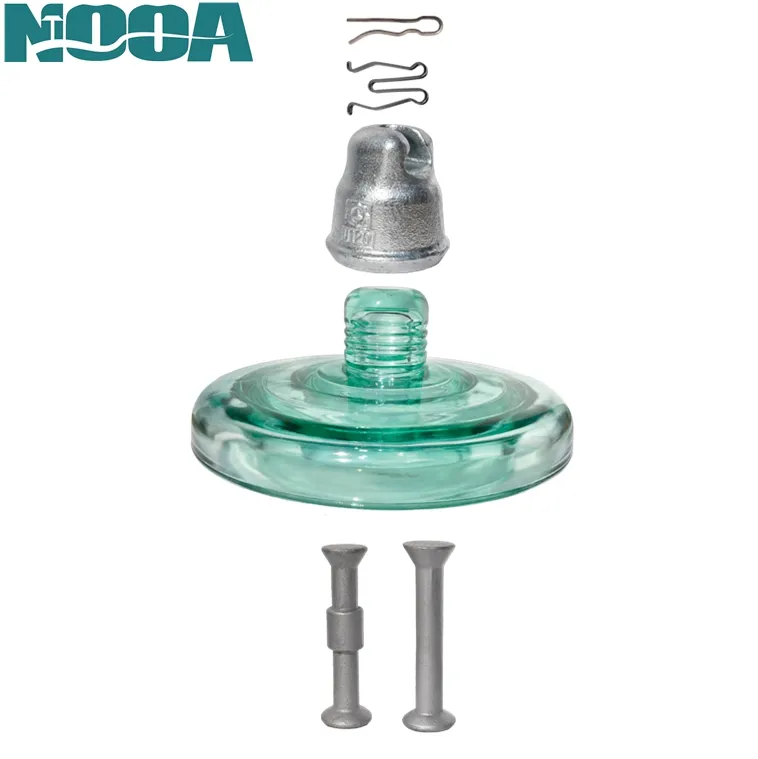

U40B Disc Glass Electrical Insulators are typically used in overhead power lines for electrical insulation and mechanical support of conductors. These insulators are part of the suspension insulator family and are commonly referred to as "disc insulators" because of their shape. They are made of tempered glass, which provides excellent mechanical and electrical performance. U40B Disc insulators are often used in strings, where multiple discs are connected in series to achieve the desired voltage insulation level. The number of discs in a string depends on the line voltage. Nooa Electric's U40B disc glass insulator is a cap and pin type toughened glass insulator designed for high-voltage applications, offering a mechanical failing load of 40 kN and rated for voltages up to 75 kV.Its robust construction, combined with good electrical performance and cost-effectiveness, makes it a popular choice for overhead transmission and distribution lines in clean to mildly polluted environments

U40B Disc Glass Electrical Insulators
basic type figure no. minimum mechanical failing load(kn) nominal diameter d(mm) nominal spacing p(mm) nominal creepage distance (mm) standard coupling wet power frequency withstand voltage (kv) dry lightning impulse withstand voltage (kv) power frequency puncture voltage (kv) radio interference voltage (μ v) 10kv 1mhz corona visual test p/c kv power frequency electric arc voltage impulse puncture voltage (p.u) net weight (kg)

u40b

1-3 40 178 110 190 11 25 50 90 50 18/22 0.12s/20ka 2.8 2.1

1. Made from tempered (toughened) glass, which is highly durable and resistant to mechanical stress, thermal variations, and electrical stress.
2. Tempered glass offers excellent durability, resistance to environmental conditions, and long service life. It is less prone to aging compared to other materials like porcelain.
3. These glass insulators have a disc-like shape, with each disc designed to support and insulate a section of the conductor.
4. U40B disc insulators are commonly used in overhead high-voltage transmission lines to suspend and insulate the conductors from the towers or poles.

U70BS glass insulator


U40B Disc Glass Electrical Insulators

U70BS glass insulator

U40B Disc Glass Electrical Insulators

Glass Insulators Packing

Toughened Glass Insulator Exhibitions & Clients

Glass Electrical Insulators Glass Electrical Insulators

What Our Clients Say

Glass Electrical Insulators

Why Buy U40B Disc Glass Electrical Insulators from NOOA Electric?

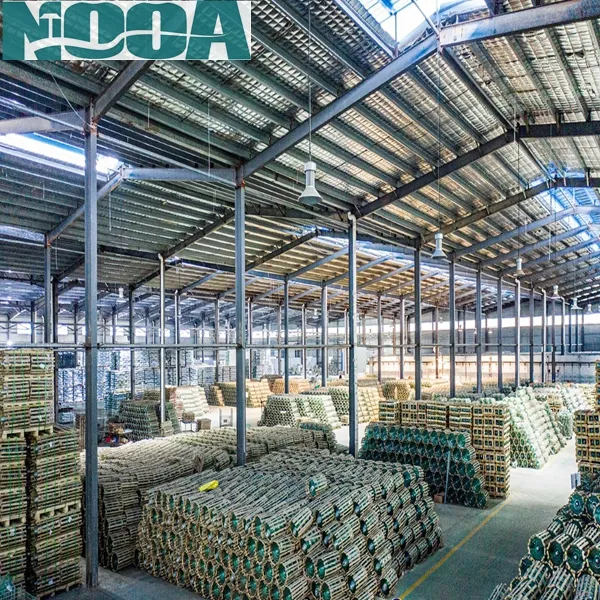

Nooa Eelctric has been specialized in manufacturing high Voltage and ultra high voltage Disc Glass insulator since 2002, Qualified Approval supplier to China State Power Grid with 16 years with 2 glass natural gas kiln production lines. The production Capacity is 3500000 pieces per year, and now setting up the new kiln and lines up to 10500000 pieces per year.


1. Chinese Top Professional Electrical Insulators Manufacturer With A Complete Range Of Glass Insulators, Porcelain Insulators And Composite Insulators

2. Over 22-year R&d and Production Experience in Glass Insulators with 70000 sqm Factory, more than 200 employees, including 25 technicians

3. Provide Full Range of Electrical Glass Insulators: 40-550kN, 70-300kN, 70-240kN With Free Drawings & Approved Type Test Report.

4. INTERTEK, SGS, BV, etc. Any Third Party Inspection Before Delivery Is Available

5. Negotiable Payment Term & Bulk Stock With Fast Delivery（Ship in 1 Month）

Company profile

Who We Are?

Nooa Electric Co., Ltd. - Chinese professional electrical insulators manufacturer with 21+ experience, covering an area of 70,000 square meters, and construction area is 50,000 square meters. There are more than 200 employees, including 25 technicians. The production capacity 3500000 pieces per year, and now setting up the new kiln and lines up to 10500000 pieces per year. We have been specialized in research and development of latest high-strength functional glass and power transmission insulators, which is the qualified supplier for State Grid Corporation of China and Southern State Grid Corporation of China, and is a participating unit of product standard formulation of the national electrical insulator standard committee.


What We Have?

Certificates & Reports: INTERTK, SGS, BV Certificates,Type Test Certificate.

Main Electric Insulators : Standard-type glass insulator (u40(ctv175)/u70(ctv254, ps70e)/u120/u160/u210/u300) , antipollution-type glass insulators (u120bp/u160bsp/u210bp), aerodynamic type glass electrical insulators (ug70bsa/u100bsa/u120bla), multi-umbrella type electric insulators, ground-wires type glass power line insulators (u70cn/u100cn/u120c), post insulator for line, pin glass insulator. Products are mainly used for transmission line insulation, suspension, support, tension conductors. They are divided into 5 major series: The standard type glass insulator 40-550kn, filth-resistant type glass insulators 70-420kn, aerodynamic type glass electrical insulators 120-300kn, multi-umbrella type electric insulators 120-300kn, and ground circuit type high voltage insulators, able to be used for line voltage from 10kv～1000kv.


Core Technology:

Automation Equipment: Siemens fully automatic feeding, stamping, temperature equalization, tempering, hot and cold shock control system.
Independent Product Model: U160BP/146/380/450, U160BP/155/380/450, U210BP/170/420/550 and U300BP/195/420/550.
Advanced Klin: Germany's new generation kiln control system, equipped with brand-new sensors and actuators, and equipped with a high-precision automatic batching system.
Qualification: Passed the quality, environment and occupational health system certification and obtained a number of invention patents.


Goal:

To be the world's largest glass insulators manufacturer.

Electric Insulators Certificates

Are u the electric insulators factory or trading company?
China Leading Electric Insulators Factory founded in 2002
What're your main power insulators?
Powerline Electric Insulators (glass insulators, porcelain insulators, composite insulators ), the fittings and hardwares of all kinds for high-voltage applications and related products.
Can I get some glass insulators samples?
Yes, powerline glass insulator sample order is available for quality check and market test.
What's your payment terms?
We usually accept all kinds of payment terms, T/T, L/C, Western Union.
How can you control your glass power line insulator quality?
For each glass insulator production processing, we have a complete QC system for the chemical composition, physical and electrical properties. After production, all glass power line insulators will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
Does your company accept customization?
We accept OEM service.
What's your warranty terms?
We offer 24 months warranty terms.
Do you have glass electrical insulators in stock?
Depends on your request, we have standard models (CTV254 & CTV175, U40B U70B U120B U160BL U240B U300B ) in stock. Some special product and big order will be newly produced according to your order.
