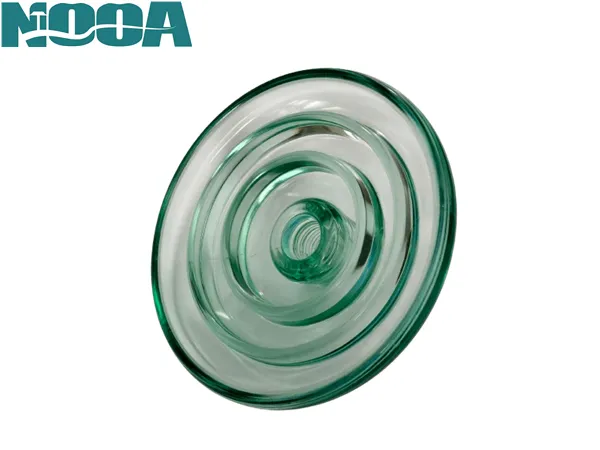

How To Determine The Glass Shell Quality Of Glass Insulators?

Date:2025-01-16Tags:Glass Shell, glass insulators manufacturers,
To determine the quality of a glass insulator's glass shell, several testing methods can be employed. These tests help assess the glass insulator's mechanical and electrical properties, ensuring it meets safety and performance standards. Here are the key methods:

Testing Methods for Glass Shell Quality

1. Steep-Front Puncture Test
Purpose: This test evaluates the dielectric strength of the glass shell under high voltage conditions.
Process: It involves applying a steep-front voltage waveform to the insulator to identify any weaknesses or defects in the glass structure. A failure during this test indicates poor quality or manufacturing defects.

2. Radio Influence Voltage (RIV) Testing
Purpose: RIV testing assesses the design quality of pin cavities and the cement used in insulators.
Process: The insulator is subjected to a pre-stress voltage, and the RIV level is measured at reduced voltages. High RIV levels can indicate issues with insulation quality or design flaws.

3. Residual Strength Test
Purpose: This test determines the insulator's ability to retain mechanical strength after sustaining damage.
Process: Broken discs are tested to evaluate how much load they can still withstand, providing insight into their durability and reliability post-damage.

4. Thermal Shock Test
Purpose: This test checks for impurities within the glass that may compromise its integrity.
Process: Insulators are subjected to rapid temperature changes to observe how well they withstand thermal stress, which can reveal defects in the glass structure.

5. Mechanical Failing Load Test
Purpose: This assesses the maximum load an insulator can handle before failing.
Process: The load is gradually increased until failure occurs, helping to identify weaknesses in design or material quality.

Quality Control Measures
To ensure consistent quality, manufacturers should implement routine testing during production. This includes:
- Regular sampling for electrical, mechanical, and thermal tests.
- Adherence to established standards like IEC 61211 for steep-front testing and ASTM standards for cement evaluation.

By employing these testing methods and maintaining stringent quality control measures, we glass insulators manufacturers can effectively assess and ensure the quality of glass insulators.
