How Much You Know About Powerline Insulators in Distribution Network?

Date:2025-01-15Tags:powerline insulators, Suspension power insulator, Composite electric insulator, Glass power insulator

What are the classifications of powerline insulators in distribution network design?

In distribution network design, powerline insulators are an important device used to support and isolate wires while providing electrical insulation. According to different classification methods, powerline insulators can be divided into a variety of types, each type has a specific role and application scenario.


1. According to the different application scenarios of powerline insulators, they can be divided into the following types:

01 Pin type power insulator

A pin type power insulator is a slender power insulator used to support or suspend the wire and form an electrical insulation component between the pole and the wire. Pin type powerline insulators play an important role in power transmission and distribution systems, ensuring the safety and reliability of power transmission.

02 Post type power insulator

A post power insulator is a short, thick power insulator used to support wires and provide electrical insulation. Generally used in township power lines (commonly known as: poles), wire insulators, can play an important role in overhead transmission lines.

03 Tighten the power insulator

Tension power insulator is a special power insulator, used to support the cable and isolate the different voltage of the wire, is applied to the power transmission and distribution line of the auxiliary equipment, mainly used in the ground line, cable and other places to withstand the tension of the wire, to ensure the normal operation of the power system.

04 Suspension power insulator

It is generally made of insulating parts (such as porcelain parts, glass parts, etc.) and metal accessories (such as steel feet, iron caps, flanges, etc.) glued with adhesive or mechanical card. In the design of distribution network, it is mostly used for tensile insulation.

2. According to the different materials of powerline insulators, they can be divided into the following types:

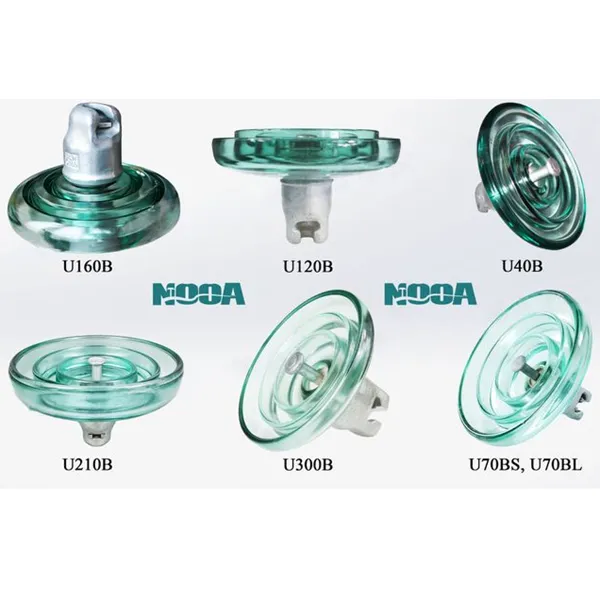

01 Glass power insulator

Glass power insulator is a kind of power insulator made of glass, which has excellent electrical properties and weather resistance. They are commonly used to support high voltage wires and are suitable for a variety of climatic conditions.

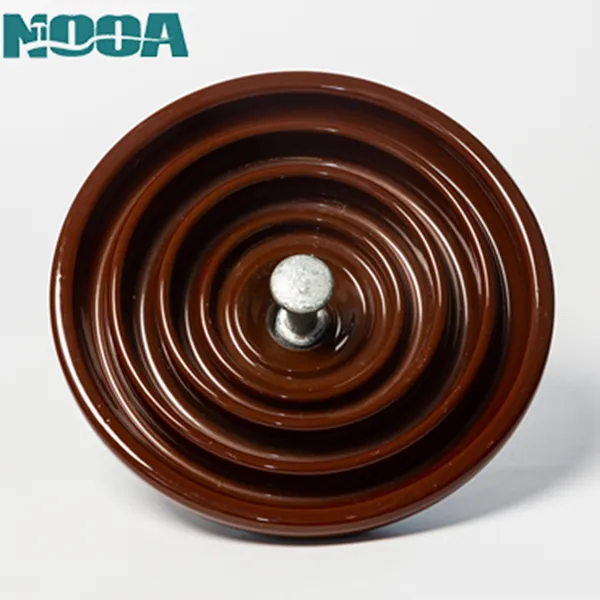

02 Porcelain insulator

Porcelain insulator (Ceramic powerline insulators) are powerline insulators made of ceramic materials with high mechanical strength and good electrical properties. They are commonly used to support medium voltage wires and perform well in high temperatures and harsh climate conditions.

03 Composite electric insulator

Composite powerline insulators are powerline insulators made of materials such as resin and ceramics, which have excellent electrical properties and mechanical strength. They are commonly used to support low-voltage wires and perform well in a variety of climatic conditions.

What are the properties and functions of powerline insulators in distribution network design?

Power insulator plays a very important role in the design of distribution network, and its performance stability directly affects the safety and reliability of line operation.


01 Electrical Performance

The electrical properties of powerline insulators are insulation resistance. The size of insulation resistance directly affects the leakage of current on the power insulator, and then affects the insulation effect of the system. If the insulation resistance of the power insulator is low, the leakage current will increase, which may lead to the generation of electric arcs, and may even cause short circuit accidents in serious cases. Therefore, the electrical performance of powerline insulators needs to be rigorously tested and evaluated to ensure that they can meet the insulation requirements of the system.

02 Mechanical Properties

In addition to electrical properties, powerline insulators also need to have certain mechanical properties. In the design of the distribution network, powerline insulators need to withstand various mechanical stresses in the natural environment, such as the stress caused by natural disasters such as wind, rain, snow, and earthquakes. In addition, powerline insulators also need to withstand artificial mechanical stress during installation and maintenance. Therefore, the mechanical properties of powerline insulators must be fully considered and evaluated to ensure their stability and reliability under various stresses.

03 Environmental Adaptability

Because lines are usually exposed to the natural environment, powerline insulators need to be able to adapt to a variety of natural conditions, such as high temperature, low temperature, wet, dry, pollution, etc. In these environments, the performance of powerline insulators may be affected, such as aging, cracking and other problems. Therefore, it is necessary to fully consider and evaluate the environmental adaptability of powerline insulators to ensure that they can operate stably under various natural conditions.

What are the typical application scenarios of powerline insulators in power systems?

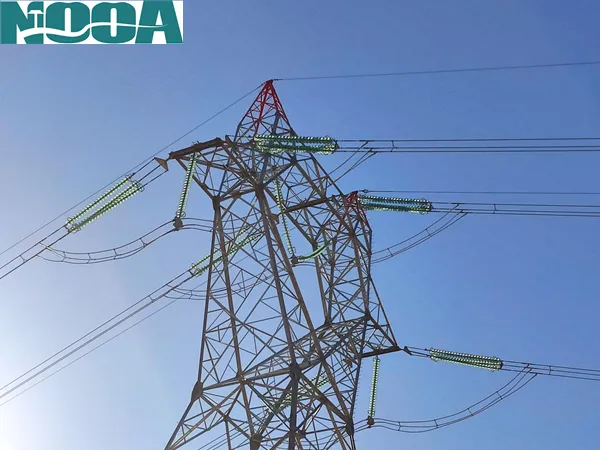

01 Transmission Lines

Transmission lines are an important part of the power system, and powerline insulators are used to support wires and fixtures, and ensure their electrical insulation performance.

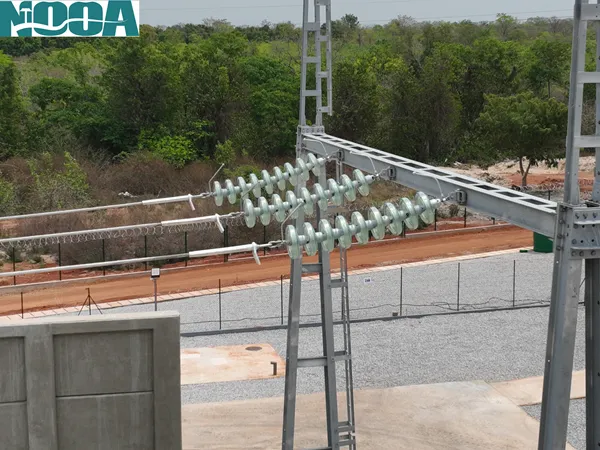

02 Substation

Substation is an important link in the power system for voltage conversion and power distribution. powerline insulators are used to support transformers, circuit breakers and other equipment, and ensure their electrical insulation performance.

03 Power Distribution System

The power distribution system is the terminal link that distributes electric energy to the user, and the power insulator is used to support the overhead line, cable and other equipment, and ensure its electrical insulation performance.

04 Power Equipment

Power equipment such as motors, generators, etc., need to use powerline insulators to ensure their electrical insulation performance, to avoid equipment failures and personal safety accidents.

05 New energy field

In the field of solar energy, wind energy and other new energy, powerline insulators are used to support solar panels, wind turbines and other equipment, and to ensure their electrical insulation performance.

In short, powerline insulators have a wide range of applications in power systems, and play an important role in ensuring the safe and stable operation of power systems. When selecting and using powerline insulators, factors such as their voltage rating, mechanical strength, and environmental adaptability should be fully considered to ensure their performance and reliability.
