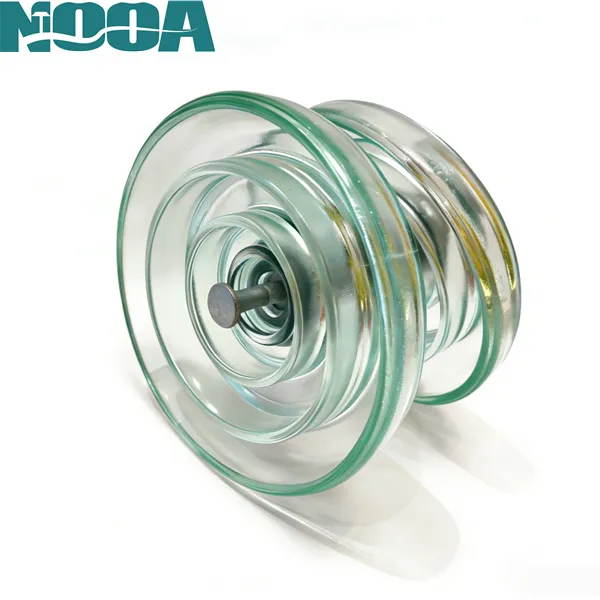

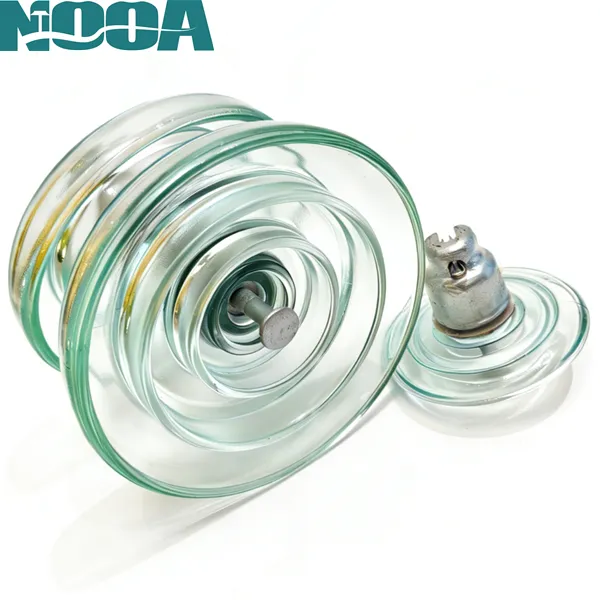

U70B Disc Suspension Toughened Glass Insulators
U70B Disc Suspension Toughened Glass Insulators
U70B Disc Suspension Toughened Glass Insulators

U70B Disc Suspension Toughened Glass Insulators

146/255/320 U70B Disc Suspension Toughened Glass Insulators adapt to diverse conditions: standard types suit clean regions (plains, rural areas), with series connection meeting 110kV, 220kV, and higher voltage levels; anti-pollution types with extended creepage paths are used in heavily polluted zones (industrial dust, coastal salt fog) to enhance pollution flashover resistance. Its lightweight, high-strength design also extends to electrified railway catenaries and substation insulators, supporting stable power and rail transport.
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ

U70B Disc Suspension Toughened Glass Insulators

U70B Disc Suspension Toughened Glass Insulators uses high-strength toughened glass as the insulating core, paired with precision metal fittings, to deliver dual functions of electrical insulation and mechanical load-bearing. With a rated mechanical failing load of 70kN, it stably withstands complex stresses such as conductor tension, ice loads, and wind impacts, operating reliably in extreme environments including frigid, humid, lightning-prone, and heavily polluted areas.

Compliant with the international IEC 60383 standard, it features a unique zero-value self-breaking property: when insulation fails, the glass disc shatters automatically, allowing operators to quickly identify faults from the ground, significantly reducing inspection costs and outage risks. Additionally, its glass surface offers excellent resistance to arc burns, maintaining mechanical strength and insulation after lightning strikes to minimize downtime.

Compared to porcelain insulators, U70B glass insulators offer longer service life, lower maintenance costs, and higher reliability, making them the preferred choice for upgrading and new high-voltage transmission projects, especially in EHV and UHV grids. Its smooth glass surface also enables excellent self-cleaning via wind and rain, reducing dirt accumulation.

Disc Glass Insulator Exhibitions & Clients

33kV glass electrical insulators Russia exhibitionGlass Insulators

Why Choose Nooa Electric

*High Mechanical Strength: 70kN rated failing load, withstands tension, ice, and wind impacts.
*IEC 60383 Compliant: Meets international quality and safety standards.
*Zero-Value Self-Breaking: Enables quick fault detection, reducing outage risks.
*Arc & Pollution Resistance: Excellent arc burn tolerance; smooth glass surface for self-cleaning.
*Factory & Tech Advantages: ISO9001 certified, advanced R&D, and strict quality control.

FAQ for U70B Glass Insulators

Q1: What's the mechanical failing load of U70B? Does it meet IEC/GB standards?

A: Rated 70kN, compliant with IEC 60383 & GB/T 10007. Test reports available.


Q2: Applicable voltage range? Can it be used for EHV above 35kV?
A: For 35kV+ overhead lines, covers EHV AC/DC applications.


Q3: Advantages over porcelain insulators in anti-pollution & anti-aging?

A: 15%-20% higher pollution flashover voltage, no degradation/cracking, longer lifespan.

Q4: Can U70B be mixed with U100B/FC series in a string?
A: Not recommended. Causes uneven stress & field distortion, endangering line safety.

Company profile

Who We Are?

Nooa Electric Co., Ltd. - Chinese professional electrical insulators manufacturer with 21+ experience, covering an area of 70,000 square meters, and construction area is 50,000 square meters. There are more than 200 employees, including 25 technicians. The production capacity 3500000 pieces per year, and now setting up the new kiln and lines up to 10500000 pieces per year. We have been specialized in research and development of latest high-strength functional glass and power transmission insulators, which is the qualified supplier for State Grid Corporation of China and Southern State Grid Corporation of China, and is a participating unit of product standard formulation of the national electrical insulator standard committee.


What We Have?

Certificates & Reports: INTERTK, SGS, BV Certificates,Type Test Certificate.

Main Electric Insulators : Standard-type glass insulator (u40(ctv175)/u70(ctv254, ps70e)/u120/u160/u210/u300) , antipollution-type glass insulators (u120bp/u160bsp/u210bp), aerodynamic type glass electrical insulators (ug70bsa/u100bsa/u120bla), multi-umbrella type electric insulators, ground-wires type glass power line insulators (u70cn/u100cn/u120c), post insulator for line, pin glass insulator. Products are mainly used for transmission line insulation, suspension, support, tension conductors. They are divided into 5 major series: The standard type glass insulator 40-550kn, filth-resistant type glass insulators 70-420kn, aerodynamic type glass electrical insulators 120-300kn, multi-umbrella type electric insulators 120-300kn, and ground circuit type high voltage insulators, able to be used for line voltage from 10kv～1000kv.


Core Technology:

Automation Equipment: Siemens fully automatic feeding, stamping, temperature equalization, tempering, hot and cold shock control system.
Independent Product Model: U160BP/146/380/450, U160BP/155/380/450, U210BP/170/420/550 and U300BP/195/420/550.
Advanced Klin: Germany's new generation kiln control system, equipped with brand-new sensors and actuators, and equipped with a high-precision automatic batching system.
Qualification: Passed the quality, environment and occupational health system certification and obtained a number of invention patents.


Goal:

To be the world's largest glass insulators manufacturer.

Electric Insulators Certificates

Are u the electric insulators factory or trading company?
China Leading Electric Insulators Factory founded in 2002
What're your main power insulators?
Powerline Electric Insulators (glass insulators, porcelain insulators, composite insulators ), the fittings and hardwares of all kinds for high-voltage applications and related products.
Can I get some glass insulators samples?
Yes, powerline glass insulator sample order is available for quality check and market test.
What's your payment terms?
We usually accept all kinds of payment terms, T/T, L/C, Western Union.
How can you control your glass power line insulator quality?
For each glass insulator production processing, we have a complete QC system for the chemical composition, physical and electrical properties. After production, all glass power line insulators will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
Does your company accept customization?
We accept OEM service.
What's your warranty terms?
We offer 24 months warranty terms.
Do you have glass electrical insulators in stock?
Depends on your request, we have standard models (CTV254 & CTV175, U40B U70B U120B U160BL U240B U300B ) in stock. Some special product and big order will be newly produced according to your order.
