U100C Ground Wire Type Toughened Glass Insulator is a high-strength, durable insulator specifically designed for grounding applications in high-voltage transmission and distribution systems. U100C model is well-suited for regions with harsh environmental conditions, ensuring reliable support and insulation for ground wires while preventing power losses and equipment damage.
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ

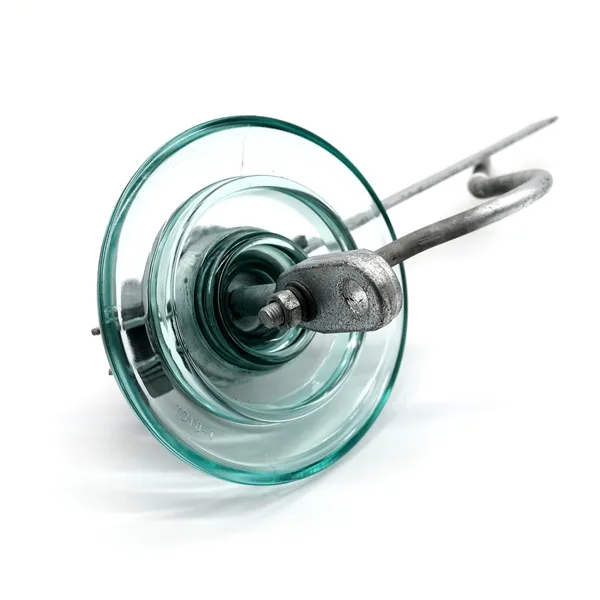

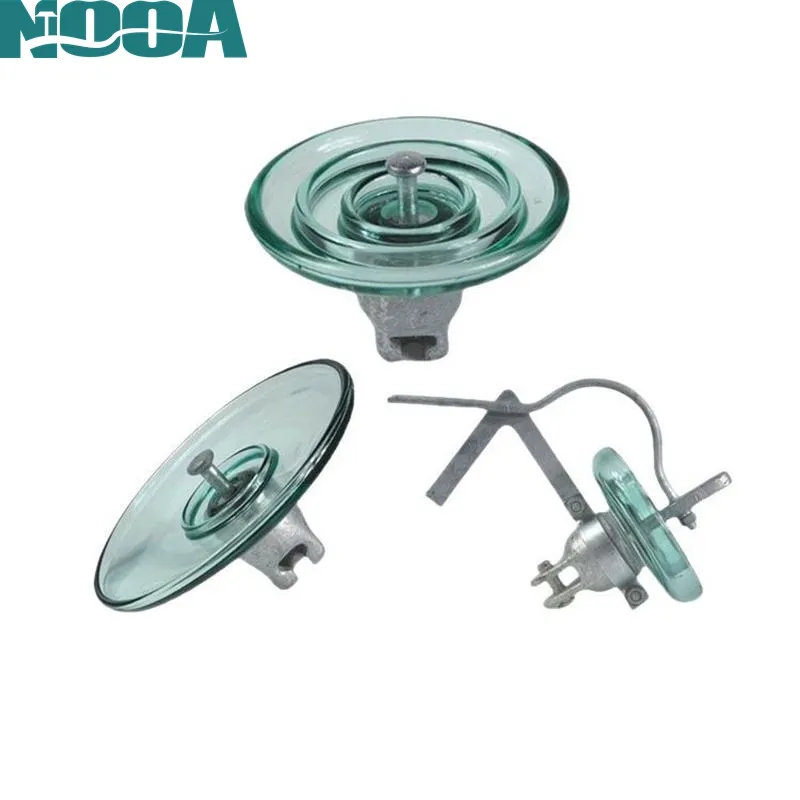

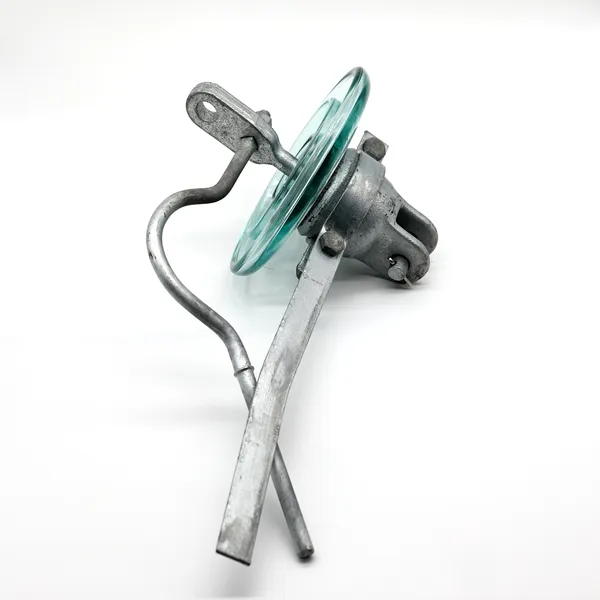

The U100C Ground Wire Type Toughened Glass Insulator is a high-strength, durable insulator specifically designed for grounding applications in high-voltage transmission and distribution systems. Made from toughened glass, this insulator provides excellent mechanical and electrical performance under demanding conditions. Suitable for both industrial environments and rural distribution networks where environmental durability is a priority.

basic type minimum mechanical failing load(kn) nominal diameter d(mm) nominal spacing p(mm) nominal creepage distance (mm) standard coupling suspending modes power frenquency dischasrge voltage with gap distance 20mm (kv) extinguished arc current at power frenquency refresh voltage 2500v with gap distance 15mm (A) electrode performance of withstand arc current (min) net weight (kg)
max min inductance current capacitance current power frequency current (ka) time (s) frequency

u70c


70 200 210 220 16c suspension 30 8 35 20 10 0.2 2 4.5

u70cn


70 200 210 220 16c tension 30 8 35 20 10 0.2 2 4.5

u100c


100 200 210 220 16c suspension 30 8 35 20 10 0.2 2 4.5

u100cn


100 200 210 220 16c tension 30 8 35 20 10 0.2 2 4.5

u120c


200 200 210 220 16c suspension 30 8 35 20 10 0.2 2 4.5

u120cn


200 200 210 220 16c tension 30 8 35 20 10 0.2 2 4.5

U100C Ground Wire Type Toughened Glass Insulator

High Mechanical Strength: Engineered to withstand significant mechanical stress, making it ideal for high-voltage transmission lines and other heavy-duty applications.
Toughened Glass Composition: Thermally treated to enhance impact resistance, providing superior durability and extending the lifespan of the insulator in various environmental conditions.
Reliable High-Voltage Insulation: Designed to offer strong dielectric strength, the U100C insulator effectively prevents electrical faults, making it essential for stable power transmission.
Shatter-Resistant Design: If broken, the toughened glass shatters into small, blunt pieces to minimize safety risks.
Environmental and Corrosion Resistance: Resistant to UV exposure, rain, snow, and pollution, ensuring long-lasting performance and minimal maintenance.

U100C Ground Wire Type Toughened Glass Insulator's Applications

Reduced Electrical Losses: High dielectric properties minimize leakage currents, leading to more efficient power distribution.
Enhanced Safety: The toughened glass design is shatter-resistant, reducing the risk of injuries and equipment damage in case of accidental impact or overload.
Cost Efficiency: With its long lifespan and low maintenance needs, the U100C offers a cost-effective solution for grounding applications in high-voltage environments.
Adaptability to Harsh Environments: Performs well in diverse conditions, including coastal and industrial areas where high humidity or pollution may challenge standard insulators.

Glass Insulator Test & Packing:

U70C Ground Wire Glass Insulator

CTV254 glass insulator Factory

Government Official Visit:

HV Glass Insulator Projects:

Glass Insulator Equipments:

U120B Electric Glass Insulators

Why Buy Glass Insulators from NOOA Electric?

Nooa Electric Co., Ltd. is a notable manufacturer of full range of Electrical Insulators. The company specializes in the production of various types of glass insulators, including Standard Type, AntipollutionType, Fog Type Glass Insulator, OUTERIB Glass Power Line Insulators, D.C Glass Disc Insulator and aerodynamic types. With over 22 years of experience, Nooa Electric has established itself as a qualified supplier for major power corporations in China and emphasizes quality through advanced manufacturing processes and rigorous testing standards.


1. Chinese Professional Electrical Insulators Manufacturer With A Complete Range Of Glass Insulators, Porcelain Insulators And Composite Insulators

2. Over 22-year R&d and Production Experience in Glass Insulators with 70000 sqm Factory, more than 200 employees, including 25 technicians

3. Provide Full Range of Electrical Glass Insulators: 40-550kN, 70-300kN, 70-240kN With Free Drawings & Approved Type Test Report.

4. INTERTEK, SGS, BV, etc. Any Third Party Inspection Before Delivery Is Available

5. Negotiable Payment Term & Bulk Stock With Fast Delivery（Ship in 1 Month）

6. Test Center For Glass Insulator. Inquire Now: info@nooaelectric.com, whatsapp: +86 15274981317

Company profile

Who We Are?

Nooa Electric Co., Ltd. - Chinese professional electrical insulators manufacturer with 21+ experience, covering an area of 70,000 square meters, and construction area is 50,000 square meters. There are more than 200 employees, including 25 technicians. The production capacity 3500000 pieces per year, and now setting up the new kiln and lines up to 10500000 pieces per year. We have been specialized in research and development of latest high-strength functional glass and power transmission insulators, which is the qualified supplier for State Grid Corporation of China and Southern State Grid Corporation of China, and is a participating unit of product standard formulation of the national electrical insulator standard committee.


What We Have?

Certificates & Reports: INTERTK, SGS, BV Certificates,Type Test Certificate.

Main Electric Insulators : Standard-type glass insulator (u40(ctv175)/u70(ctv254, ps70e)/u120/u160/u210/u300) , antipollution-type glass insulators (u120bp/u160bsp/u210bp), aerodynamic type glass electrical insulators (ug70bsa/u100bsa/u120bla), multi-umbrella type electric insulators, ground-wires type glass power line insulators (u70cn/u100cn/u120c), post insulator for line, pin glass insulator. Products are mainly used for transmission line insulation, suspension, support, tension conductors. They are divided into 5 major series: The standard type glass insulator 40-550kn, filth-resistant type glass insulators 70-420kn, aerodynamic type glass electrical insulators 120-300kn, multi-umbrella type electric insulators 120-300kn, and ground circuit type high voltage insulators, able to be used for line voltage from 10kv～1000kv.


Core Technology:

Automation Equipment: Siemens fully automatic feeding, stamping, temperature equalization, tempering, hot and cold shock control system.
Independent Product Model: U160BP/146/380/450, U160BP/155/380/450, U210BP/170/420/550 and U300BP/195/420/550.
Advanced Klin: Germany's new generation kiln control system, equipped with brand-new sensors and actuators, and equipped with a high-precision automatic batching system.
Qualification: Passed the quality, environment and occupational health system certification and obtained a number of invention patents.


Goal:

To be the world's largest glass insulators manufacturer.

Electric Insulators Certificates

Are u the electric insulators factory or trading company?
China Leading Electric Insulators Factory founded in 2002
What're your main power insulators?
Powerline Electric Insulators (glass insulators, porcelain insulators, composite insulators ), the fittings and hardwares of all kinds for high-voltage applications and related products.
Can I get some glass insulators samples?
Yes, powerline glass insulator sample order is available for quality check and market test.
What's your payment terms?
We usually accept all kinds of payment terms, T/T, L/C, Western Union.
How can you control your glass power line insulator quality?
For each glass insulator production processing, we have a complete QC system for the chemical composition, physical and electrical properties. After production, all glass power line insulators will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
Does your company accept customization?
We accept OEM service.
What's your warranty terms?
We offer 24 months warranty terms.
Do you have glass electrical insulators in stock?
Depends on your request, we have standard models (CTV254 & CTV175, U40B U70B U120B U160BL U240B U300B ) in stock. Some special product and big order will be newly produced according to your order.
