Substations Surge Arrester

A substation surge arrester protects critical equipment by limiting overvoltage and diverting surge current.

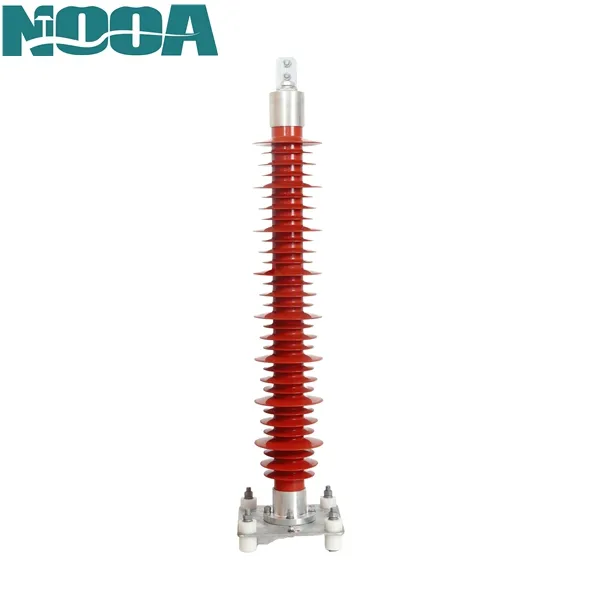

substation surge arrester is a high-performance protective device installed in substations to safeguard equipment such as transformers, circuit breakers, busbars, and GIS systems. It operates by limiting transient overvoltages and providing a controlled path for surge currents to flow into the ground.

It rapidly switches to a conductive state during surges and returns to insulation afterward.

Working process:

1.Normal operation: High resistance, negligible leakage current

2.Overvoltage event: Resistance drops instantly

3.Surge discharge: High current flows safely to ground

4.Recovery: Returns to high resistance state

This fast and automatic response ensures continuous protection without interrupting system operation.

Installed to protect transformers, switchgear, busbars, and cable systems.

Substation surge arresters are strategically placed to protect:

• Power transformers (most critical assets)

• Circuit breakers and switchgear

• Busbars and feeder systems

• Cable terminations and GIS equipment

Proper placement is essential to ensure effective voltage limitation and coordinated insulation protection.

They enhance system reliability, reduce failures, and protect high-value assets.

Key benefits include:

1. Protection against lightning and switching surges
2. Reduced risk of equipment damage and outages
3. Improved reliability of power supply
4. Lower maintenance and replacement costs
5. Long service life with minimal intervention

With high-performance solutions from Nooa Electric, substations can operate more safely and efficiently even under extreme conditions.

Selection depends on system voltage, insulation level, environment, and energy requirements.

Key selection parameters:

• Rated voltage (Ur)

• Maximum continuous operating voltage (MCOV)

• Nominal discharge current (In)

• Energy absorption capability

• Temporary overvoltage (TOV) performance

• Environmental conditions (pollution, altitude, humidity)

Proper installation ensures maximum protection effectiveness.

Important factors include:

• Placement close to protected equipment

• Proper grounding system

• Short lead length to reduce residual voltage

• Regular inspection and monitoring

Incorrect installation can significantly reduce arrester effectiveness.

1. What is the difference between surge arrester and lightning arrester?

A surge arrester is a broader term that protects against all types of overvoltage, while a lightning arrester specifically targets lightning-induced surges.

2. What is a metal oxide surge arrester (MOV)?

It is a modern arrester using zinc oxide elements with non-linear resistance, offering fast response and high energy absorption.

3. Where should surge arresters be installed?

They are typically installed near critical equipment such as transformers, switchgear, and along transmission or distribution lines.

4. Why is surge protection important in power systems?

Without surge protection, voltage spikes can cause equipment failure, outages, and significant financial losses.

5. What is the difference between station class and distribution class arresters?

Station class arresters handle higher energy and are used in substations, while distribution arresters are used in lower voltage networks.
