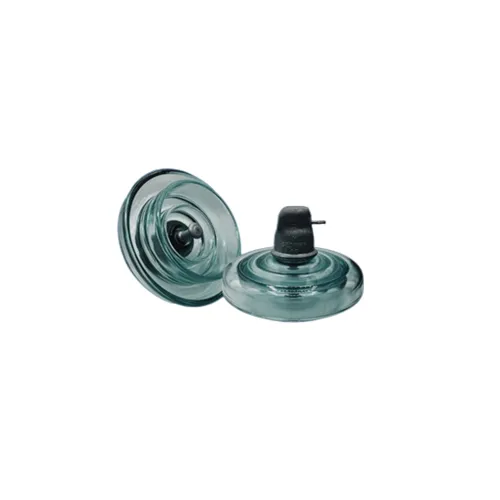

HVDC Glass Insulator

HVDC glass insulators are suspension insulators designed for DC transmission lines, optimized to handle unique electric field and pollution conditions.

HVDC (High Voltage Direct Current) glass insulators are used in transmission systems where electricity flows in a constant direction, unlike AC systems. These insulators are specially designed to:

• Manage non-uniform electric field distribution
• Resist electrochemical degradation
• Perform reliably under continuous DC stress

They are widely applied in:

• ±500kV, ±800kV, and UHVDC transmission lines
• Long-distance bulk power transmission
• Renewable energy integration (hydro, solar, wind)

HVDC Glass Insulator with High mechanical strength, superior pollution resistance, and excellent durability under DC stress.

1. High Mechanical Strength

• Made from toughened (tempered) glass
• Typical mechanical ratings: 120kN – 550kN
• Suitable for heavy-load transmission towers

2. Excellent Pollution Performance

• Smooth glass surface enables natural self-cleaning
• Resistant to dust, salt fog, and industrial contamination
• Ideal for coastal, desert, and polluted environments

3. Optimized for DC Electric Field

• Special design reduces electric field concentration
• Minimizes ion migration and surface charge accumulation

4. Zero Aging & Visual Inspection Advantage

• Glass insulators do not age like polymer types
• Failures are visible (self-shattering), ensuring easy detection

5. High Dielectric Strength

• Excellent insulation performance under continuous DC voltage
• Stable performance in extreme climates

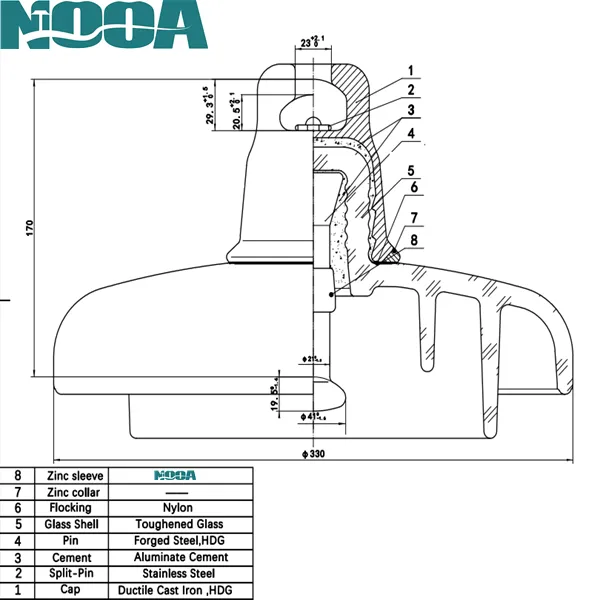

HVDC insulators offer high creepage distance, strong mechanical load capacity, and IEC-compliant performance.

Typical parameters include:

• Standard: IEC 60383, IEC 61109, IEC 60815
• Mechanical Strength: 120kN / 160kN / 210kN / 300kN / 420kN / 550kN
• Creepage Distance: Up to 550 mm or higher (depending on pollution level)
• Diameter: 255 mm – 380 mm
• Spacing: 140 mm – 205 mm
• Applicable Voltage: ±400kV to ±1100kV

Used in ultra-high voltage DC transmission, renewable energy projects, and cross-border power grids.

• UHVDC transmission lines (±800kV, ±1100kV)
• Hydropower transmission projects
• Wind and solar farm grid connections
• Cross-country and cross-continent interconnections
• Desert and coastal transmission corridors

In Nooa Electric, HVDC glass insulators are engineered to meet the most demanding transmission requirements and customized requirements are available:

• Advanced toughened glass manufacturing technology
• Full compliance with IEC standards
• Strict mechanical and electrical testing
• Custom design for project-specific conditions
• Export experience across Asia, Africa, and Europe

1. Why is creepage distance higher for HVDC insulators?

Because DC voltage causes continuous ion movement, leading to more pollution accumulation. Longer creepage distance helps prevent flashover.

2. Are glass insulators better than polymer for HVDC?

Yes, Glass insulators offer:

• Better long-term stability
• No aging issues
• Easier inspection
