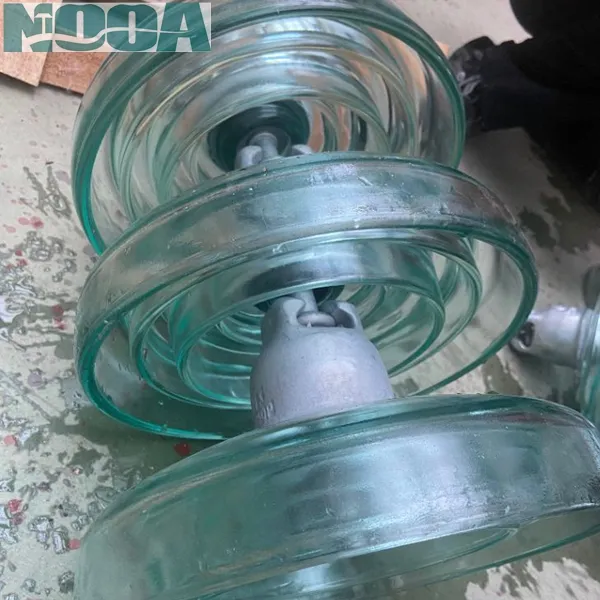

high voltage 160kn fog type anti-pollution suspension insulator is designed to resist the accumulation of pollution on its surface, particularly in high-voltage electrical systems where pollution buildup can lead to reduced performance and potential electrical arcing
Inquiry Now
Send Email To Us
  • Product Details
  • Company
  • Product FAQ
160kN Fog Type Anti-Pollution Suspension Insulator is engineered for ultra-reliable performance in extreme environments, combining unparalleled mechanical strength (160 kN) with pollution-resistant design features like extended creepage and hydrophobic surfaces. Ideal for coastal, industrial, or fog-prone regions, it ensures stable operation of high-voltage transmission lines while minimizing flashover risks. While heavier and costlier than standard insulators, its durability and compliance with IEC/ANSI standards make it a critical component for modern power grids facing environmental challenges. Nooa Electric' s 160kN Fog Type Anti-Pollution Suspension Insulator is a high-strength insulator designed for overhead transmission lines in heavily polluted or humid environments prone to fog, salt spray, or industrial contamination.

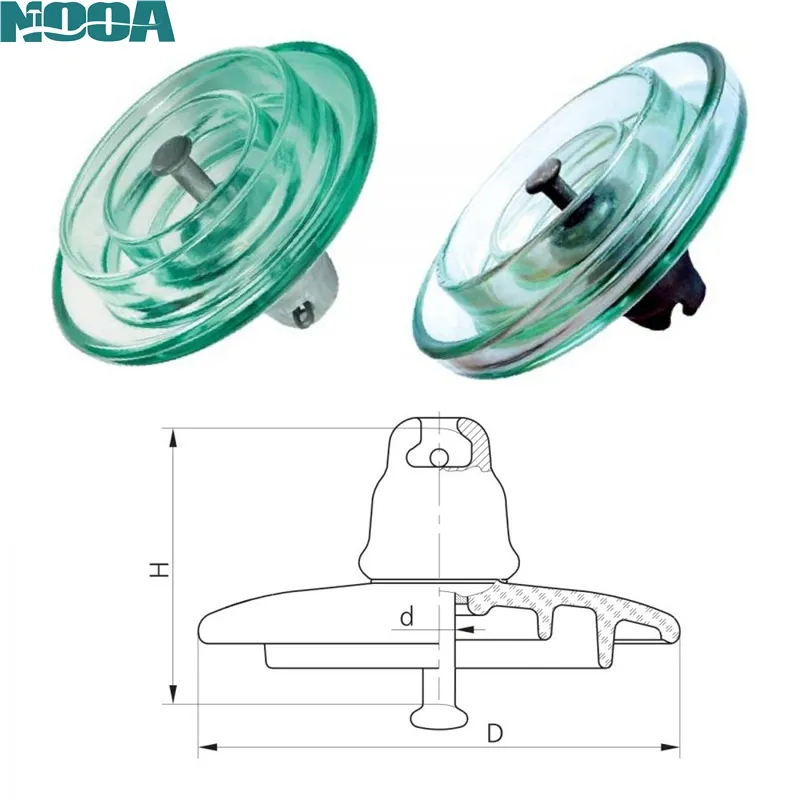

basic type figure no. minimum mechanical failing load(kn) nominal diameter d(mm) nominal spacing p(mm) nominal creepage distance (mm) standard coupling wet power frequency withstand voltage (kv) dry lightning impulse withstand voltage (kv) power frequency puncture voltage (kv) radio interference voltage (μ v) 10kv 1mhz corona visual test p/c kv power frequency electric arc voltage impulse puncture voltage (p.u) net weight (kg)
ug70b146/450h (u70blp) 4-6 70 280 146 450 16 50 125 130 50 18/22 0.12s/20ka 2.8 5.8
ug70b146/550h (u70blp1) 4-6 70 320 146 550 16 55 140 130 50 18/22 0.12s/20ka 2.8 9.2
ug100b146/450h (u100blp) 4-6 100 280 146 450 16 50 125 130 50 18/22 0.12s/20ka 2.8 5.8
ug100b146/550h (u100blp1) 4-6 100 320 146 550 16 55 140 130 50 18/22 0.12s/20ka 2.8 9.2
ug120b146/450h (u120blp) 4-6 120 280 146 450 16 50 125 130 50 18/22 0.12s/20ka 2.8 5.8
ug120b146/550h (u120blp1) 4-6 120 320 146 550 16 55 140 130 50 18/22 0.12s/20ka 2.8 9.2
ug160b155/450h（u160bmp） 4-6 160 280 155 450 20 50 125 130 50 18/22 0.12s/20ka 2.8 7.1
ug160b170/450h（u160mp1） 4-6 160 280 170 450 20 50 125 130 50 18/22 0.12s/20ka 2.8 7.2
ug160b170/550h（u160blp） 4-6 160 320 170 550 20 55 140 130 50 18/22 0.12s/20ka 2.8 9.6
ug160b155/550h（u160blp1） 4-6 160 320 155 550 20 55 140 130 50 18/22 0.12s/20ka 2.8 9.5
ug210b170/550h（u210bp） 4-6 210 320 170 550 20 55 140 130 50 18/22 0.12s/20ka 2.8 10.2
ug240b170/550h（u240bp） 4-6 240 320 170 550 20/24 55 140 130 50 18/22 0.12s/20ka 2.8 10.2
ug300b195/635h (u300bp) 4-6 300 380 195 635 24 60 155 130 50 18/22 0.12s/20ka 2.8 14.5
ug300b195/690h (u300bp1) 4-6 300 390 195 690 24 60 155 130 50 18/22 0.12s/20ka 2.8 15
ug300b195/550h (u300bp2) 4-6 300 340 195 550 24 55 140 130 50 18/22 0.12s/20ka 2.8 12.5
ug420b205/602h (u420bp) 4-6 420 300 205 620 28 55 140 140 50 18/22 0.12s/20ka 2.8 15.8

note:

1. the product model is in accordance with gb/t 7253-2005 and jb/t 9683-2012 (iec60305:1995, mod). the 420kn strength grade product contains 400kn strength grade, and the 550kn strength grade product contains 530kn strength grade.

2. the connection structure is in accordance with gb/t 4056-2008 (iec60120: 1984, mod) and bs 3288 part.

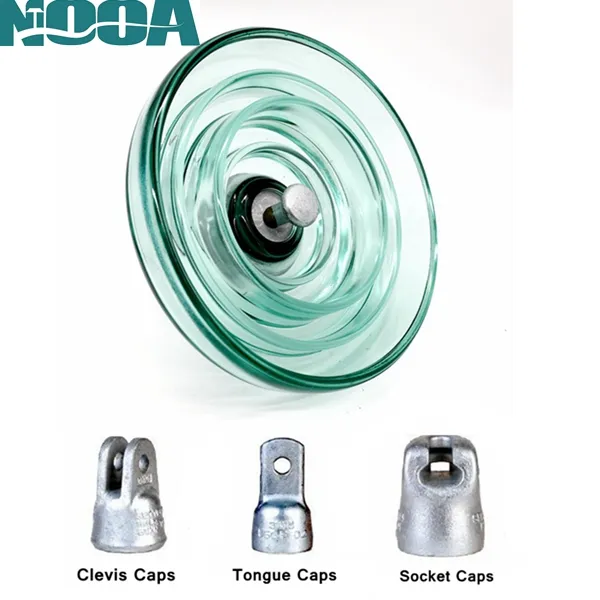

3. according to the customer's request, the locking pin can be w-pin or r-pin. unless otherwise specified, u70~u120 adopts w pin, and other uses r pin.
