cap and pin type suspension insulator details
a cap and pin type suspension insulator is a type of insulator commonly used in high-voltage electrical transmission and distribution systems. the insulator is typically composed of a series of porcelain or glass discs arranged in a stack and connected by a metal pin and cap at each end.

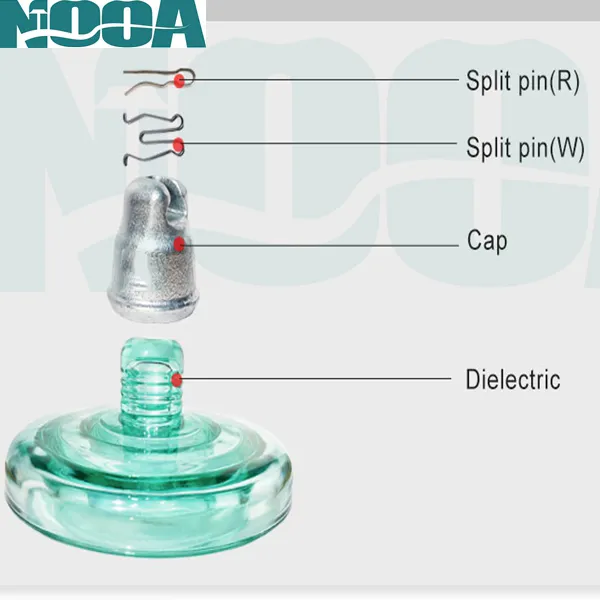

let's know more details about the components together:
1.cap: the upper part of the insulator is called the cap. it is usually a metal component that provides a connection point for the overhead line or conductor.
2.pin: the lower part of the insulator is called the pin. it is also a metal component that supports the insulator and connects it to the crossarm or other supporting structure on the transmission tower.
3.discs: the insulator's main body consists of several porcelain or glass discs. these discs are stacked on top of each other and separated by metal fittings. the purpose of the discs is to provide electrical insulation and prevent the flow of current from the conductor to the tower or ground.
cap and pin insulators are designed to suspend the electrical conductor, such as a power line, while providing effective insulation against the high voltage carried by the line. the cap and pin design allows for easy installation and replacement of insulators on transmission towers. this type of suspension insulator is widely used in power distribution systems and is known for its reliability and durability in harsh environmental conditions.
the design helps in distributing the electrical stress evenly across the surface of the insulator, preventing electrical breakdown and ensuring the effective insulation of the power line.
Types of Cap and Pin Suspension Insulators
The most common types are glass and porcelain cap and pin suspension insulators.

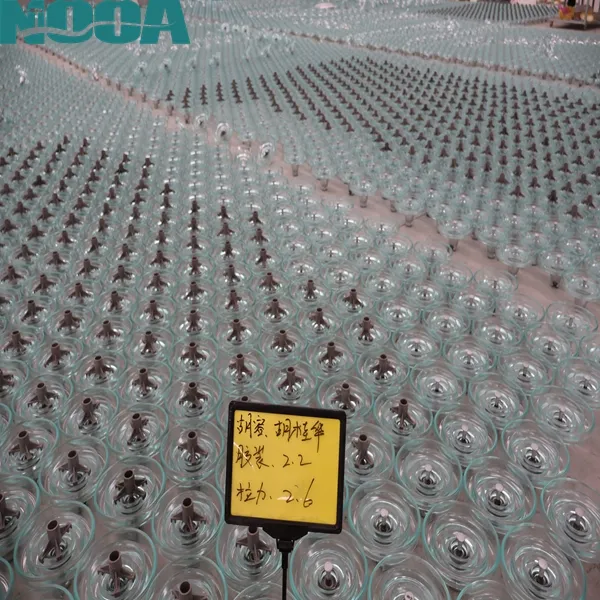

1.Toughened Glass Cap and Pin Insulators
Glass insulators have become increasingly popular because of their:
High dielectric strength
Excellent aging resistance
Smooth surface
Easy visual inspection
One significant advantage is self-shattering upon failure, allowing maintenance personnel to identify defective units quickly.
Manufacturers such as Nooa Electric supply IEC-compliant toughened glass cap and pin suspension insulators for transmission projects worldwide.

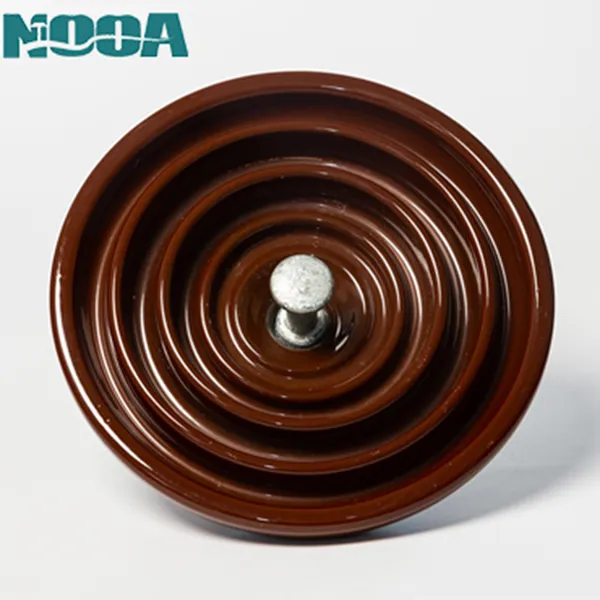

2.Porcelain Cap and Pin Insulators
Porcelain insulators continue to be widely used due to:
Proven reliability
Strong mechanical performance
Extensive utility acceptance
Many existing transmission networks still rely on porcelain cap and pin strings.
Advantages of Cap and Pin Suspension Insulators
They offer high mechanical strength, scalability, ease of maintenance, and long service life.
1.High Mechanical Strength
Cap and pin insulators are available with mechanical ratings suitable for:
Standard transmission lines
Long-span crossings
Heavy ice regions
Mountain transmission corridors
2.Excellent Electrical Performance
The disc profile increases:
Creepage distance
Wet flashover performance
Pollution resistance
3.Easy Transportation
Individual units can be packed efficiently and assembled on-site.
Applications of Cap and Pin Suspension Insulators
They are used in virtually all overhead transmission and distribution systems.
Typical applications include:
1.Utility Transmission Lines
Supporting conductors in:
66kV systems
132kV systems
220kV systems
400kV systems
2.Distribution Networks
Providing reliable insulation for medium-voltage overhead lines.
3.Renewable Energy Projects
Widely used in:
Solar farm transmission connections
Wind power evacuation lines
Hydropower transmission systems
4.Railway Electrification
Supporting overhead contact systems and feeder lines.
5.Industrial Power Infrastructure
Including:
Mining operations
Petrochemical plants
Manufacturing facilities
FAQ About Cap and Pin Type Suspension Insulators
1. What is a cap and pin suspension insulator?
It is a modular insulator consisting of a metal cap, insulating disc, and steel pin used in overhead power lines.
2. Why are cap and pin insulators connected in strings?
Multiple units are connected to achieve the insulation level required for different voltage classes.
3. What materials are used for the insulating disc?
The disc is commonly made from toughened glass or porcelain.
4. What is the purpose of the metal cap?
The cap transfers mechanical loads and connects adjacent insulator units.
5. What is the purpose of the steel pin?
The pin supports tensile loads and forms the connection between insulator units.
6. What is the main advantage of glass cap and pin insulators?
They provide visible failure indication through self-shattering of the glass shell.
7. What standards govern cap and pin insulators?
IEC 60383 is one of the most commonly referenced standards.
8. Can individual units be replaced?
Yes. One of the major advantages of cap and pin strings is easy replacement of damaged units.
9. Are cap and pin insulators suitable for extra-high-voltage lines?
Yes. They are widely used in transmission systems up to 765kV and beyond.
