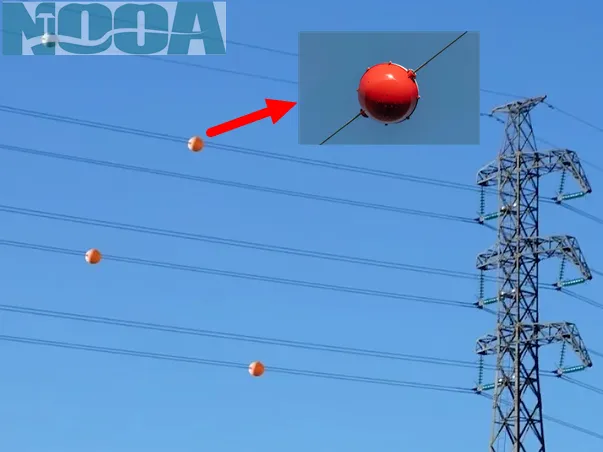

What is A Aircraft Warning Sphere?

An Aircraft Warning Sphere is a safety device designed to enhance the visibility of obstacles, such as power lines, communication towers, or other tall structures, to low-flying aircraft. Here's a detailed overview:

Purpose:

To prevent collisions by making obstacles more visible to pilots, particularly in areas where structures blend into the background (e.g., against mountains or skies).

Design:
Shape: Spherical to ensure 360-degree visibility from all angles.
Color: Bright, high-contrast colors like aviation orange, red, or white, often in alternating bands for maximum visibility.
Material: Durable, weather-resistant materials such as plastic, fiberglass, or polyurethane, often UV-stabilized to prevent fading.
Reflectivity: May include reflective coatings or markers for nighttime visibility.

Regulations:
Governed by aviation authorities (e.g., FAA in the U.S., ICAO internationally) specifying size, spacing, and placement. For example, the FAA mandates spheres with a minimum diameter of 36 inches (91 cm) on power lines near airports.

Installation:

Attached to power lines, towers, or other obstacles using clamps or brackets.

Spacing typically ranges from 30 to 200 feet (9–60 meters), depending on regulations and obstacle height.

Applications:
Common on power lines, communication towers, wind turbines, and construction cranes.
Especially critical near airports, helicopter routes, or in mountainous terrain.

Advantages:
Passive Safety: No power required, making them low-maintenance.
Cost-Effective: Long-lasting with minimal upkeep compared to active systems like strobe lights.

Considerations:
Environmental Durability: Designed to withstand harsh weather, UV exposure, and wildlife interference.
Global Use: Variations exist in color/size by region, but the core function remains consistent.

Alternatives:
Active systems (e.g., strobe lights) or flags, but spheres offer reliability without energy needs.

In summary, Aircraft Warning Spheres are vital for aviation safety, providing a simple yet effective way to mark obstacles and reduce collision risks. The Aircraft Warning Device (Sphere) is designed to make overhead lines visible to aircraft and provides a cost beneficial means of reducing the hazard to both lines and air traffic. This device is applied to the earthwire of Transmission systems.
