What Is The Structure Of U120B Glass Insulator?

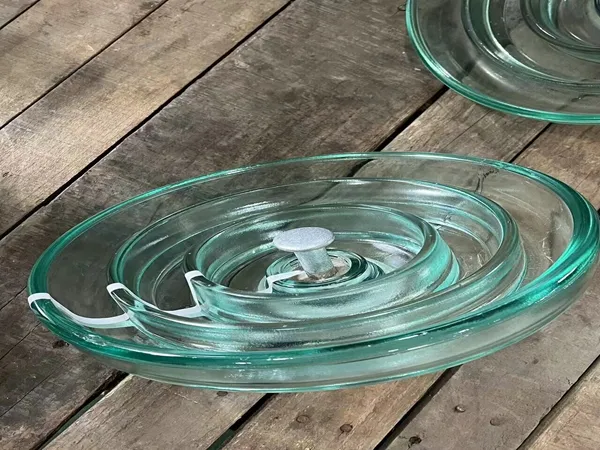

the u120b glass insulator typically has a multipart design composed of several key elements:

glass body: the main body of the insulator is typically made of high-quality tempered glass. this glass body is designed to provide electrical insulation and mechanical support to the conductor.

metal fittings: at each end of the insulator, there are metal fittings that are securely attached to the glass body. these fittings are usually made of materials such as aluminum or steel. they serve as attachment points for the conductor and for hardware used to connect the insulator to supporting structures such as transmission towers or poles.

cap and pin design: the u120b glass insulator often features a "cap and pin" design, where one end of the insulator has a cap and the other end has a pin. the cap typically has a concave shape to securely hold the conductor in place, while the pin fits into a corresponding socket on the supporting structure.

pettings or skirts: some glass insulators, including the u120b type, may have pettings or skirts attached to the bottom of the insulator. these pettings help to improve the insulator's performance by reducing the likelihood of flashover or electrical discharge along the surface of the insulator, especially in contaminated environments.

surface treatment: the surface of the glass insulator may be treated with special coatings or glazes to enhance its electrical and mechanical properties. these treatments can improve the insulator's resistance to environmental factors such as pollution, moisture, and uv radiation.

all in all, the structure of the u120b glass insulator is designed to provide reliable electrical insulation and mechanical support for overhead power transmission lines, ensuring the safe and efficient operation of electrical distribution systems.
