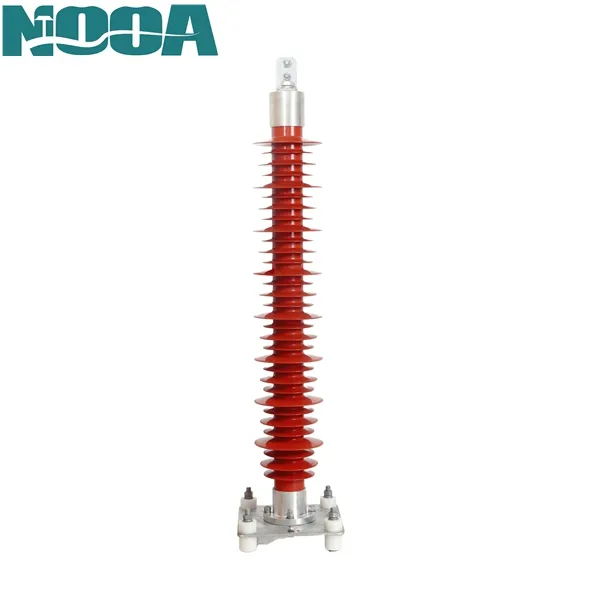

What Is a Lightning Arrester?
A lightning arrester, also known as a surge diverter or surge arrester, is a protective device used to safeguard electrical systems from the damaging effects of lightning strikes and voltage surges. It functions by providing a low-resistance path for excess voltage to be diverted safely to the ground, thereby protecting sensitive equipment from high-voltage transients.
How Does A Lightning Arrester Work?
1. Basic Operation: When a lightning strike or a surge occurs, the lightning arrester activates and creates a conductive path to the ground. This allows the surge current to bypass electrical equipment, preventing potential damage. Once the surge has passed, the arrester returns to its non-conductive state, ready for the next event.
2. Construction: Lightning arresters typically consist of one or more gaps or electrodes that are designed to break down at a specific voltage level. When the voltage exceeds this threshold, the gap ionizes and allows current to flow through it to the ground. Common materials used in modern arresters include metal oxide varistors (MOVs) and silicon carbide.
What Are the Different Classifications of Lightning Arresters?
1. By Application
Station Arresters: These provide the highest level of protection with lower discharge voltages and higher energy absorption capabilities. They are typically used in large substations and areas with high surge activity, operating at voltages ranging from 3 kV to 684 kV.
Intermediate Arresters: Designed for smaller substations and applications such as underground cable protection and dry-type transformers. They have moderate protective characteristics and are rated between 3 kV to 120 kV.
Distribution Arresters: These offer the lowest level of protection and are used primarily in medium voltage networks (typically less than 52 kV). They are suitable for protecting distribution transformers and associated equipment.
2. By Voltage Rating
Low-Voltage Surge Arresters: Rated under 1000 V, these devices provide surge protection for consumer applications and low-voltage distribution systems.
Medium-Voltage Surge Arresters: Typically rated between 3 kV and 30 kV, these arresters are used in power distribution systems to protect transformers and cables.
High-Voltage Surge Arresters: Also known as station-class arresters, these are used for voltages above 30 kV and provide robust protection for substation equipment.
3. By Construction Type
Metal Oxide Varistor (MOV) Arresters: Commonly used in modern surge protection devices, these arresters utilize metal oxide materials to absorb surges effectively.
Gapped Arresters: These include types like rod gap, sphere gap, and horn gap arresters, where an air gap is designed to ionize under high voltage conditions, diverting the surge to ground.
Valve Type Arresters: These utilize a valve mechanism to control the flow of current during a surge event, ensuring that excess voltage is safely redirected.

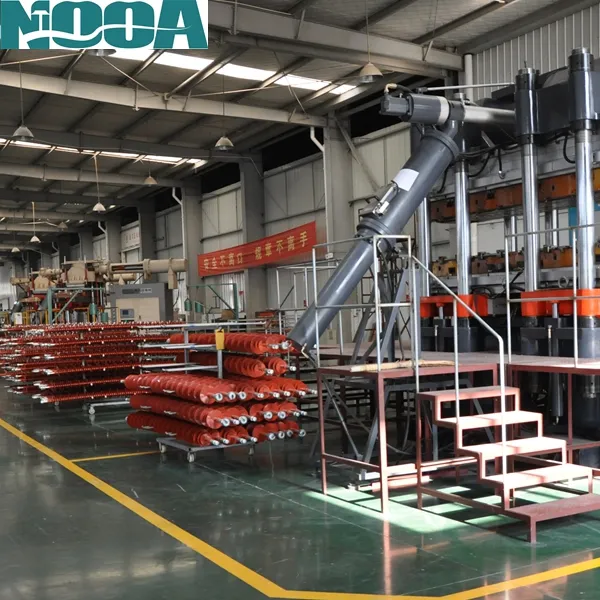

Main Components of a Lightning Arrester
Modern lightning arresters consist of a housing, metal oxide varistors, terminals, and sealing systems.
Metal Oxide Varistor (MOV)
The MOV block is the core protective element.
Functions include:
Voltage limitation
Surge energy absorption
Rapid switching between conductive and insulating states
Polymer or Porcelain Housing
Provides:
Electrical insulation
Mechanical protection
Environmental resistance
Line Terminal
Connects the arrester to the energized conductor.
Ground Terminal
Provides a low-impedance path to earth.
Pressure Relief Device
Protects against internal failure by safely venting excessive pressure.
What Causes Overvoltage in Power Systems?
Lightning strikes and switching operations are the primary sources of damaging overvoltages.
Direct Lightning Strikes
When lightning directly hits:
Transmission towers
Overhead conductors
Substation structures
Large surge currents are generated.
Induced Lightning Surges
Nearby lightning strikes can induce voltage surges through electromagnetic coupling.
Switching Surges
Generated during:
Circuit breaker operations
Capacitor bank switching
Transformer energization
Fault clearing
Temporary Overvoltages
Can occur due to:
Ground faults
Load rejection
Resonance conditions
Testing Requirements for Lightning Arresters
Lightning arresters undergo extensive electrical and mechanical testing before deployment.
Typical tests include:
1.Type Tests
Residual voltage test
Long-duration current impulse test
Operating duty test
Pressure relief test
2.Routine Tests
Leakage current measurement
Reference voltage verification
Visual inspection
3.Acceptance Tests
Dimensional inspection
Third-party verification
Factory witness testing
Applications of Lightning Arresters
Lightning arresters are used wherever critical electrical equipment requires surge protection.
Common applications include:
1.Transmission Lines
Protect:
Insulator strings
Conductors
Towers
2.Distribution Networks
Protect:
Pole-mounted transformers
Reclosers
Distribution switchgear
3.Substations
Protect:
Power transformers
Circuit breakers
Instrument transformers
4.Renewable Energy Projects
Protect:
Solar inverters
Wind turbine systems
Battery storage facilities
Benefits of Installing Lightning Arresters
Proper surge protection reduces equipment failures and improves network reliability.
Major advantages include:
Reduced outage frequency
Lower maintenance costs
Improved equipment lifespan
Enhanced grid reliability
Better asset protection
Reduced project lifecycle costs
Improved safety performance
For utility asset owners and EPC contractors, lightning arresters represent a relatively small investment that protects high-value electrical infrastructure.
FAQ for Lightning Arrester
1. What is the primary function of a lightning arrester?
A lightning arrester protects electrical equipment by diverting surge energy safely to the ground.
2. Is a lightning arrester the same as a surge arrester?
Yes. In modern power systems, the terms "lightning arrester" and "surge arrester" are often used interchangeably.
3. Where are lightning arresters installed?
They are installed on transmission lines, distribution poles, substations, transformers, and industrial electrical systems.
4. How does a lightning arrester protect transformers?
It limits incoming surge voltage and prevents insulation damage within the transformer.
5. What is a metal oxide surge arrester?
It is a modern arrester that uses zinc oxide MOV blocks to absorb and divert surge energy.
6. What causes overvoltage in power systems?
Lightning strikes, switching operations, fault clearing, and temporary system disturbances.
